Maintenance

Regular Maintenance

BATTERY MAINTENANCE

NOTE: This unit is equipped with a maintenance-free
BCIU1 battery.

Cleaning the Battery and Cables - Air
Cooled Models.

1. Remove the hydraulic oil reservoir mounting

hardware (C, Figure 24) and move the reservoir
(D) forward to expose the battery.

2. Disconnect the cables from the battery, negative

(black) cable first (B).

3. Clean the battery terminals and cable ends with a

wire brush until shiny.

4. Reinstall the battery and reattach the battery

cables, positive (red) cable first (A).

5. Coat the cable ends and battery terminals with

petroleum jelly or non-conducting grease.

6. Reposition the oil reservoir and secure in place

with the hardware previously removed.

Cleaning the Battery and Cables - Liquid
Cooled Models.

1. Raise the seat plate to expose the battery.
2. Disconnect the cables from the battery, negative

(black) cable first (B).

3. Clean the battery terminals and cable ends with a

wire brush until shiny.

4. Reinstall the battery and reattach the battery

cables, positive (red) cable first (A).

5. Coat the cable ends and battery terminals with

petroleum jelly or non-conducting grease.

6. Reposition the oil reservoir and secure in place

with the hardware previously removed.

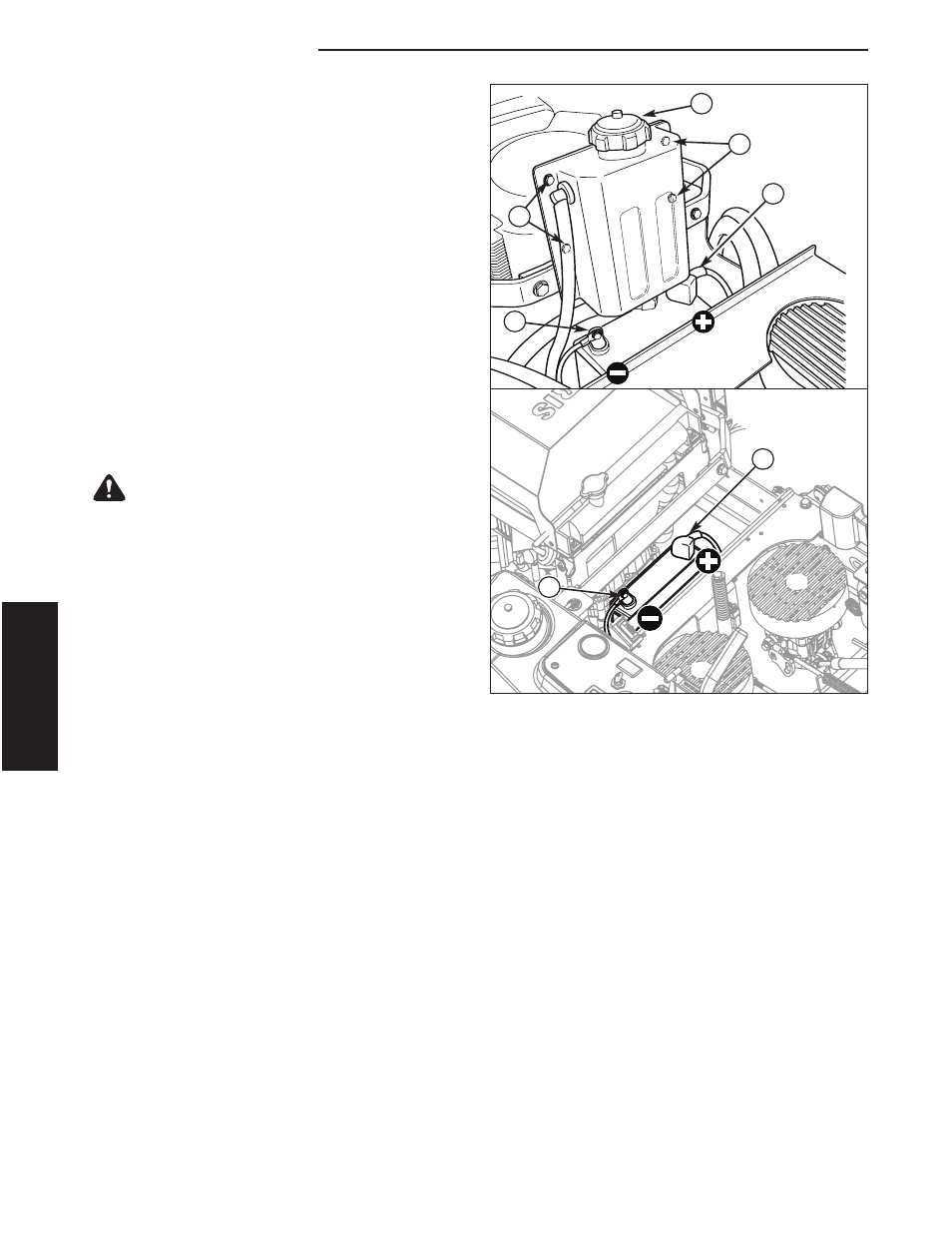

Figure 24. Battery Compartment
A. Positive (+) Cable & Terminal
B. Negative (-) Cable & Terminal
C. Reservoir Mounting Hardware
D. Hydraulic Oil Reservoir

WARNING

Be careful when handling the battery. Avoid
spilling electrolyte. Keep flames and sparks
away from the battery.

When removing or installing battery cables,
disconnect the negative cable FIRST and
reconnect it LAST. If not done in this order, the
positive terminal can be shorted to the frame by
a tool.

D

B

A

C

C

Air Cooled
Models

Liquid Cooled
Models

B

A
