EN Audio Core 200 User Guide EN

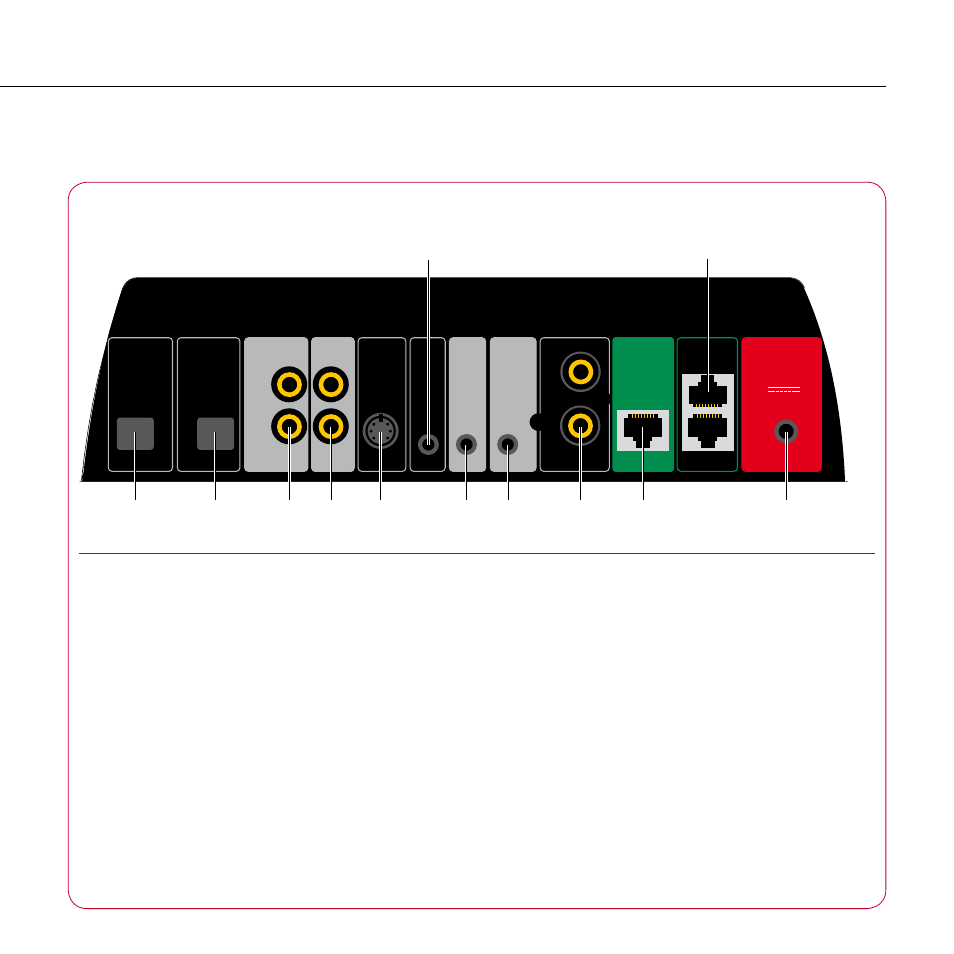

Back panel
The following diagram gives details of the back panel connections:
i80
Dock
SpeakerLink
In/SLS
SpeakerLink
Out
Slave
Master
Power in
12V DC
300mA MAX
D1 CD
D2 Sat/Radio
Aux
1
Disc
Opt
1
Game
Aux
2
Cable
Opt
2
DVD
Headphones
A2 Mixer Maintenance USB A1 TV
L
R
Meridian Audio Audio Core 200. Designed and made in England. Registered design and copyright © Meridian Audio Ltd 2010
Analogue
phono inputs
Digital
coax inputs
SpeakerLink
input
Power
input
i80
iPod dock
USB Maintenance Analogue/optical
inputs
Headphones
output
SpeakerLink
outputs
Outputs
Use this output To connect to this
SpeakerLink Out
Master, Slave Digital loudspeakers, such as DSP3200,
using Meridian SpeakerLink leads.
Headphones A pair of headphones, terminated with a
3.5mm jack plug.
Analogue inputs
Use this input To connect to this
A1 TV, A2 Mixer Analogue sources, using stereo phono
leads.
Aux 1, Aux 2 Analogue sources, using stereo leads
terminated in a 3.5mm mini jack plug.
Digital inputs
Use this input To connect to this
D1 CD, D2 Sat/Radio Digital sources, using S/PDIF leads.
SpeakerLink In/SLS A Meridian source or Sooloos system
with a SpeakerLink output, using a
Meridian SpeakerLink lead.
USB A computer, using a USB cable
terminated in a Type B plug, to use the
AC200 as an external sound card.
Opt 1 Game, Opt 2 DVD Digital sources, using optical cables
terminated in 3.5mm optical jack plugs
(same sockets as Aux 1 and Aux 2).
i80 Dock An iPod mounted in a Meridian i80 dock,
with control of the iPod from the AC200
front panel.
