– 12 –

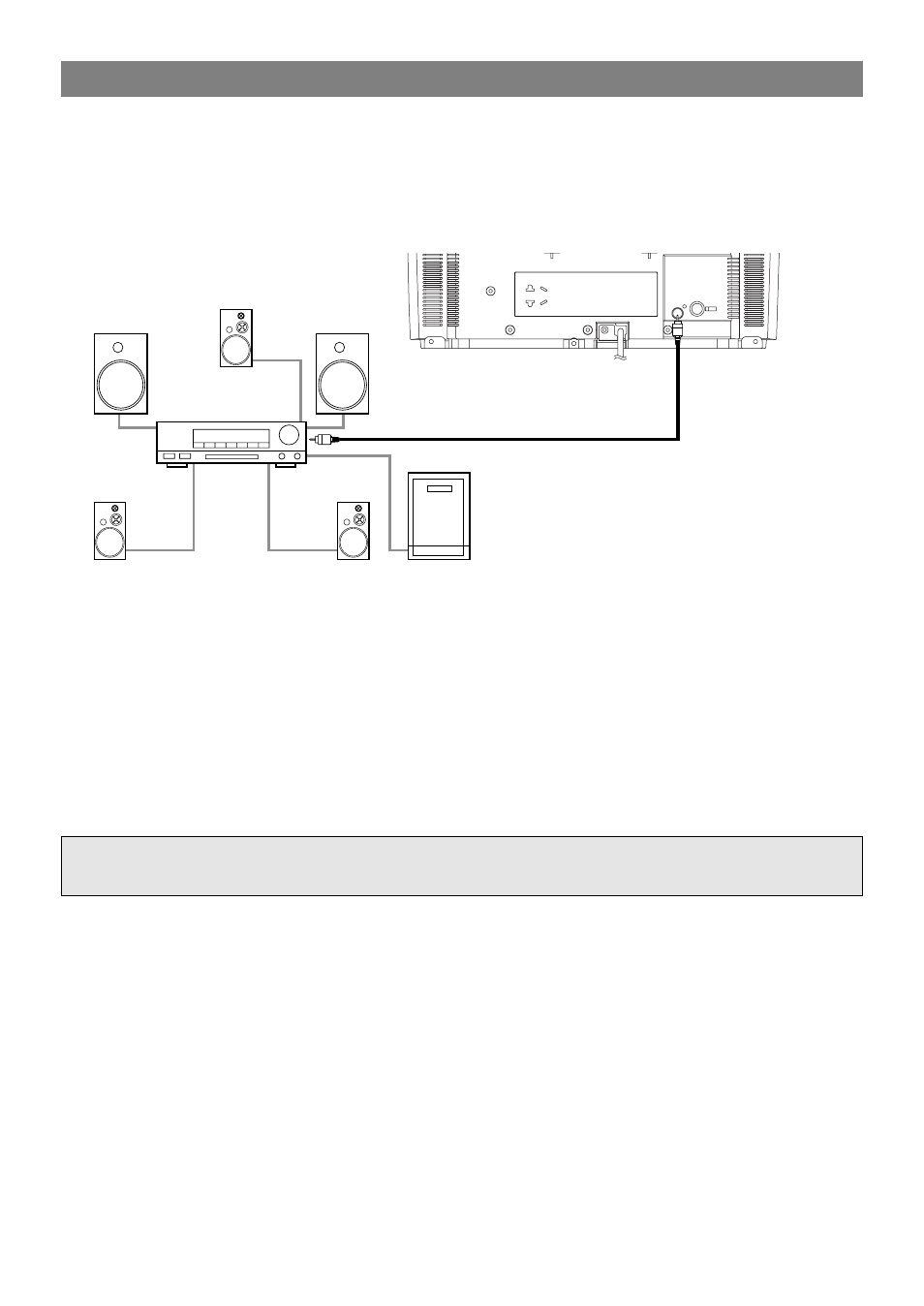

CONNECTING TO A DOLBY DIGITAL DECODER (for DVD)
If using this unit to play a DVD disc in a 5.1 channel Dolby Digital surround format, the unit outputs a
DOLBY DIGITAL Data stream from its COAXIAL digital audio out jack. By hooking the unit up to a Dolby
Digital decoder, you can enjoy a more convincing, realistic ambience with powerful and high-quality surround
sound as enjoyed in movie theaters.
Use audio coaxial digital cables (commercially available) for the audio connections.
NOTES:
• Be sure to turn off the power to all components in the system before connecting another component.
• Refer to the Owner's Manuals for the components to be connected to the unit.
• If connected to a Dolby Digital decoder, set DOLBY DIGITAL to ON for audio output in the setup mode.
(See page 28 to set DOLBY DIGITAL to ON.)
• Unless connected to a Dolby Digital decoder, set DOLBY DIGITAL to OFF for audio output in the setup
mode. Playing a unit using incorrect settings may generate noise distortion and may also damage the speak-
ers.
COAXIAL ANT.
Front speaker
(left)
Center
speaker
Front speaker
(right)
Surround
speaker
(left)
Surround
speaker
(right)
Subwoofer
To COAXIAL jack
(Only DVD AUDIO OUT) To Coaxial digital
Audio input jack Dolby Digital decoder
Audio coaxial digital cable
(commercially available)
[Fig. 7]
Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are
trademarks of Dolby Laboratories.
EN
