Stik Thermometer
Operation
7
Display and Controls
The Display and Controls are explained below and in the Setup and Configuration section.
See Figure 3.
5
6 7
10
9
4 3
8
2 1
gjo001.eps
Number Item Description
A D Push to power the Product on and off. Hold the button down at power-up to
check the display to see that all display segments are shown.
B A
Push to toggle the main display value between min, max, and trend modes.
C B
Push to change the various set-up parameters of the Product.
D C
Push to enter data in set-up modes. When the Product is displaying
temperature, push
C
to activate the backlight.
E Primary
Display
Shows the temperature values in ° C or ° F. Also used in set-up mode.
F Icon area Used in regular and setup modes.
G Stability
Display
Shows the trend and stability of data.
H Arrow
Buttons
Secondary functions of
A
and
B
. Enter data in the setup modes.
I M
Backlight symbol.
J E
Flashes when the batteries need to be changed.

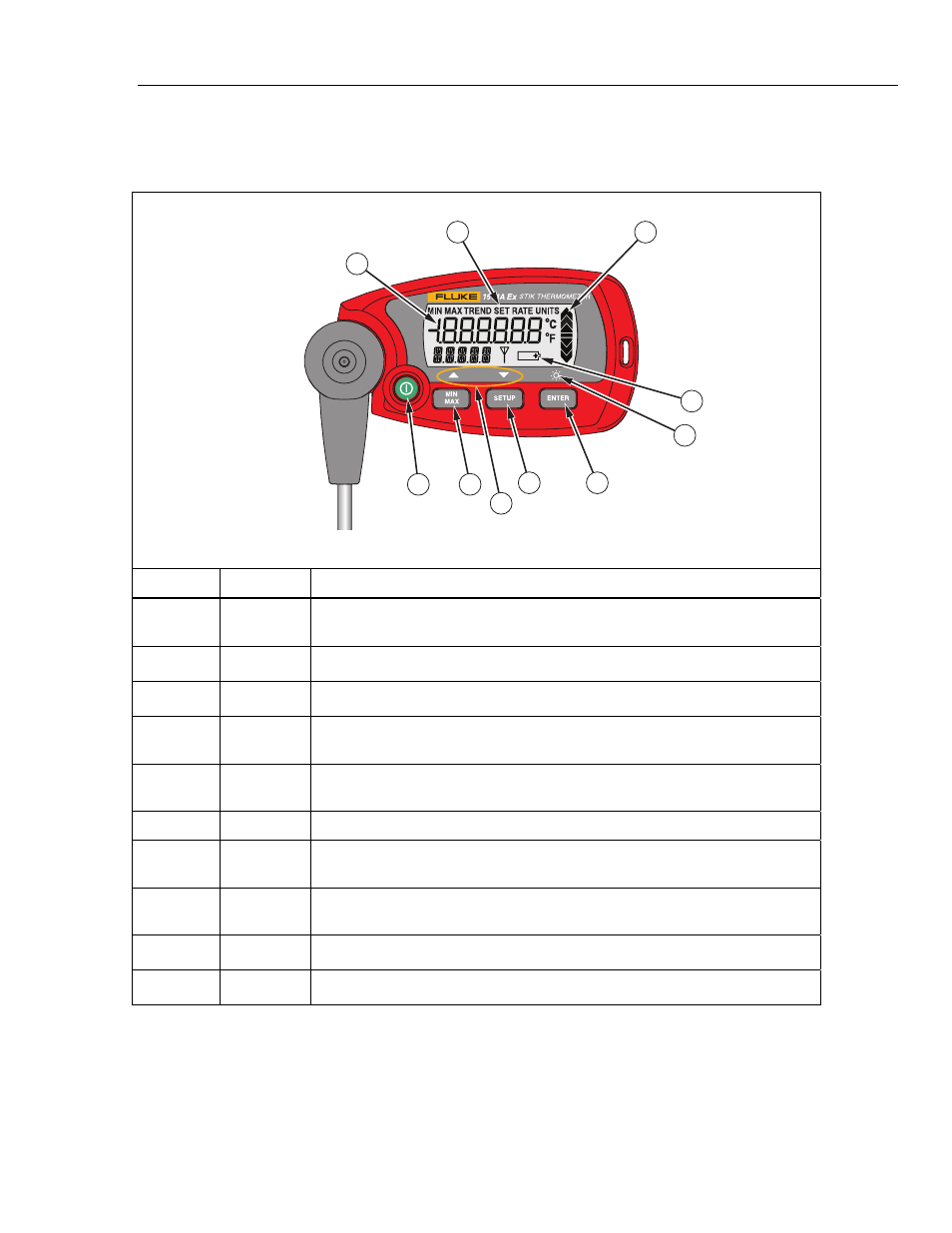

Figure 3. Display and Controls
