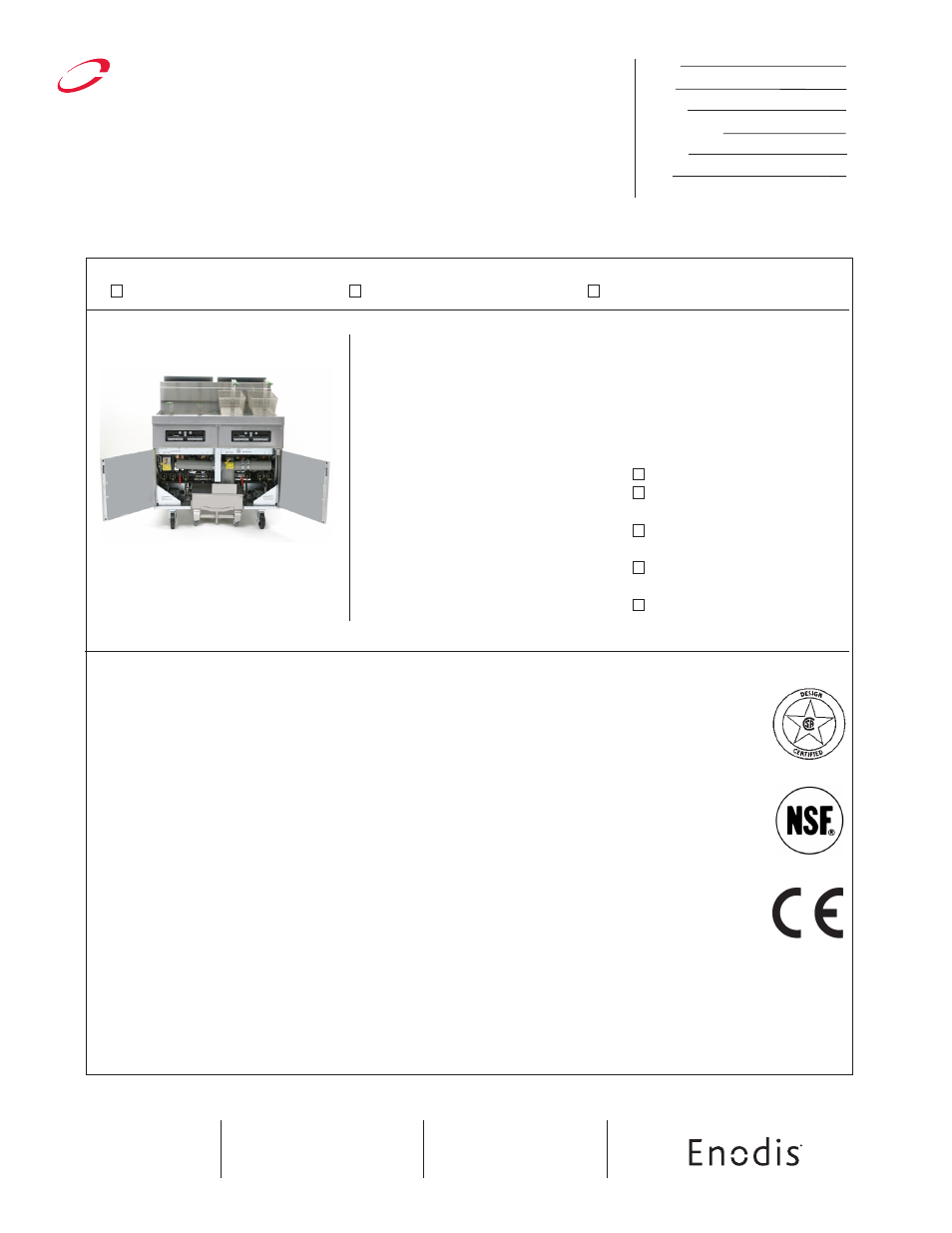

Frymaster D260GSCF - Manual

Designed for trouble-free filtering of fryer batter-
ies without wasting valuable space
Dean’s renowned, built-in filtration system puts filtration
where it’s most convenient to use -- right within the fryer
battery -- eliminating the need for additional floor and
storage space.
The filtering process is fast and easy, encouraging fre-
quent filtering -- a critical part of maximizing oil life,
especially with trans-fat free oils. It is also sequential, so
one fryer may be filtered while the others are still in use.
It is engineered with features that allow added conve-
nience and ease of use.
This system is enhanced with a gravity draining system
that allows residual oil to drain into the filter pan so that
drain lines are always open. The filter, housed beneath
two Dean fryers or one fryer and a spreader, is capable of
filtering up to six fryers, individually, without having to
be moved from fryer to fryer, saving valuable labor. One
fifty-pound fryer can be filtered in about four minutes,
while other fryers in the battery keep on cooking.
This filter comes standard with a powerful 4 GPM pump
to maximize filtering efficiency and minimize clogging.
The stainless steel filter pan is equipped with casters and
an automatic connection for ease of access.
Perform complete filtering quickly and efficiently:
•Automatic, hands-free connection
• Two-step filtration process -- Step one: open drain
valve, open return valve to activate filter pump . Step
two: Close drain valve; close return valve to turn off
pump
• Ramp supports engage and lift filter pan off floor to
effortlessly clear floormats
• Large sump with secure hold-down ring ensures proper
vacuum and superior oil filtration
•Rear-flush rear return makes for ease of cleaning
Specifications
Standard Features
75UFF 85UFF 100UFF
Models
Super Cascade Under
Fryer (UFF) Built-in Filter
Su
pe
r C
as
ca
de
U
nd
er
Fry
er
(U
FF
) B
uil
t-in
Fil
te
r
Project
Item
Quantity
CSI Section 11400
Approval
Date
Dean ™
®
• 4 GPM (15 LPM) filter pump with
powerful 1/3 HP motor
• Rear oil return flushes crumbs into
filter pan
• Drain safety switch on Decathlon
fryers
• Internally plumbed 3” (7.6 cm) oil
drain and return lines;
• 1” (2.5 cm) rear gas connection with-
out shut-off valve
• Perforated filter crumb tray
• Casters
5489 Campus Drive
Shreveport, LA 71129 USA
Tel: 318-865-1711
Tel: 1-800-221-4583
Fax: 318-868-5987
E-mail: [email protected]
http://dean.enodis.com
Bulletin No. 830-0043 11/07
Litho in U.S.A. ©Frymaster, LLC
D260GSCF
Options & Accessories
8 GPM (30 LPM) filter pump
Drain flush option for cleaning
heavy sediment drain manifold
Filter heater for solid shortening
use - Add 1.3 Amps
5’ (152 cm) wash down hose
and nozzle assembly
See Dean Price List for filter
paper and optional accessories
• Filter starter kit: filtration powder
sample, 25 sheets filter paper,
clean-out rod, gloves, cleaning
brush
• Heavy gauge stainless steel
construction
