Caution: Unlock the levers before inserting the line card into the chassis. Fully engage the
locking mechanism once the card has been inserted; not doing so will cause damage to the card
below when that card is inserted.
Warning: Electrostatic discharge (ESD) damage can occur when components are mishandled.
Always wear an ESD-preventive wrist or foot-heel ground strap when handling line cards. Place
line cards on an antistatic surface when they are not installed.
101-00310-01 3
Step Task
1 Extend the left and right card levers by first pressing gently down on the thumb tabs (see Figure 2 ) in
the ejector levers and then pulling the ejector levers simultaneously until they are in the open
position. See
Figure 3 .

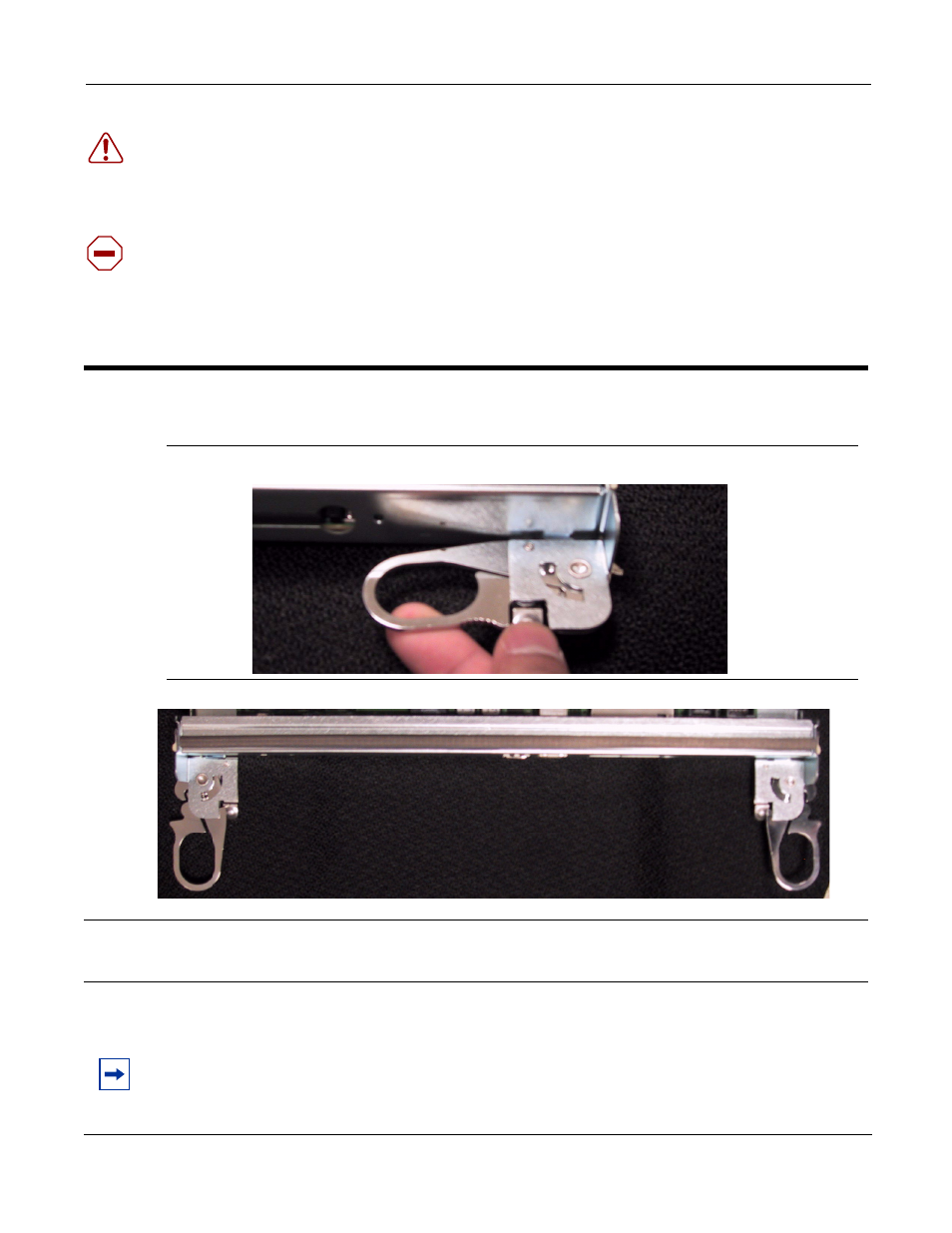

Figure 2 Depress the thumb tabs
Figure 3 Extend the levers
2 Hold the card assembly by the metal carrier edges. Avoid touching the printed circuit board and
connector pins.
3 Align the card with the guide, and gently slide it into any line card slot until the card is about halfway
into the slot.
Installation Notes: Use the markings on the fan tray to determine which slots are for the
RPMs and which are for the line cards.
