21
DE-10 Owner’s Manual

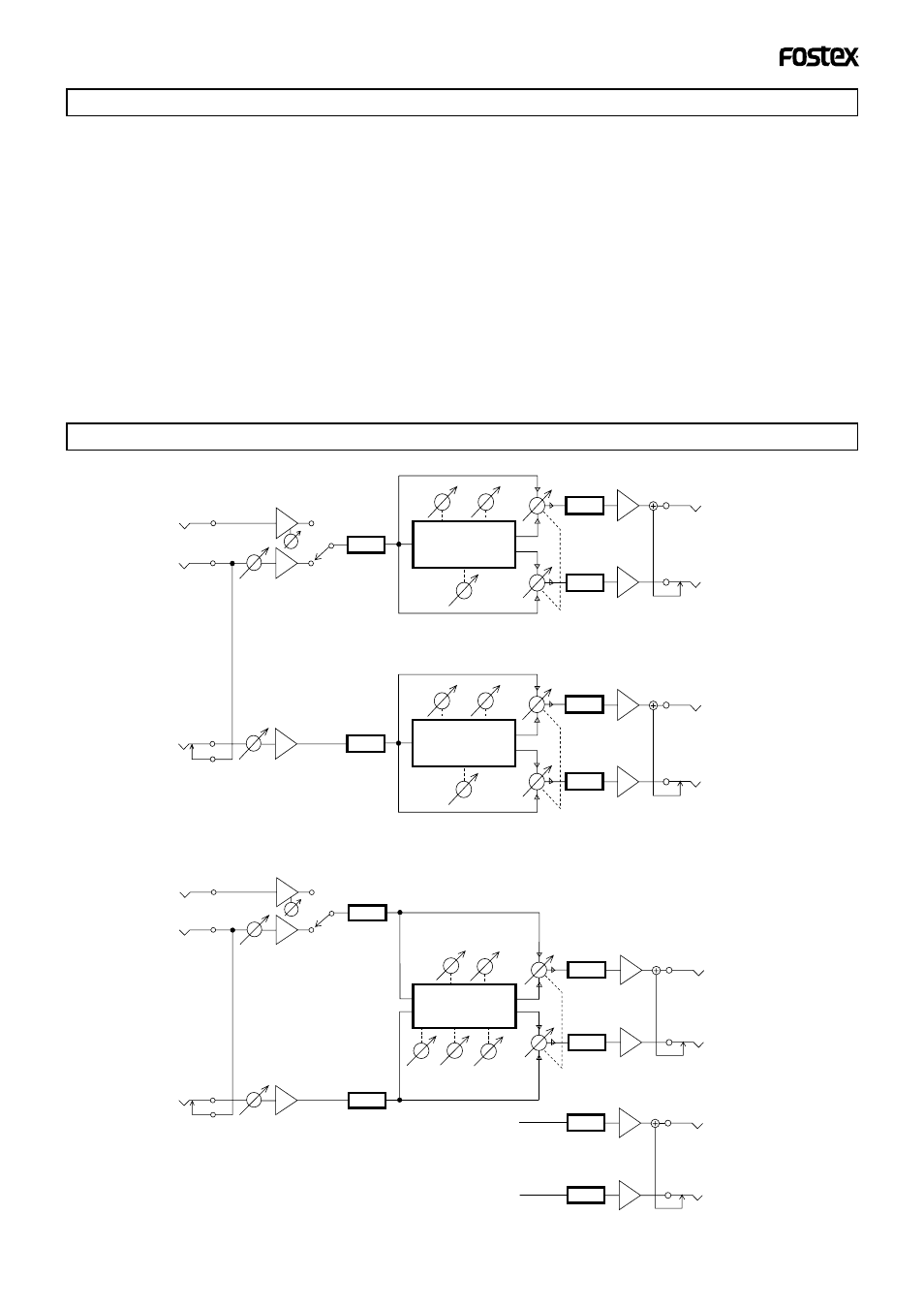

Block Diagram
Dual Mode
Single 1/2 Mode
D/A
D/A
EFFECT
PROCESSOR
EFFECT
PROCESSOR
D/A
D/A
A/D
A/D
INPUT
INPUT
INPUT 1 (1&2)
INPUT 2
ADJUST
TYPE
VARIATION
ADJUST
TYPE
VARIATION
DR
Y
EFF
DR
Y
EFF
DR
Y
EFF
DR
Y
EFF
OUTPUT 1
L (MONO)
R
MIX
MIX
OUTPUT 2
L (MONO)
R
TRIM
MIC/GUITAR
INPUT
SELECT
EFFECT
PROCESSOR
D/A
D/A
A/D
A/D
ADJUST
DR
Y
EFF
DR
Y
EFF
MIX
PARAM.1
ADJUST
PARAM.2
ADJUST
PARAM.3
TYPE
VARIATION
D/A
D/A
MUTE DATA
MUTE DATA
OUTPUT 1
L (MONO)
R
OUTPUT 2
L (MONO)
R
INPUT
INPUT
INPUT L (MONO)
INPUT R
TRIM
MIC/GUITAR
INPUT
SELECT
Specifications
LINE INPUT x 2
• Connector:
ø 6mm phone jack/unbalanced
• Input Impedance:
20k
Ω
or more
• Input Level:
-10dBV
MIC/GUITAR x 1
• Connector:
ø 6mm phone jack/unbalanced
• Input Impedance:
500k
Ω
or more
• Input Level:
-55dBV ~ -15dBV (Controllable)
• Connector:
ø 6mm phone jack/unbalanced
• Output Impedance: 10k
Ω
or more
• Output Level:
-10dBV
• Connector:
ø 6mm phone jack (Optional Model 8051)
• Frequency Response:
20kHz ~ 20kHz (TYPICAL)
• Dynamic Range:
92dB (TYPICAL)
• AD converter:
20bit 64 times over sampling delta sigma
• DA converter:
24 bit 128 times over sampling delta
sigma
• Total Harmonic Distortion:
0.01% (TYPICAL)
• Sampling Frequency:
44.1kHz
• Dimensions:
482 (W) x 44 (H) x 230 (D) mm
• Weight:
Approx. 2.5kg
• Power Supply:
120V AC 60Hz, 230V ~ 50/60Hz
• Power Consumption:
8W
• Specifications and appearance are subjects to change without notice for product improvement.
