Fisher-Price TOUGH TRIKE 72644 - Manual (Page 3)

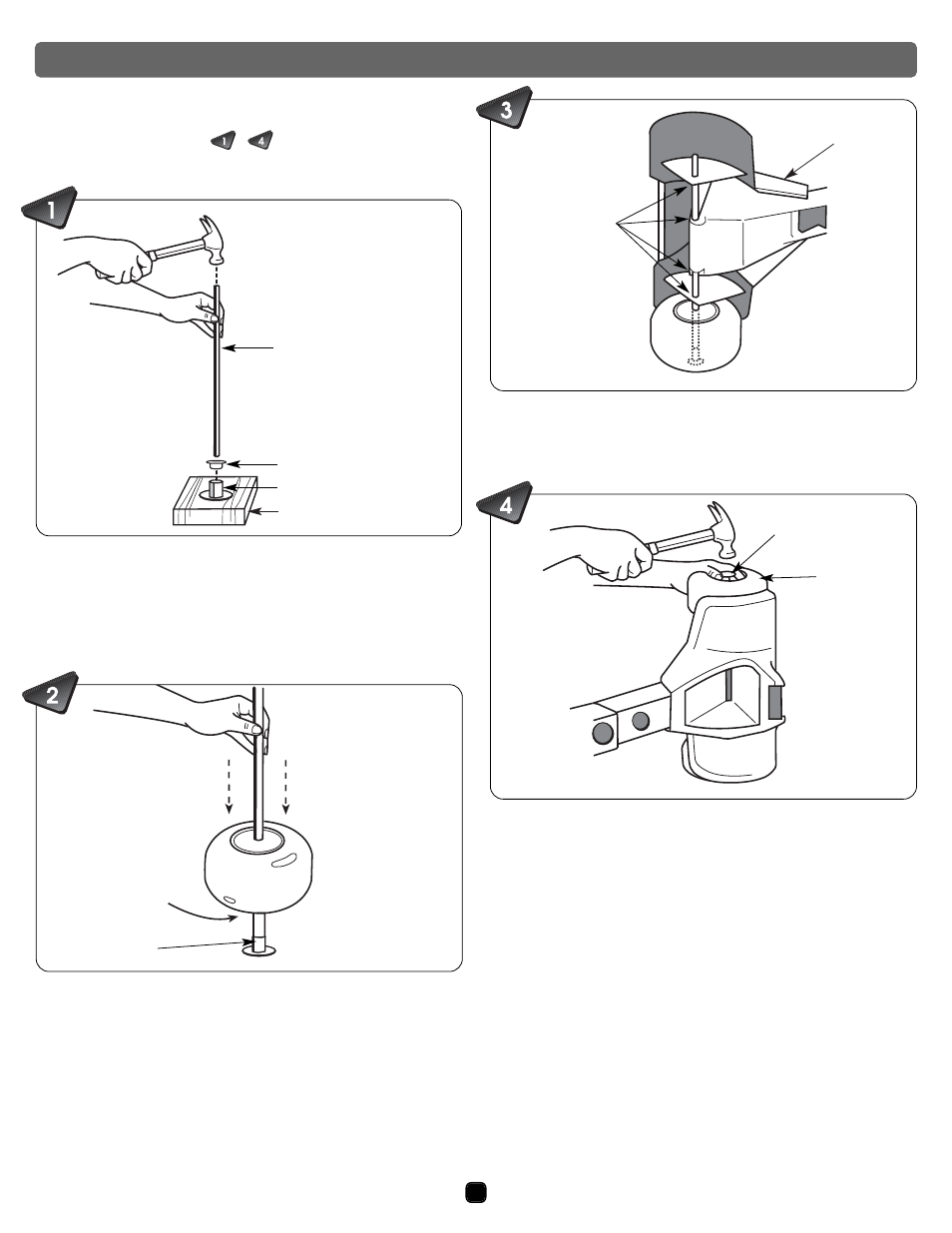

IMPORTANT! Remove the cap nut assembly tools from the
rear axle and save them. The cap nut assembly tools will be
used for assembly steps - and then discarded when
the rear wheel assembly is complete.
Axle Holes
Rear Axle
Cap Nut
Cap Nut Assembly Tool
Recessed Side
Cap Nut
Assembly Tool
• Place the other rear wheel onto the rear axle with the
recessed side facing up.
• Place a cap nut into a cap nut assembly tool.
• Place the cap nut with cap nut assembly tool onto the end of
the rear axle and tap with a hammer until secure.
• Remove both cap nut assembly tools and dispose of them
properly.
• Place a rear wheel onto the rear axle with the recessed side
facing down toward the cap nut assembly tool.
• Turn the frame on its side.
• Insert the rear axle through the four axle holes in the rear
of the frame.
3
Assembly
Frame
• Place a scrap block of wood on a flat surface.
• Fit a cap nut into a cap nut assembly tool.
• Insert one end of the rear axle into a cap nut.
• Tap the end of the rear axle with a hammer. Make sure the
cap nut is securely attached to the rear axle.
Scrap Block of Wood
Rear Wheel
Cap Nut
Assembly Tool
