Fisher-Price C2390 - Manual (Page 10)

10

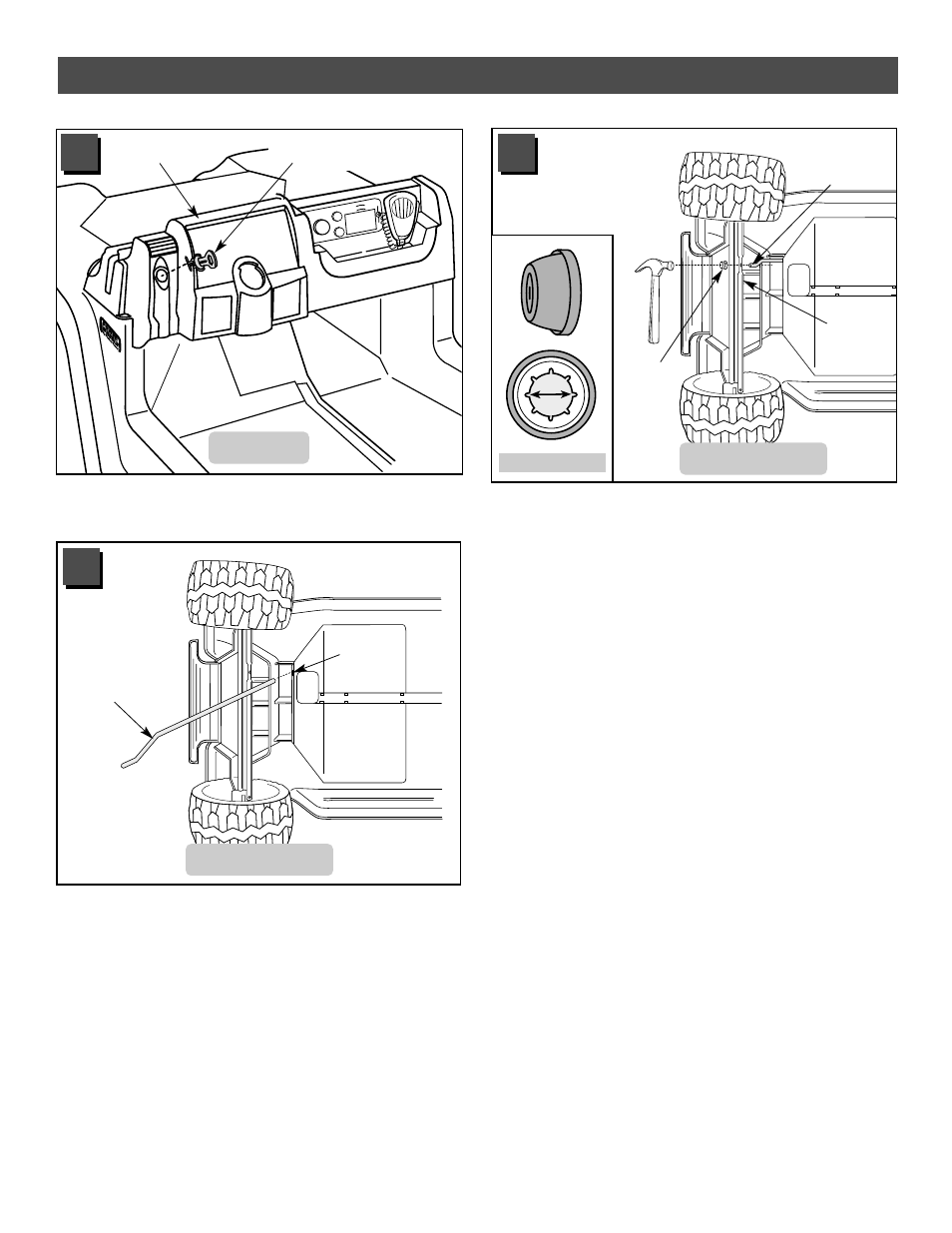

Dash Key Assembly
• Insert and “snap” the key assembly into the opening in
the dash, as shown.
Dash View
Steering
Column
Hole
Bottom View
• Wipe the steering column with a paper towel to remove
any excess lubricant.
• Turn the vehicle on its side.
• Insert the straight end of the steering column up
through the hole in the vehicle body wall and out
through the hole in the dash.
Assembly
5
6
• Insert the end of the steering column through the hole
in the steering rod.
• Fit a cap nut onto the end of the steering column.
• While supporting the steering column, tap the cap nut
with a hammer to secure it on the steering column.
Hint: You may want the help of another person to
support the steering column while you tap the cap nut
with the hammer.
Steerin
g Rod
Cap Nut
End of
Steering
Column
Bottom View
7
.354"
.354 Cap Nut
