Follett VU155N - Manual (Page 2)

(696mm)
PVC
joint
drain
slip
3/4"
air break*
electrical
connections
counter top
*DO NOT CONNECT
AIR BREAK TO
DRAIN SYSTEM
12"
(305mm)
12" (305mm)
1" min.
(26mm) 12" min.
(305mm)
31.25 "
(794mm)
21.75 "
(553mm)
49.75 "
(1264mm)
28 "
(712mm)
25.8"
(656mm)
18.5"
(470mm)
3.5"
(889mm)
bin signal
power
6"
(153mm)
3/4 PVC
slip joint
drain
air break*
23.50"
(597mm)
26.63"
(677mm)
3/8 water inlet
3/4 PVC
drain pan
drain
Connections/Installation
• Support all dispensers from below on channels or with supplied leg accessory
• Removable counter panel required for access to dispenser side opposite ice chute
• 3/4" PVC pipe nipple for bin drain and drain pan drain, 1" ID hose for beverage bath drain (do not tie drains together)
• Drawings show units with right hand ice chute – left hand units have connections in same position on right side
Required Clearances
• 51" (1295mm) minimum above counter for installation if dispenser will be dropped into counter
• 36" (915mm) minimum above counter for auger removal
• 12" (305mm) minimum on side opposite ice chute for service
• 12" (305mm) minimum on ice chute side if ice transport tube enters this side
• 12" (305mm) minimum between dispenser side(s) and optional icemaker(s)
• Maximum counter thickness – 1.25" (31.75mm)
Electrical
Standard electrical – 115V, 60Hz, 1 ph
Dispenser – 2.4 amps
Alternate electrical – 220V, 60Hz, 1 ph
Dispenser – 2.0 amps
8 ft (2.4m) cord and NEMA 5-15 hospital-grade plug provided with each dispenser. Separate circuits and disconnects required for
each dispenser.
Approximate Shipping Weight
Dispenser – 250 lbs (113kg)
NEMA 5-15
Plug Configuration
(115V only)
Vision ™ ice and water dispensers
VU155N
Series
© Follett Corporation
Form #2790
05/07
801 Church Lane • Easton, PA 18040, USA
Toll free (800) 523-9361 • (610) 252-7301
Fax (610) 250-0696 • www.follettice.com
115V only 115V only

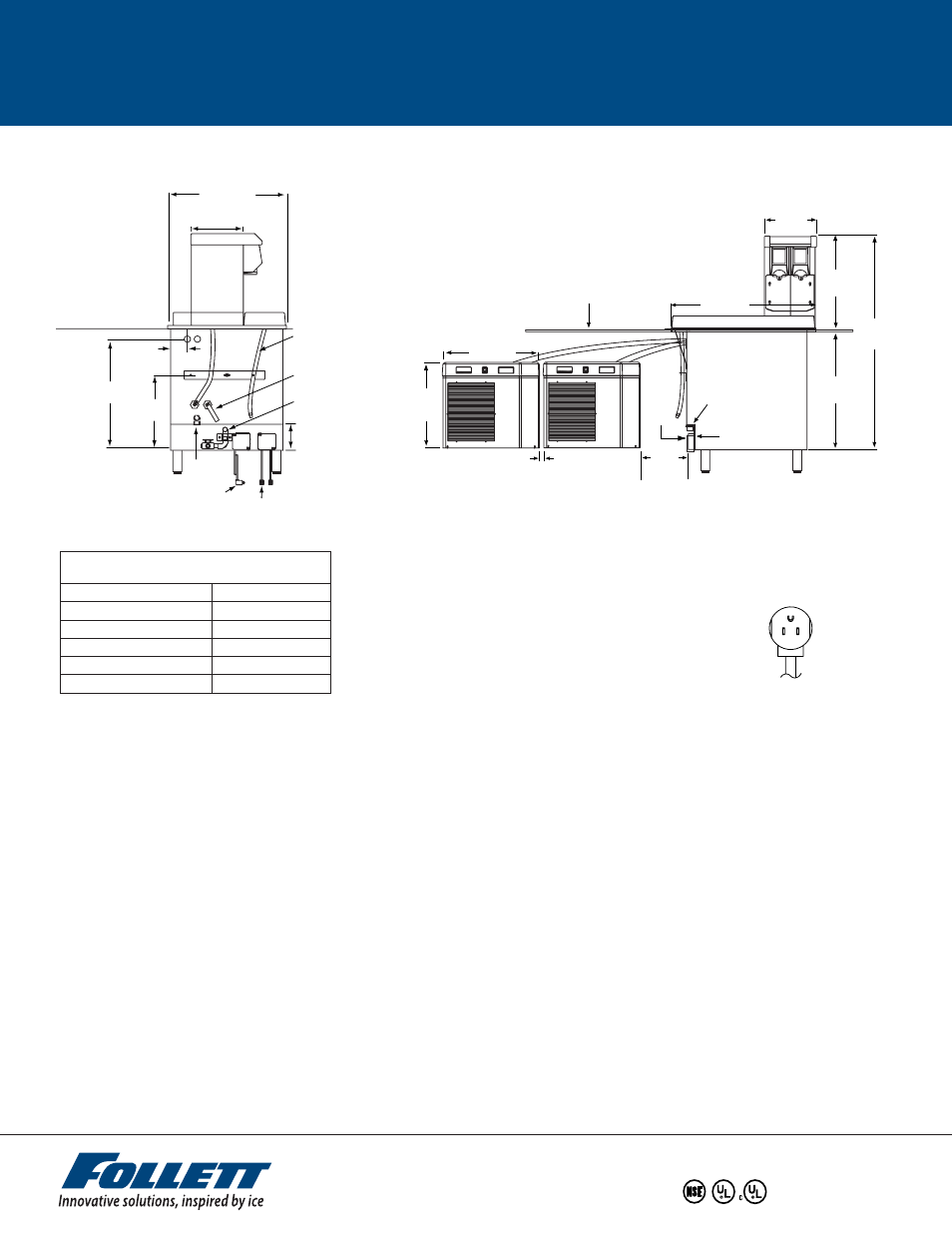

Left Side Front View – Right hand ice and water chutes
(shown with two HCC1000AVS Satellite-fill Chewblet icemakers)
Refer to Design Detail Sheets for important
icemaker and installation information
Icemaker series Literature form#
MCD400 2810
HCC1000 3105
HCD1000 3110
HCC1400 3175
HCD1400 3110
Chewblet is a registered trademark of Follett Corporation, registered in the US.
Follett reserves the right to change specifications at any time without obligation. Certifications may vary depending on country of origin.
