Speakers operated in a bi-amp configuration with
a subwoofer (tri-amping)
A In
Bridge Out
Bridge Mono Mode
MID
OUT
PCN-4 ELECTRONIC CROSSOVER
INPUT
MONITOR
OUT
MAIN
OUT
UNPOWERED MIXER
B In
SWITCHES SET
TO EXTERNAL
CROSSOVER
Mk III
Cabinet
Hi Hi
Low Low
215s
Mk III
Cabinet
SPL-9000 POWER AMP
SPL-9000 POWER AMP

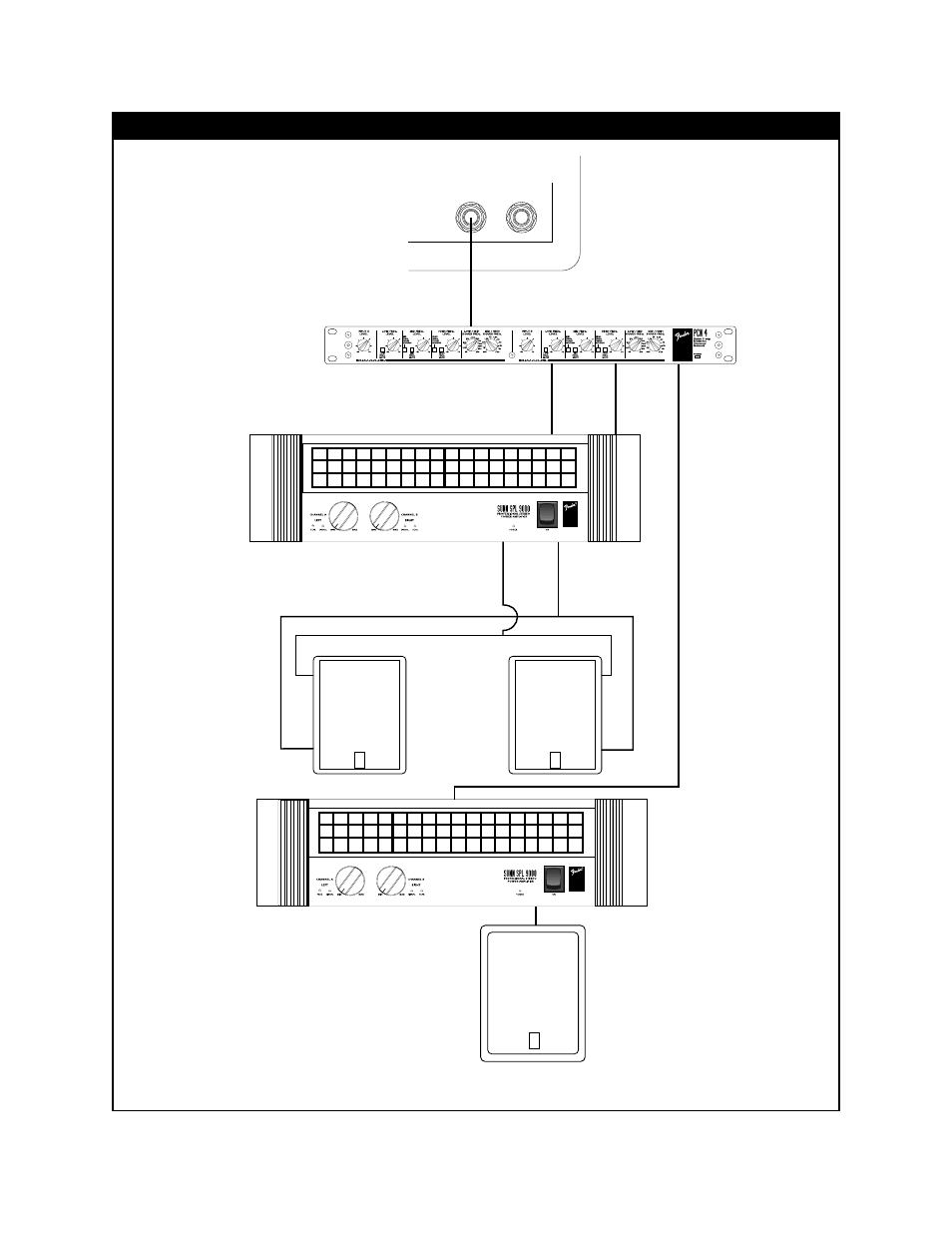

USING A 3-WAY ELECTRONIC CROSSOVER WITH MK III ENCLOSURES
