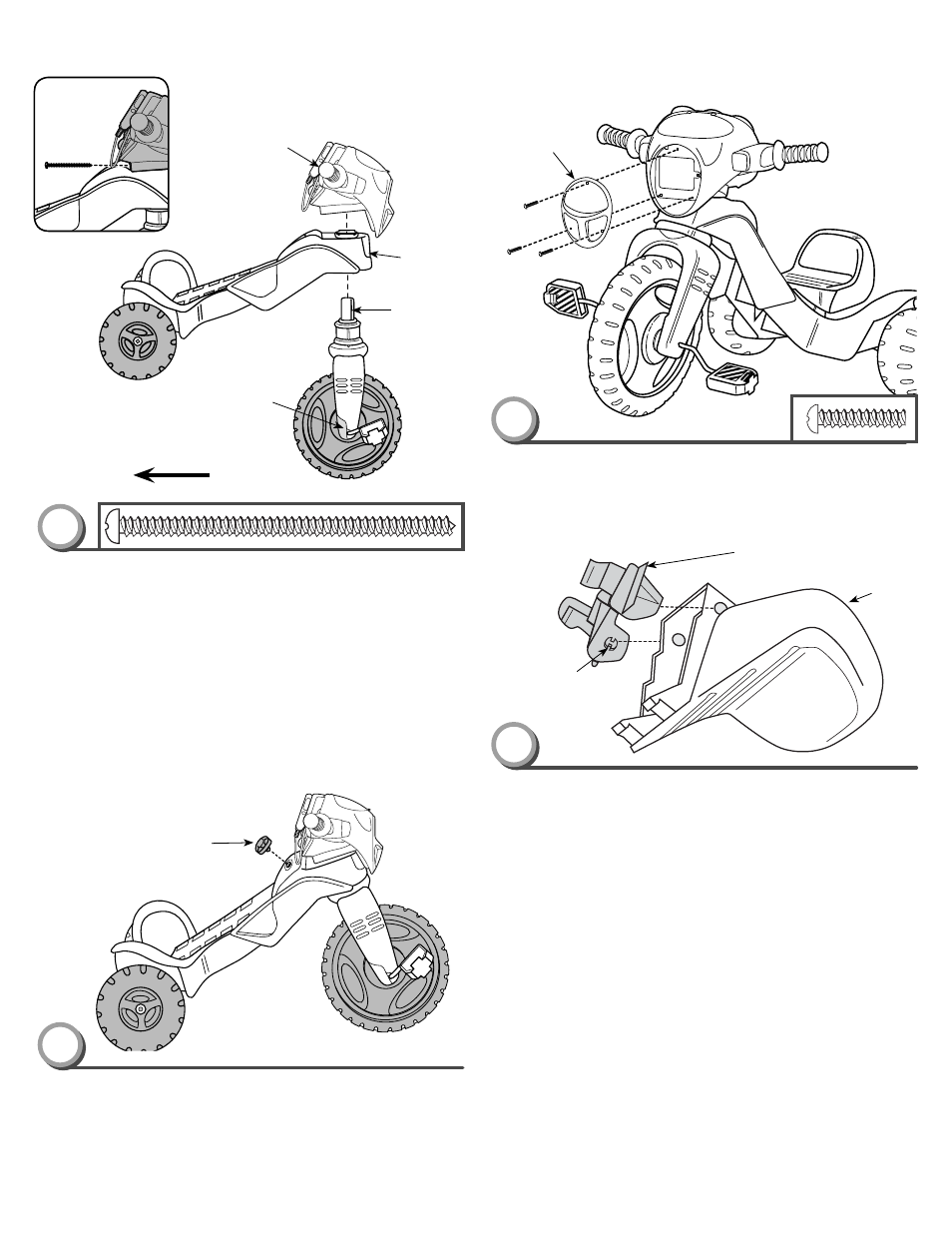

• Insert the fork post up through the hole in the neck of the
frame. Make sure the fork is positioned so that the fork
covers face the rear wheels.
• Place the handlebar onto the fork post and push it down
onto the frame. Make sure the handlebar is positioned so
that the screw hole faces the rear wheels and aligns with
the screw hole in the fork post.
Hint: You may need to rotate the handlebar to align the holes.
• Insert the #8 x 3" (7,6 cm) screw through the hole in the
handlebar and into the fork post so that part of the screw
(about
3 /
4
" - 1,9 cm) is still visible. Tighten the screw.
Handlebar
Frame
Neck
Fork
Post
Fork Cover
Rear of Trike
• Position the seat upside down.
• Fit the small pegs on the seat retainer into the holes in
the seat.
• Insert and “snap” the cap into the hole in the frame.
Cap
Seat Retainer
Seat
Peg
• Fit the the headlight cover onto the front of the handlebar.
• Insert three #6 x
1 /
2
" (1,3 cm) screws into the headlight
cover. Tighten the screws.
Headlight
Cover
Assembly
