4

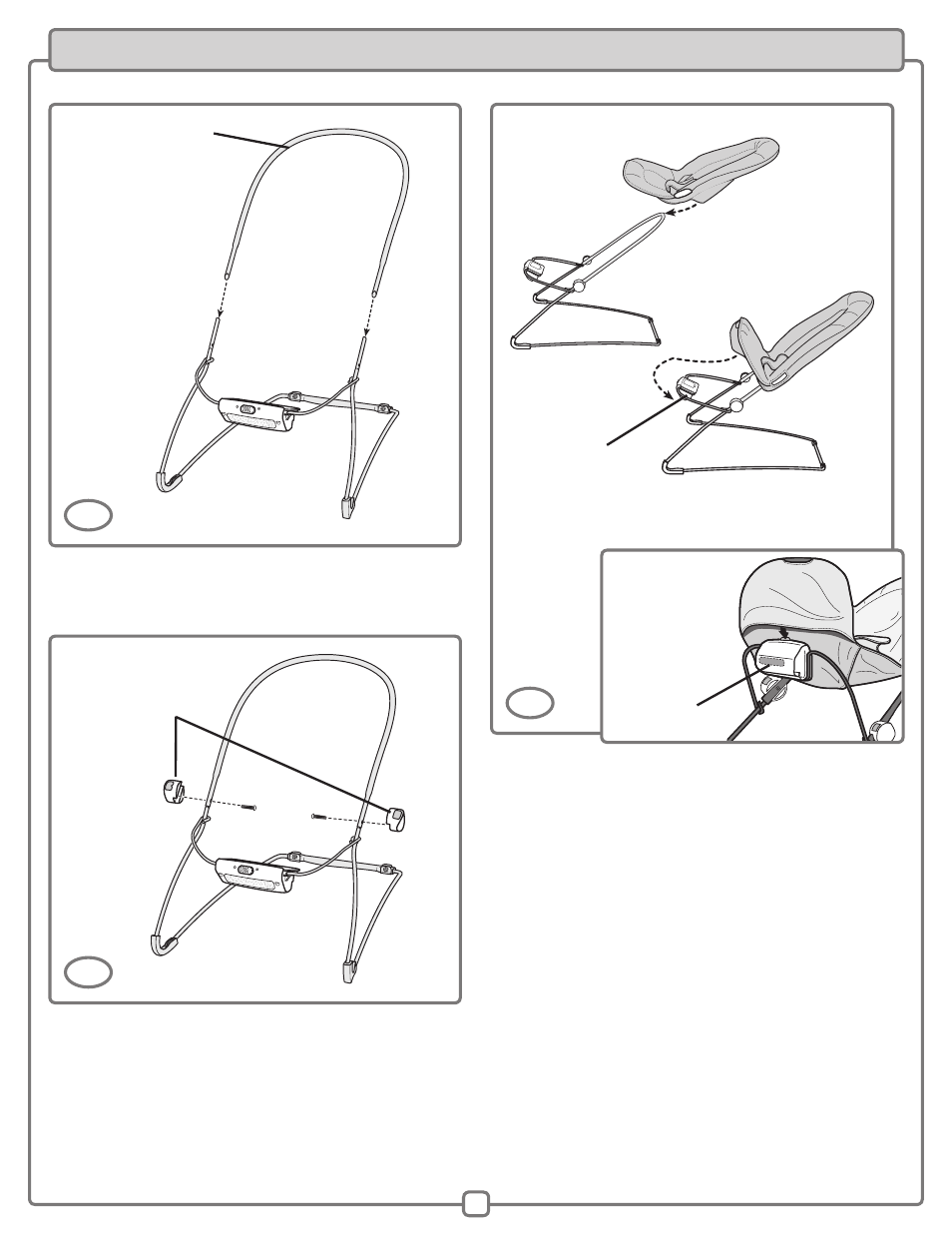

• Fit the seat back tube onto the ends of the base wire.
• Push the seat back tube to be sure it is completely on the
base wires.
5
Seat Back Tube
• Fit a retainer to the outside of the seat back tube, as shown.
Make sure the socket in the retainer is upright.
• Insert an M5 x 20 mm screw through the hole in the seat back
tube, base wire and into the inside of the retainer.
• Repeat this procedure to assemble the other retainer to the
other side of the seat back tube.
• Pull the seat back tube up to be sure it is secure. If you can
remove either end of the seat back tube, you have not assembled
the retainers correctly. Remove the screws, re-read and repeat
Assembly steps 5 and 6.
6
Retainer Socket Up
• Position the pad above the frame.
• Fit the upper pocket on the back of the pad onto the seat
back tube.
• Lift the footrest. Fit the lower pocket on the back of the pad
onto the footrest. Lower the footrest.
• Attach the pad fastener to the fastener on the soothing unit.
7
Footrest Soothing Unit
Fastener
Assembly
