Specifications
Screen Size
43.5"(H)
ן24.5"(V) inches
1106(H)
ן622(V) mm
diagonal 50"
Aspect Ratio
16 : 9
Resolution
1365(H)
ן768(V) pixels
Pixel Pitch
0.032"(H)
ן0.032"(V) inches
0.81(H)
ן0.81(V) mm
Color Reproduction
256 levels, 16,770,000 colors
Signals
Synchronization Range
Horizontal : 15.5 to 110 kHz
(automatic : step scan)
Vertical : 50.0 to 120 Hz
(automatic : step scan)
Input Signals
RGB, NTSC (3.58/4.43), PAL (B,G,M,N),
PAL60, SECAM, HD*1 , DVD*1 , DTV*1
Input Terminals
(VIDEO1 and RGB1 can also be used as OUTPUT terminals)
RGB
Visual 1 (Analog)
mini D-sub 15-pin
ן1
Visual 2 (Analog)
BNC (R, G, B, H/CS, V)
ן1*
2
Visual 3 (Digital)
DVI-D 24-pin
ן1*
3
Video
Visual 1
BNC
ן1
Visual 2
RCA-pin
ן1
Visual 3
S-Video: DIN 4-pin
ן1
DVD/HD/DTV
Visual 1
RCA-pin (Y, PB[CB], PR[CR])
ן1*
1
Visual 2
BNC (Y, PB[CB], PR[CR])
ן1*
1,
*
2
Audio
Stereo RCA
ן3 (Selectable)
External Control
D-sub 9-pin
ן1 (RS-232C)
Sound output
9W+9W at 6 ohm
Power Supply
AC120V 50/60Hz
Current Rating
6.4A (maximum)
Power Consumption
480W (typical)
Dimensions
48.1 (W)
ן30 (H)ן3.8 (D) inches
1222 (W)
ן736 (H)ן96(D) mm
Weight
50XM3A: 96.6 lbs / 43.9 kg (without stand)
50XM3A/S: 97.9 lbs / 44.5 kg (without stand)
Environmental Considerations
Operating Temperature
0°C to 40°C / 32°F to 104°F
Humidity
20 to 80% (no condensation)
Altitude
0 to 9180 feet / 0 to 2800 m
Storage
Temperature
-10°C to 50°C / 14°F to 122°F
Humidity
10 to 90% (no condensation)
Altitude
0 to 9840 feet / 0 to 3000 m
Front Panel User Controls Power on/off, Input source select,
Volume up/down/ OSM control
Remote Control Functions
Power on/off, Input source select, OSM
control,Volume up/down, Cursor (UP,
DOWN,LEFT, RIGHT), Pointer, Zoom up/
down, Off timer, Wireless/ Wired remote
control
OSM Functions
Picture (Contrast/Brightness/Sharpness/ Color/Tint/
Picture mode/Noise reduction/Color temperature/
White balance/Gamma/Low tone/Color tune), Audio
(Bass/Treble/Balance/Audio input), Image Adjust
(Aspect mode/V-Position /H-Position/V-Height /H-
Width/Auto Picture/Fine picture/Picture adjustment),
Option1 (OSM/BNC Input/D-Sub Input/RGB Select/
HD Select/Input Skip/All Reset), Option2 (Power
management/Cinema mode/Long life [PLE, Orbiter,
Inverse, White, Screen wiper, Soft focus]/Gray level/
S1/S2/Picture size/DVI Set up), Option3 (Timer Power
on mode/Control lock/IR Remote/Loop out/ID
number/Video wall [Divider, Position, Disp. mode,
Auto ID, Image adjust, Power on delay, PLE link,
Timer]), Advanced OSM, Language*, Color system,
Source information
*English, German, French, Italian, Spanish, Swedish,
Chinese
The features and specifications may be subject to change without
notice.
*
1
HD/DVD/DTV input signals supported on this system
480P (60 Hz)
480I (60 Hz)
525P (60 Hz)
525I (60 Hz)
576P (50 Hz)
576I (50 Hz)
625P (50 Hz)
625I (50 Hz)
720P (60 Hz)
1035I (60 Hz)
1080I (50 Hz)
1080I (60 Hz)
*
2
The 5-BNC connectors are used as RGB/PC2 and HD/DVD2 input.
Select one of them under “BNC INPUT”.
*
3
FPP-50HD20 is not compatible with HDCP.
Supported Signals
• 640
480P @ 59.94/60Hz
• 1280
720P @ 59.94/60Hz
• 1920
1080I @ 59.94/60Hz
• 720
480P @ 59.94/60Hz
• 720
480I @ 59.94/60Hz
Note: In some cases a signal on the plasma monitor may not be displayed
properly. The proglem may be an inconsistency with standards from
the source equipment (DVD, Set-top box, etc...). If you do experience
such a problem please contact Faroudja and also the manufacturer
of the source equipment.

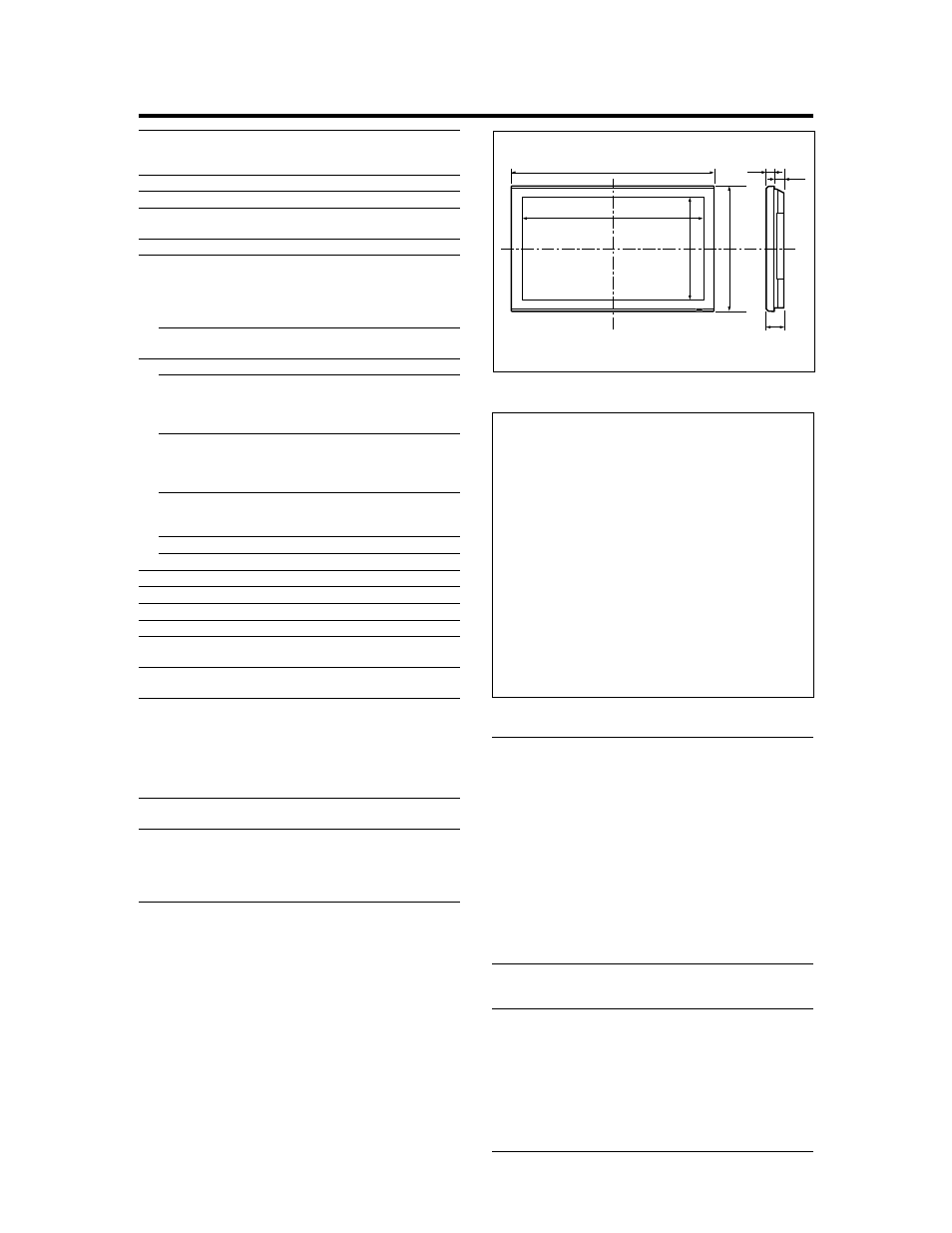

Units are in inch
(mm)
3.8"
(96)
1.5"
(38)
2.3"
(58)
48.1" (1222)
30" (736)
43.5" (1106)
24.5" (622)
Other Features,
Digital Zoom
Function (100-900% Selectable), Video Wall 2
Ч
2/
3
Ч
3 multi screen, Self Diagnosis, Anti Image
Burn (PLE LOCK1~3, INVERSE, WHITE,
ORBITER (Auto1,2/Manual), SCREEN WIPER),
Color Temperature select (high/mid/mid low/low,
user has 4 memories), Control lock (Except power
SW), Auto Picture, Input Skip, Color Tune, Low
Tone (3 mode), Auto ID, Programmable Timer,
Gamma Correction (4 mode), Loop through
interface, Plug and play (DDC1, DDC2b, RGB3:
DDC2b only)
Accessories
Remote control with two AAA batteries, Power
cord, Manuals, Safety metal fitting parts, Ferrite
cores, Bands, Cable clamps
Regulations
FPP-50HD20
UL Approved (UL 60950/CSA C22.2
No.60950-00)
DOC Canada requirements
Meets FCC Class A requirements
