DSP3300 User Guide EN EN
Applications

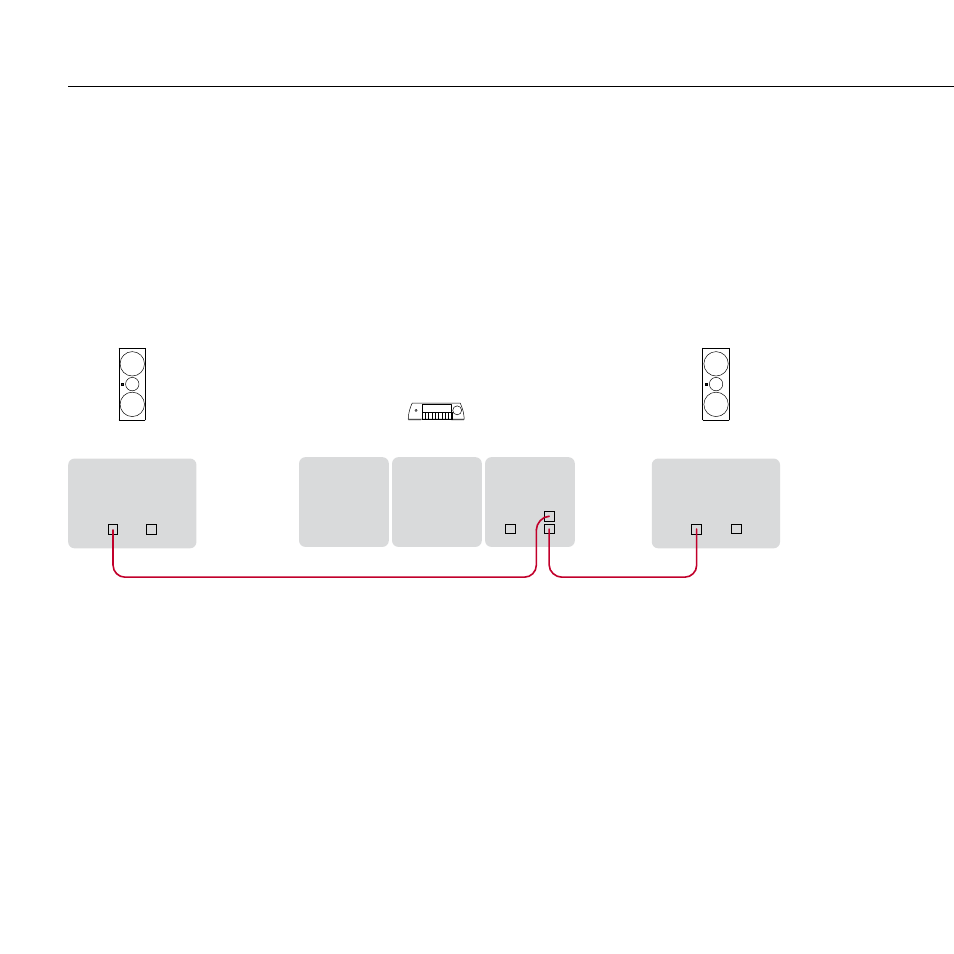

To connect a pair of DSP3300s to a Meridian
Audio Core 200
The DSP3300s are ideal for a compact Audio Core 200 based
system.
Connect the lower SpeakerLink output on the Audio Core
200 to the Master DSP3300, using a Meridian SpeakerLink
lead. •
Connect the upper SpeakerLink output on the Audio Core
200 to the Slave DSP3300, using a Meridian SpeakerLink
lead.
Make sure the Channel selector is set to the L/C position on
the back of the left speaker and to the R position on the back
of the right speaker.
•
•
Meridian Audio Core 200
MERIDIAN
SPEAKERLINK
INPUT OUTPUT
DSP3300 – Master DSP3300 – Slave
MERIDIAN
SPEAKERLINK
INPUT OUTPUT
SpeakerLink lead SpeakerLink lead
SPEAKERLINK
IN OUT
