Furuno MARINERADAR FR-8122 User Manual
Page 18
1. MOUNTING
1-10

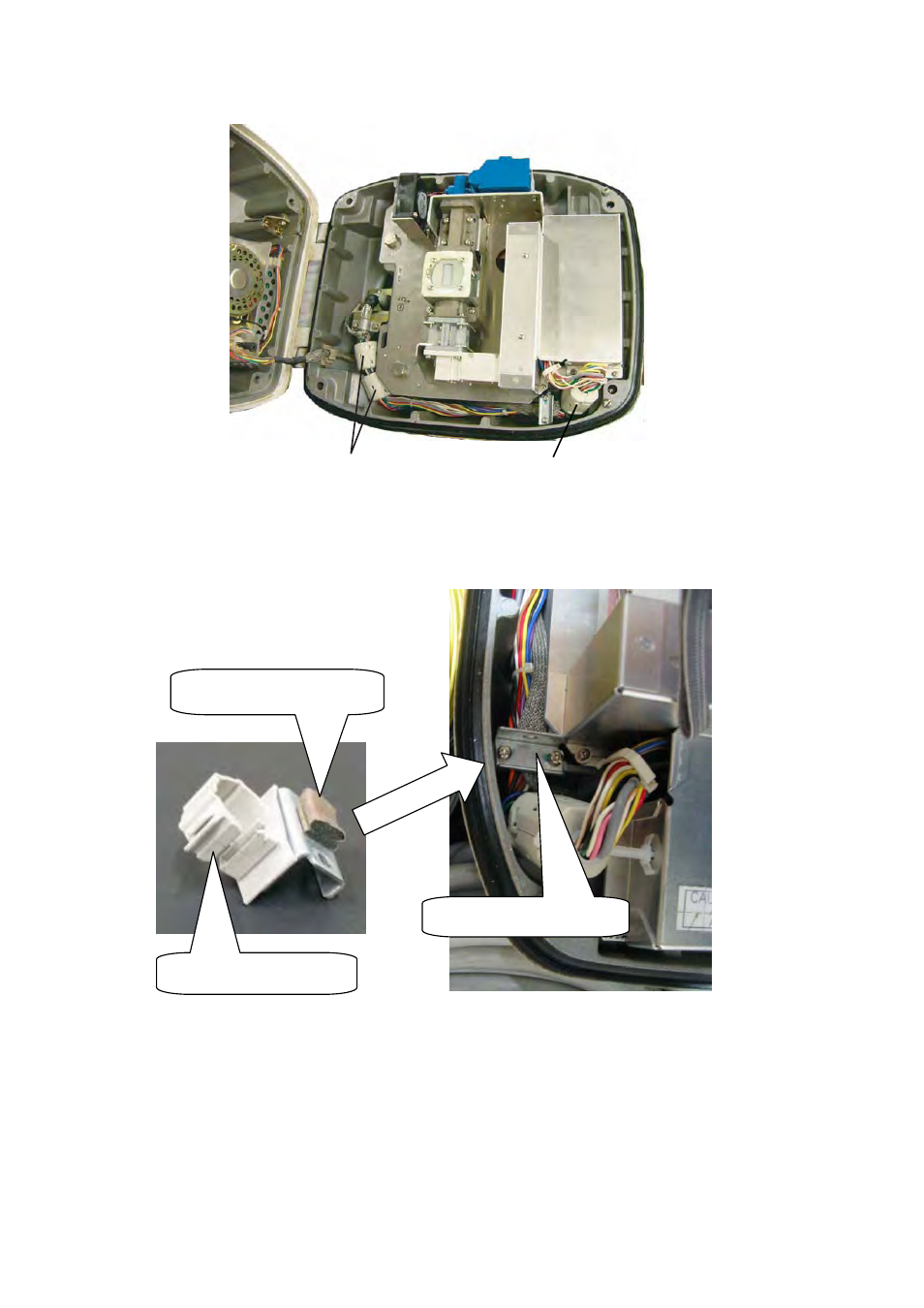

9. Attach three EMI cores to the signal cable as shown below.
EMI Core RFC-13 (2 pcs)
EMI Core RFC-H13 (1 pc)
Antenna unit chassis, cover opened
10. Fix the signal cable with the cable clamp as follows.
a) Dismount the cable clamp plate and remove clamp and gasket.
Remove gasket.
Remove clamp.
Cable clamp plate
