10
L6349pr-0921

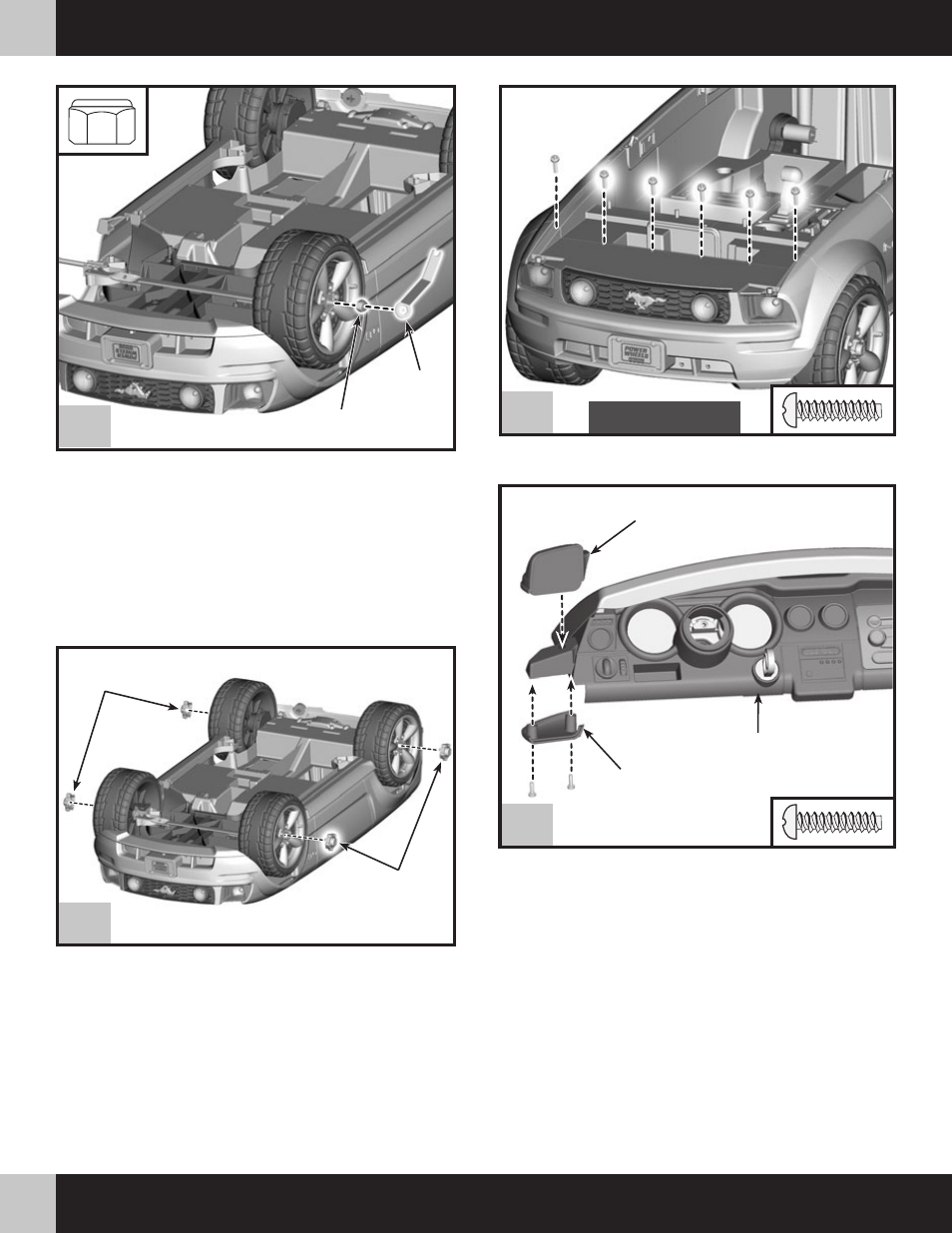

• Fit a mirror and mirror cover to an end of the dash assembly.
• Insert two #8 x
3 /
4
" screws into the mirror cover and tighten.
• Repeat this procedure to attached the other mirror and mirror
cover to the opposite end of the dash assembly.
Mirror
9
E
• Insert six #8 x 3 /
4
" screws into the front bumper and tighten.
8
• Fit a 3 /
8
"-16 lock nut, rounded side out, onto the front axle.
IMPORTANT! Tighten the lock nut firmly with the closed end of
the assembly tool.
• Test to be sure the front wheel moves freely on the front axle.
Turn the front wheel. If the front wheel does not move freely,
loosen the lock nut ¼ turn and test again. Repeat this procedure
as necessary.
• Repeat steps 4-6 to assemble the other washer, bushing, front wheel
and wheel cover with the remaining 3 /
8
"-16 lock nut.
Lock Nut
6
• Align the slot in a hubcap with the rib in the wheel cover.
“Snap” a hubcap into the center of each wheel cover.
• Turn the vehicle upright.
7
Hubcaps
Hubcaps
Mirror Cover
Dash Assembly
Assembly
Tool
ASSEMBLY
FRONT VIEW
