1. INSTALLATION
2
Flush mounting
Requires flush mount kit LH-3020 (Code No. 000-149-112). See the flush mount outline
drawing for details.
Contents of flush mount kit
Name Type Code No. Qty
Flush Mounting Plate TZ7300012A 999-999-025 2
Screw 6X12 SUS304 999-999-027 2
Wing Screw M4X35 SUS304 999-999-027 4
Wing Nut M4 SUS304 999-999-028 4
1. Make a cutout in the mounting location referring to flush mount outline drawing.
2. Place the Loud Hailer in the cutout.
3. Fix the two flush mounting plates to the Loud Hailer with screws.
4. Screw the wing nuts on the wing screws.
5. Fix the Loud Hailer with the wing bolts and then tighten the wing nuts.

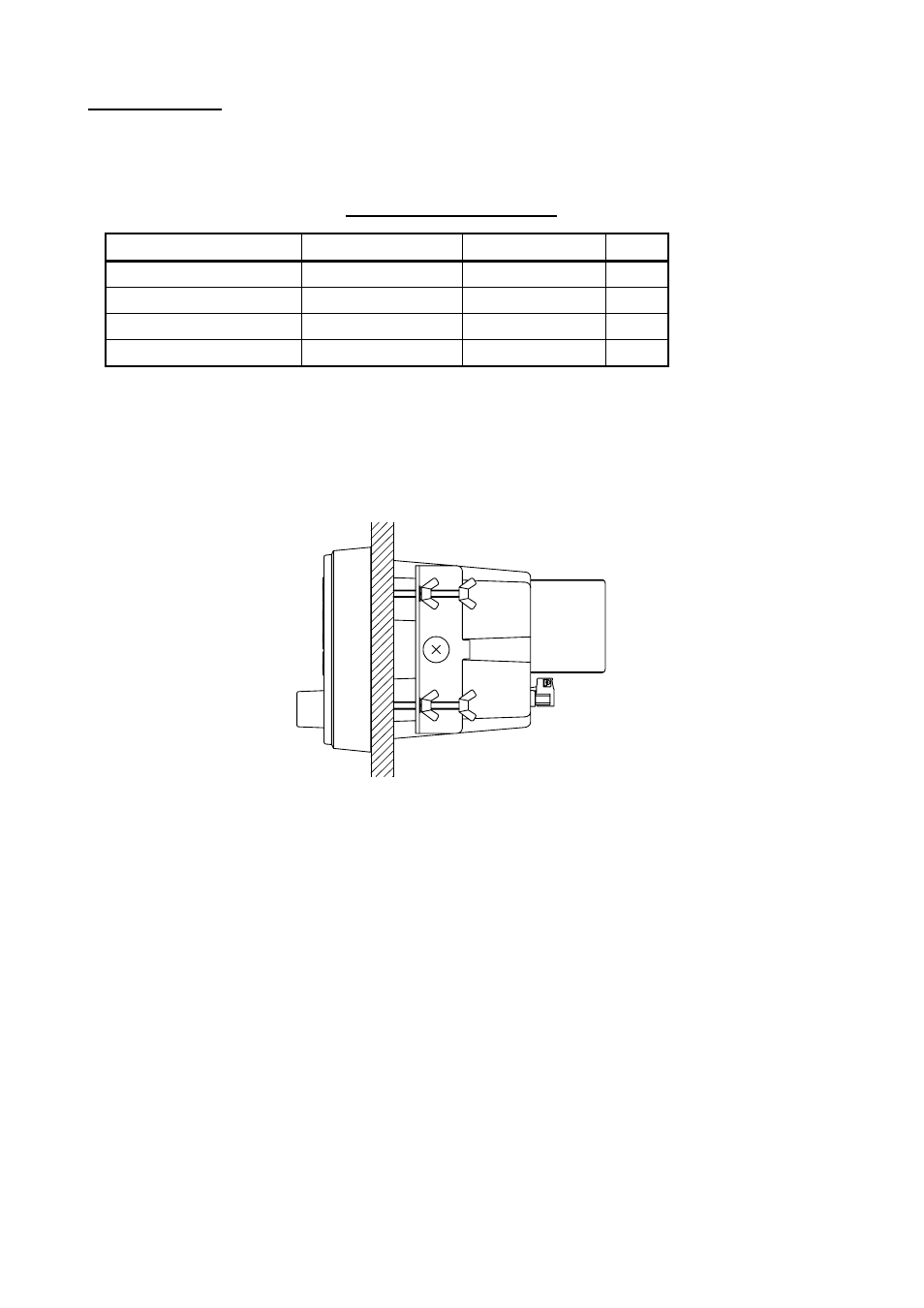

Loud hailer, flush mount
