CAUTION
This product contains small parts
in an unassembled state.
Adult assembly is required.

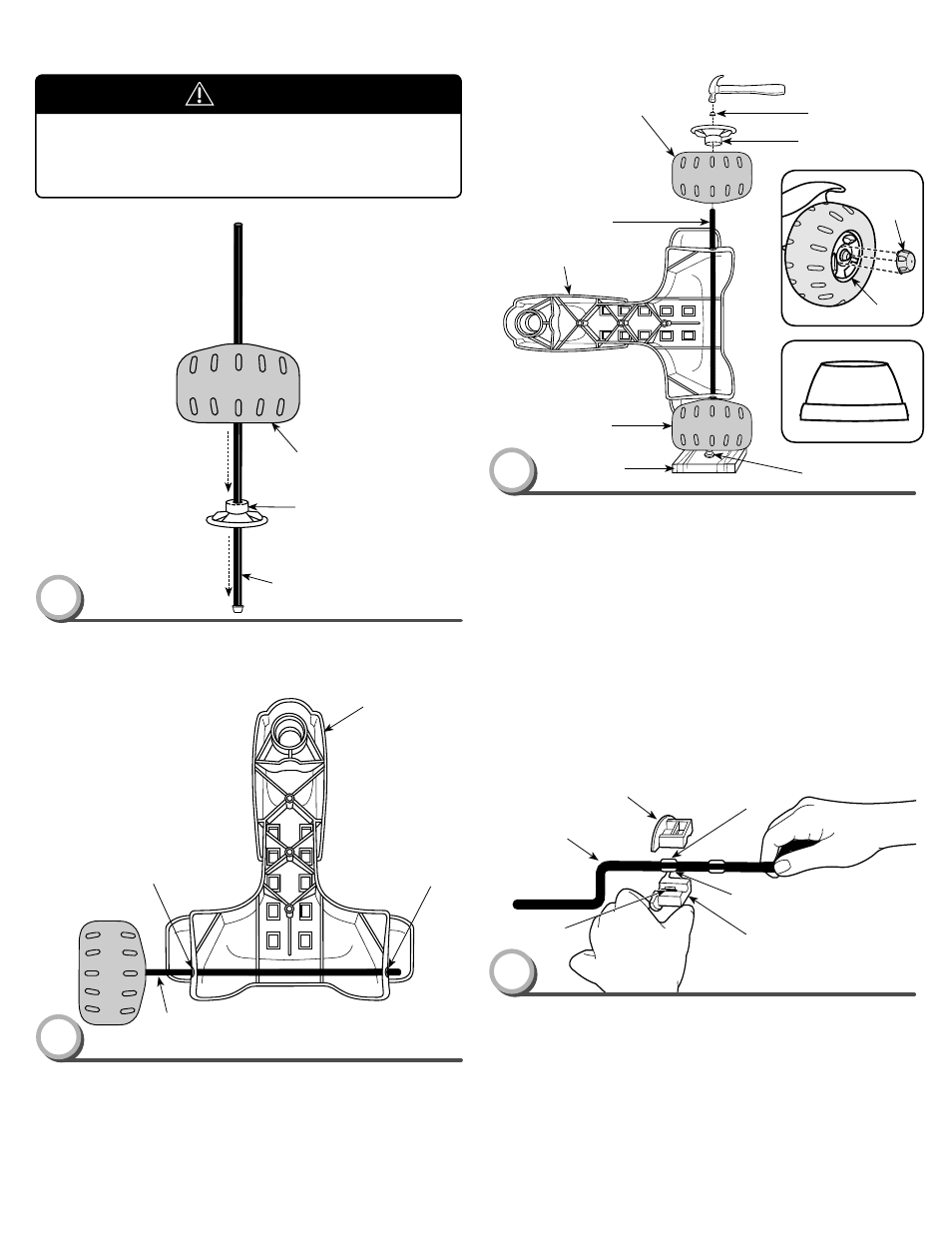

• Slide a hubcap (peg side up) onto the straight axle.
• Slide a rear wheel (indented side down) onto the
straight axle.
• Turn the frame upside down.
• Insert the straight axle through the holes in the rear of
the frame.
Rear Wheel
(Indented Side Down)
• Turn the frame on its side with the exposed end of the
straight axle up.
• Place the cap nut assembly tool under the assembled rear
wheel and onto the cap nut.
• Slide a rear wheel (indented side up) onto the end of the
straight axle.
• Slide a hubcap (peg side down) onto the straight axle.
• Place a cap nut on the end of the straight axle. Tap the
cap nut with a hammer. Gently pull the rear wheel up
to be sure the cap nut is securely attached to the
straight axle.
• Insert one of the tabs on a cover into a slot in the hubcap.
Push to snap the cover into place. Repeat this procedure to
attach the other cover to the other hubcap.
Cap Nut
Rear Wheel
(Indented Side Up)
Cap Nut
Assembly Tool
Assembled
Rear Wheel
Straight Axle
Hole Hole
Frame
Straight Axle
Hubcap
(Peg Side Up)
Hubcap
(Peg Side Down)
Frame
Straight Axle
Scrap Block
of Wood
Cover
Hubcap
• Fit two pedal hubs onto the pedal axle tabs. Make sure the
tabs fi t into the slot in each pedal hub.
Pedal Hub
Pedal Hub
Pedal Axle
Tab
Tab
Slot
Assembly
3
1
2
3
4
BOTTOM VIEW
