Assembly
Upper
Steering
Linkage
Front Axle
Assembly
Large Hole
in Dash
Steering
Column
Hole
Curved End
of Steering
Column

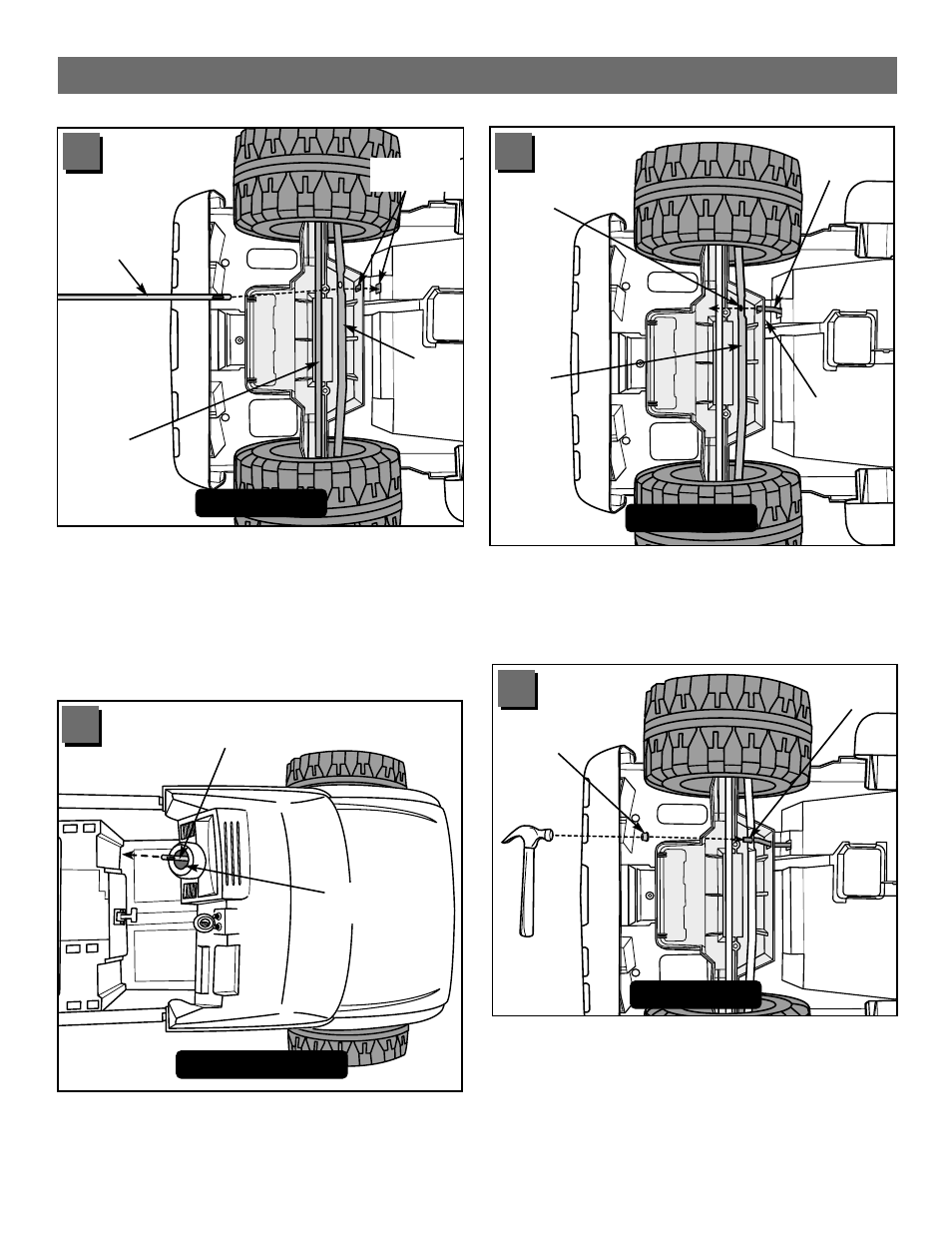

• From the underside of the vehicle body, fit the curved
end of the steering column into the hole in the upper
steering linkage.
Hint: You may need to rotate the steering column to fit it
into the hole.
• Fit the end of the steering column out through the large
hole in the dash.
Interior Cab View
Bottom View
Steering
Column
Cap Nut
• Fit a cap nut on the end of the steering column.
• Tap the cap nut with a hammer to secure it on the end
of the steering column.
Hint: You may want the help of another adult to support
the steering column while you tap the cap nut with
the hammer.
• Position the vehicle body upright.
Bottom View
Steering
Column
Lower
Steering
Linkage
Upper
Steering
Linkage
Rectangular
Openings
• Position the vehicle body on its side.
• From the underside of the vehicle body, fit the straight
end of the steering column between the upper and
lower steering linkages and through the rectangular
openings in the front axle assembly and vehicle body.
• Continue to slide the steering column into the
passenger compartment.
Bottom View
