GENERAL INFORMATION
The EVENAIR
®
should be installed in branch ducts serving individual rooms, where proper air flows cannot be achieved.
The EVENAIR
®
is not designed for installation in the main air supply ducts. Locating the EVENAIR
®
near the outlet end of
a problem branch duct will provide the best performance.
The EVENAIR
®
is designed to operate in round metal or flexible type ducts.
EXAMPLE: Use the 6" KS EVENAIR
®
for 6" ducts and the 8" KS EVENAIR
®
for 8" ducts. For larger duct diameters than
indicated or for rectangular ducts, use the Model JR-1 or JR-2 EVENAIR
®
or the Model AB-1 Air Booster.
CAUTION: The EVENAIR
®
should not be installed into vertical duct pipes. Do not use this product on clothes dryer vent
pipe.

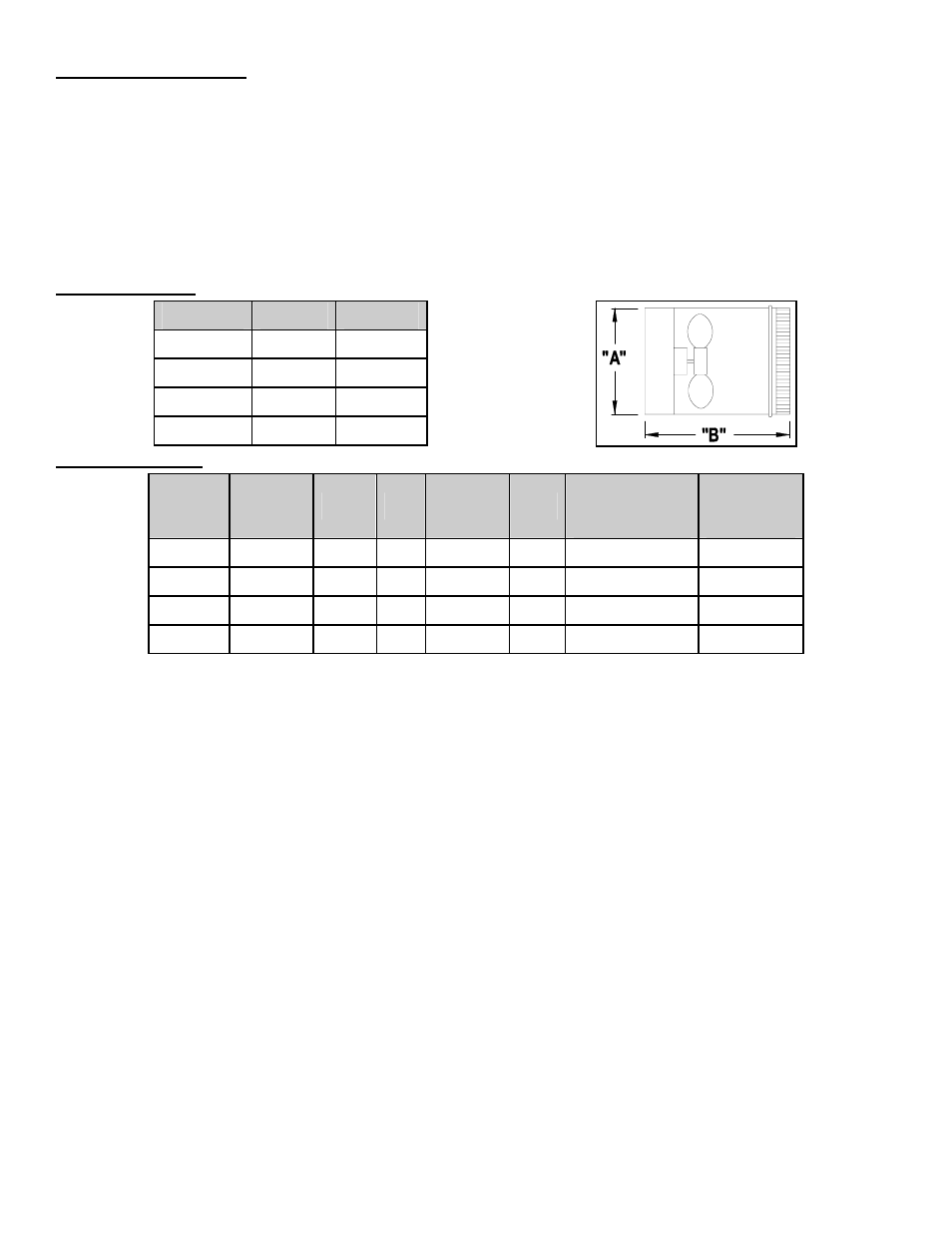

UNIT DIMENSIONS
MODEL
“A”
“B”
4” KS
4”
7-1/2”
5” KS
5”
7-1/2”
6” KS
6”
7-1/2”
8” KS
8”
7-1/2”
ELECTRICAL DATA
MODEL
VOLTS
AMPS
HZ
WATTS
RPM
THERMAL OR
IMPEDANCE
PROTECTION
MAXIMUM
TEMP
RATING*
4” KS
120AC
.29
60
19
3000
YES
155°
5” KS
120AC
.5
60
30
3000
YES
155°
6” KS
120AC
.6
60
35
3000
YES
180°
8” KS
120AC
.8
60
45
3000
YES
160°
*Do not install the EVENAIR
®
where the air temperature within the duct exceeds rated
temperature.
