1. MOUNTING
1-9
Outdoor mounting of waterproof-type remote station RB-8810-W
Remote station RB-8810-W (with waterproof-type handset HS-8800-W) can be mounted
outdoors if it is set in a waterproof box. The hanger should be coated as directed below with
silicone sealant for waterproofing.
Note 1:
Be sure to use a waterproof box to mount the RB-8810-W outdoors. The
waterproofing category of the RB-8810-W is IEC60529 IP56, however this should
be protected from the weather (IEC 60945).
Note 2:
Before sealing with silicone sealant (for waterproofing), do the termination setting
(only for termination device, see page 2-7), connect cables and conduct the
performance test. After sealing, do not open the handset hanger.

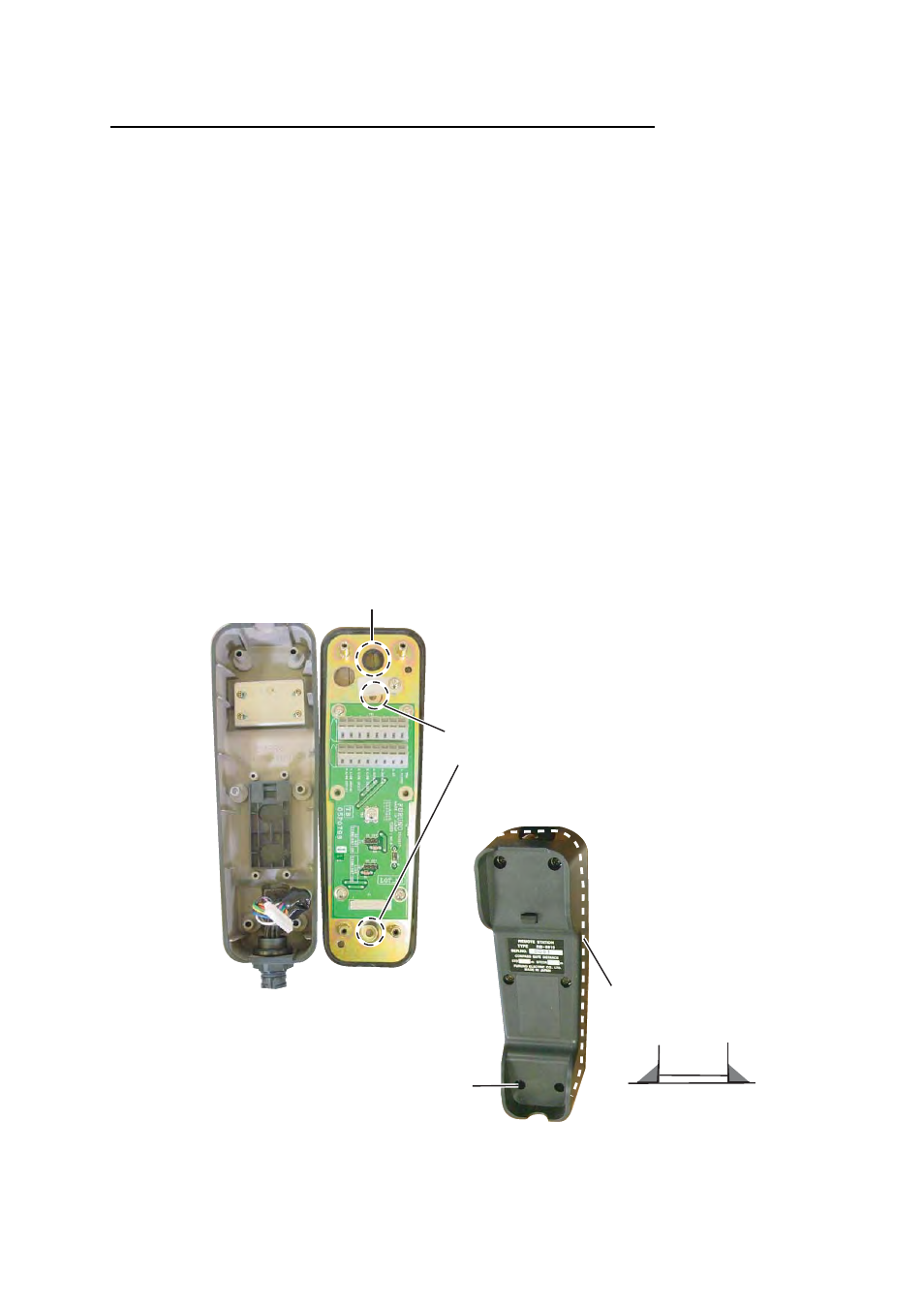

1. Fix the mounting base with self-tapping screws. Coat exposed part of these screws with
silicone sealant.
2. Attach the cable from the transceiver unit or junction box. Coat cable around cable
entrance with silicone sealant.
3. Fix the cover of the handset hanger. Coat junction between mounting base and cover
with silicone sealant.
2. Coat all around the cable
at cable entry.
3. Coat all around
the junction.
Note: Confirm that plastic washers are
in screw holes before fixing cover.
1. Coat self-tapping screws.
