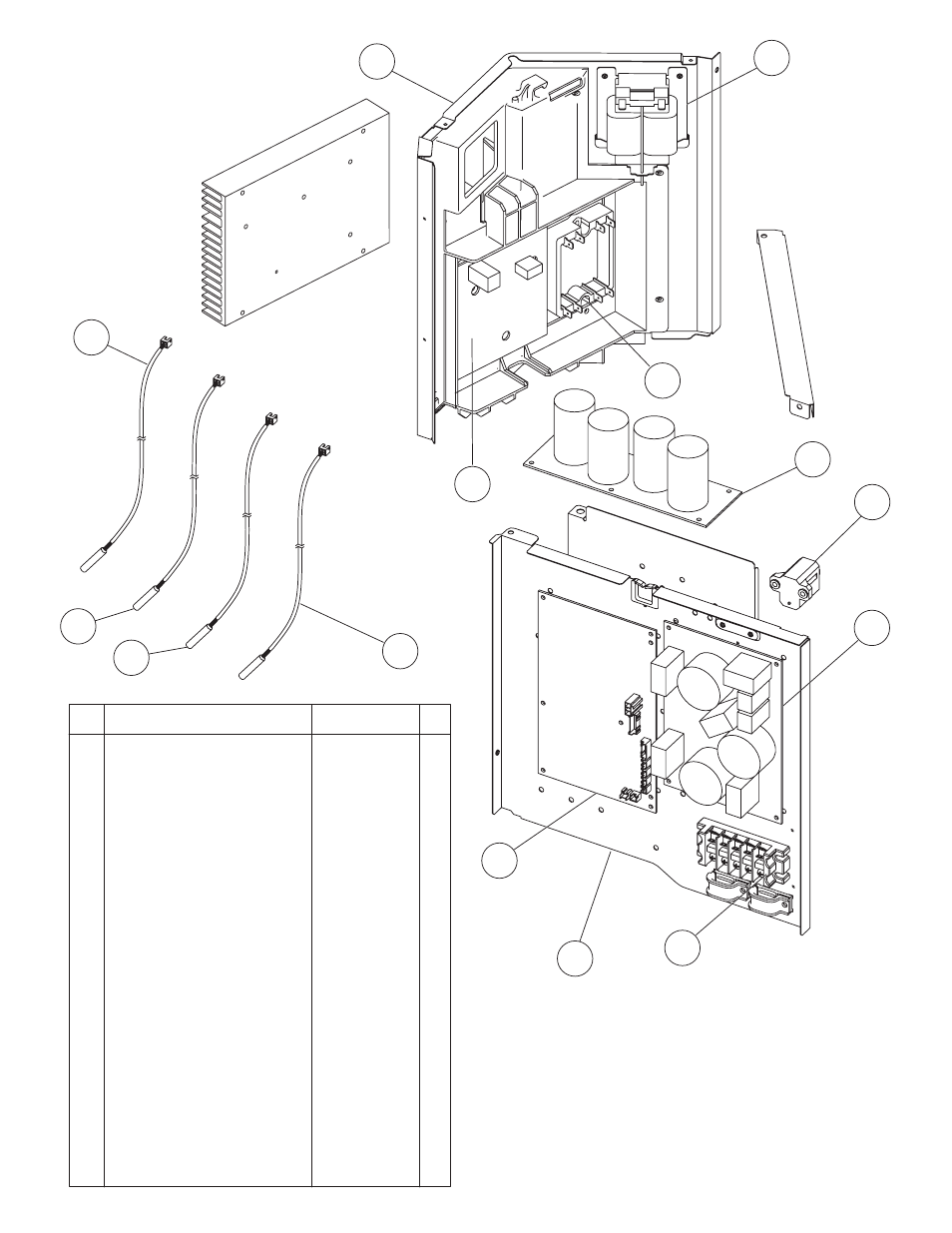

OUTDOOR UNIT
52
53
54
49
47
44
46
50
45
51
43
42
48
41
Connector : Blue
Connector : Orange
Connector : Green
Connector
: Red
41 PCB Case Assy 67201832
42 Inverter Case 67201930
43 ACTPM 67201850
44 PTC Thermistor 67201628
45 Inverter PCB Assy (24) 67201852
45 Inverter PCB Assy (18) 67201851
46 Power Supply PCB Assy (18) 67201857
46 Power Supply PCB Assy (24, 30) 67201856
47 Capacitor PCB Assy (18) 67201848
47 Capacitor PCB Assy (24, 30) 67201849
48 Transistor PCB Assy (24, 30) 67201854
48 Transistor PCB Assy (18) 67201853
49 Choke Coil 67201868
50 Terminal 67201908
51 Discharge Thermistor 67201869
52 Outdoor Thermistor 67201871
53 Compressor Thermistor 67201872
54 Heat Exchanger Thermistor 67201031
Ref. Part number Description
26
