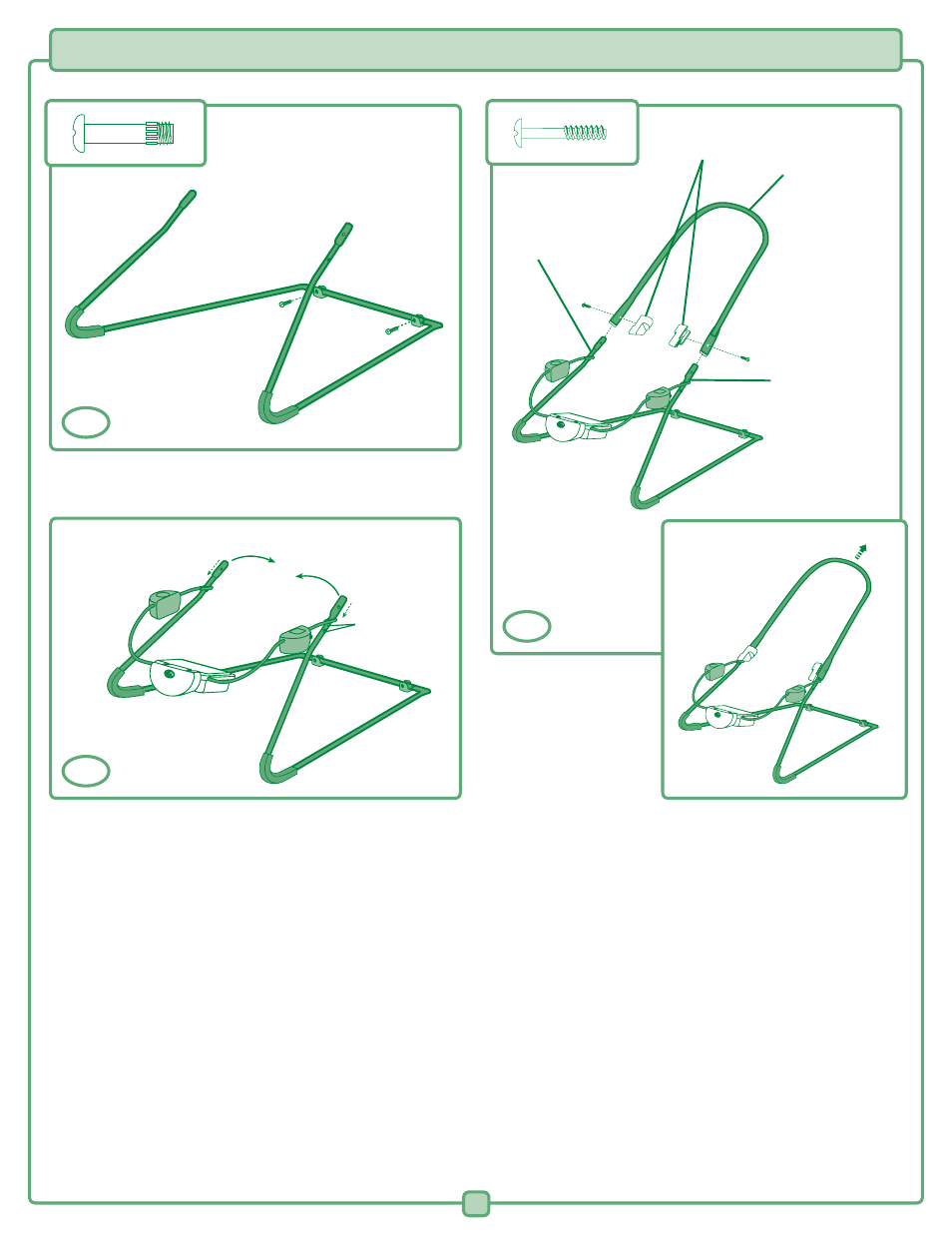

Assembly

Flex Base Wires Inward

• While flexing the base wires toward each other, hook the

footrest onto the ends of the base wires.

• Push the footrest

down completely to the tabs on the base

wires.

• Insert an M5 x 20 mm screw through each foot and tighten.

Tabs

• Position the seat back

tube above the base
assembly.

• Fit the seat back tube

completely onto the
base wires.

• Fit a retainer (rounded

side inward) to one
end of the seat back tube.

• Insert a #8 x 1,9 cm screw through the

outside hole in

the seat back tube and into the retainer.

• While holding the retainer in place, tighten the screw.
• Repeat this procedure to secure the other side of the

seat back tube to the base assembly using the remaining
retainer and #8 x 1,9 cm screw.

• Pull up on the seat back tube to be sure it is secure. If you

can remove either end of the seat back tube, you have not
assembled it correctly. Remove the screws and retainers.
Re-read and repeat Assembly step 5.

Base Wire

Seat Back Tube

Retainers

Pull Up
