all water and drain lines are connected .
Carefully inspect for any leaks around the machine and at the back. If
there is a leak, check if any connections are loose. You may need to
tighten any loose connections. Do not remove the water absorption
cushion. Check before each use to make sure it is not damaged.
CAUTION! If after completing these steps you are still unsure whether unit has
been properly installed, contact a qualified installer. We recommend
that the washer be installed by a certified technician to ensure that it
is properly installed.

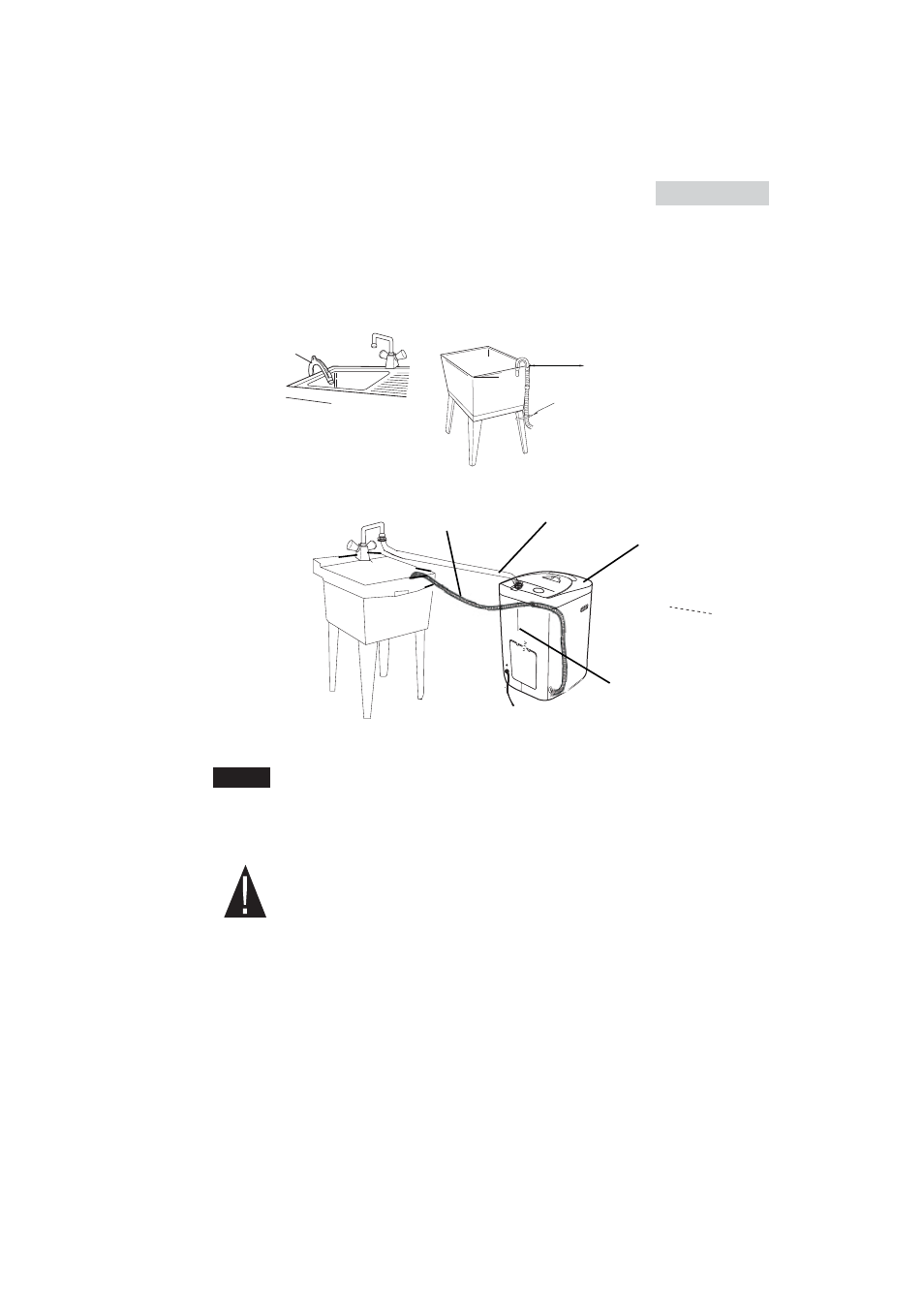

Final connection of washer to sink should look like this.
Note:
6. The drain hose must be placed into a drainpipe or sink at least 1-1/2 inches
in diameter. Use the gooseneck drain hook to hold the hose in place. To avoid
possible water back-up, the drain hose must reach a height of at least 31-1/2
inches minimum and 40 inches maximum.
Drain Hook
Drain Hook
Laund ry tub :
Just hang hook over sid e of sink or for a
m ore p erm anent use p lastic ties.
Plastic Tie
Plug fin the washer to a regular 120 Volt / 60 Hz, 15 Amps outlet, only after 7.
14
Washer
Water inlet hose
Drain hose
Rear View of Washer
SINK
