10 – English
ASSEMBLY

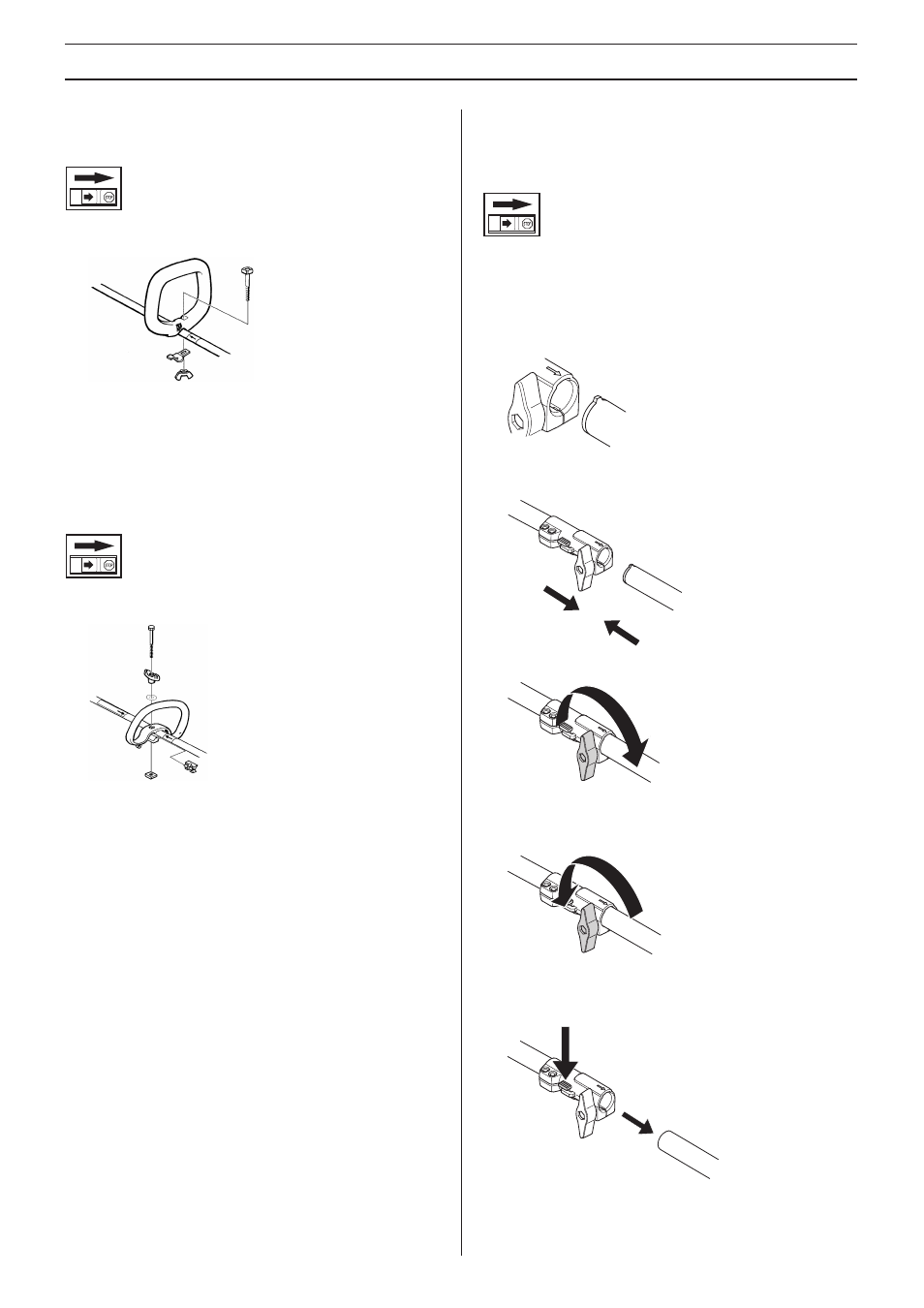

Fitting the loop handle
(325Cx)
• Position the handle on the shaft. Note that the handle
must be mounted below the arrow on the shaft.
• Fit the screw, securing plate and wing nut as shown in the
diagram.
• Tighten the wing nut.
Fitting the loop handle
(323L, 323LD, 325Lx, 325LDx)
• Clip the loop handle onto the shaft. Note that the loop
handle must be fitted between the arrows on the shaft.
• Slide the spacer into the slot in the loop handle.
• 323L/323LD: Fit the nut, washer and screw.
325Lx/325LDx: Fit the nut, knob and screw. Do not
overtighten.
• Now adjust the trimmer to give a comfortable working
position. Tighten the bolt/knob.
Assembling and dismantling the
two-piece shaft
(323LD, 325LDx)
Assembly:
• Loosen the coupling by turning the knob.
• Align the tab of the attachment (A) with the arrow on the
coupling (B).
• Push the attachment into the coupling until the attachment
snaps into place.
• Before using the unit, tighten the knob securely.
Dismantling:
• Loosen the coupling by turning the knob (at least 3 times).
• Push and hold the button (C). While securely holding the
engine end, pull the attachment straight out of the
coupling.
A
B
C
