CABLE

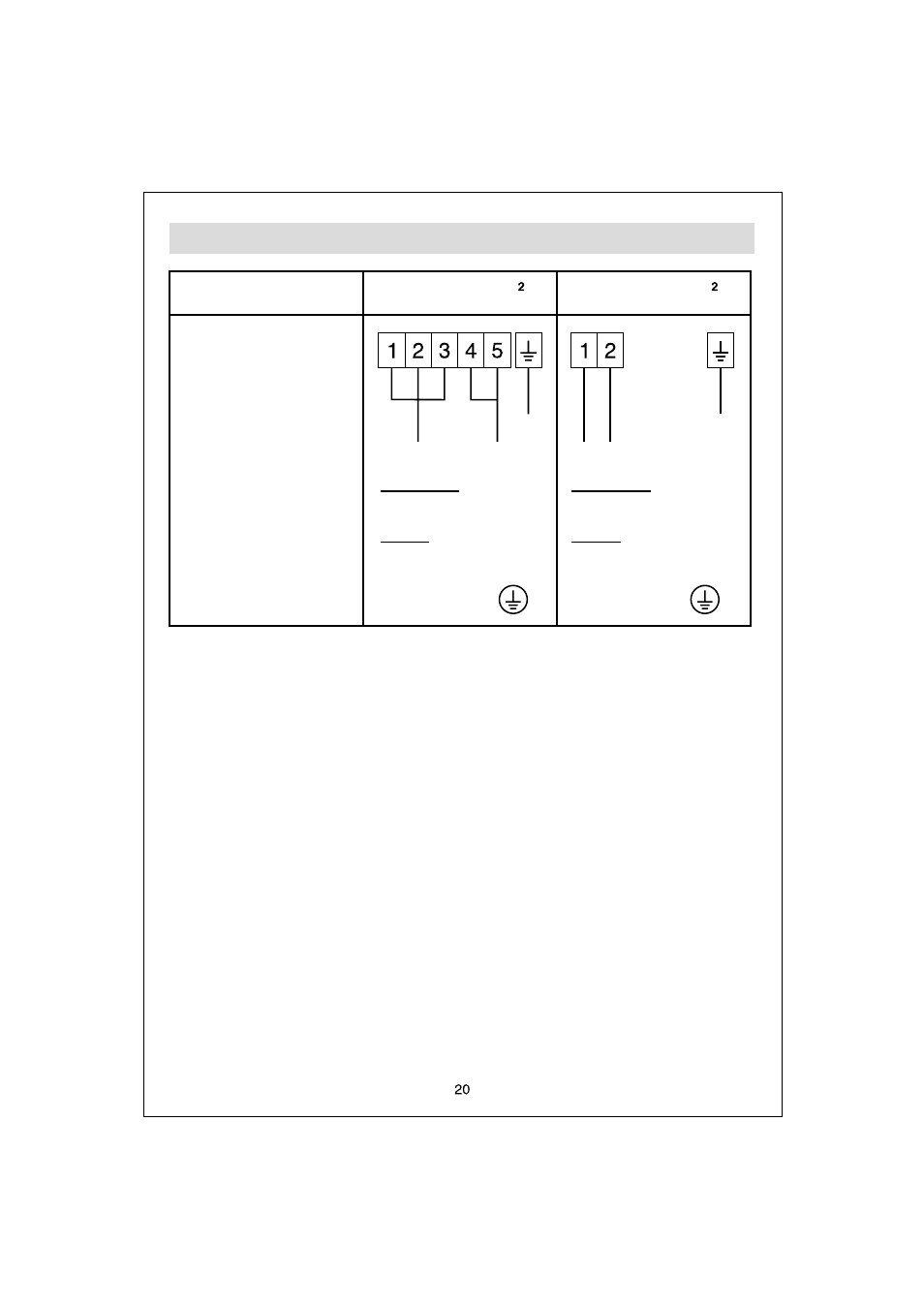

Area 3 G 2,5 mm 3 G 2,5 mm
Connection to
the terminal
block
PH N
E
PH N
E
To shunt : make
a bridge with a
shunt bar 1 rst Phase
Shunt 1-2
Shunt 2-3
Neutral
Shunt 4-5
Earth
1 rst Phase
Shunt 1
Neutral
Shunt 2
Earth
IMPORTANT: Blue wire = Neutral Yellow/green wire = Earth
For the connection to the terminal block, you must:
• respect the n
°
1,2,3,4, and 5,
• tighten the screws,
• do not forget to fix the earth wire (yellow/green) on the earth terminal n
°
6
