OPERATION

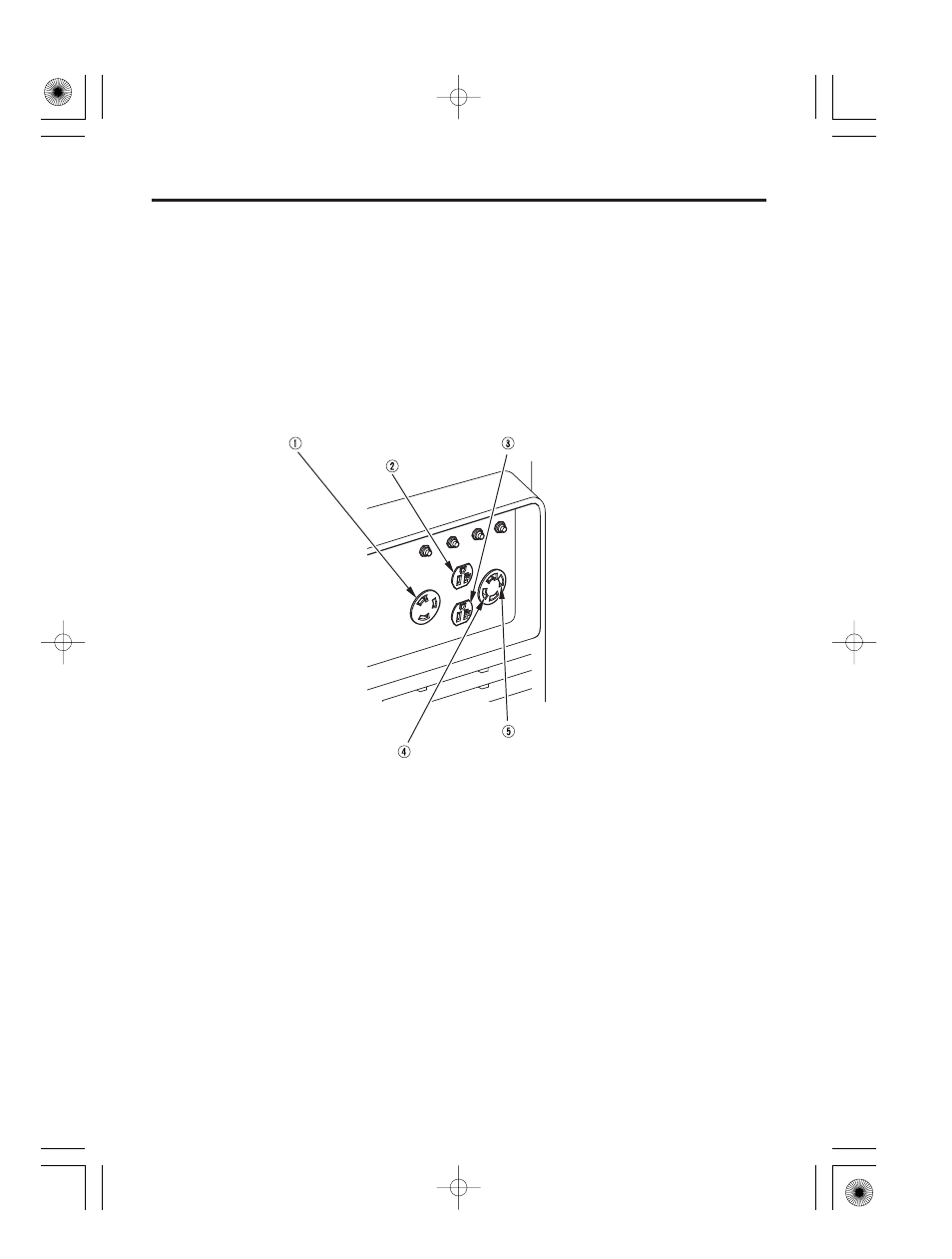

120V 20A
120/240V 30A
120/240V 30A
120V 30A 120V 20A
Example: EB5000i
Receptacle 1 has a 15A load connected to it. Receptacle 3 has a 10A
load connected to it. Both receptacles are powered by main power
circuit I. The equation tells us that the total power draw on circuit I is
25A. This is a substantial overload of this circuit. To eliminate the
excess power draw on circuit I, the load from receptacle 3 should be
switched to receptacle 2. Now circuit I is powering the 15A load (less
than 18.8A) and circuit II is powering the 10A load (less than 18.8A).
