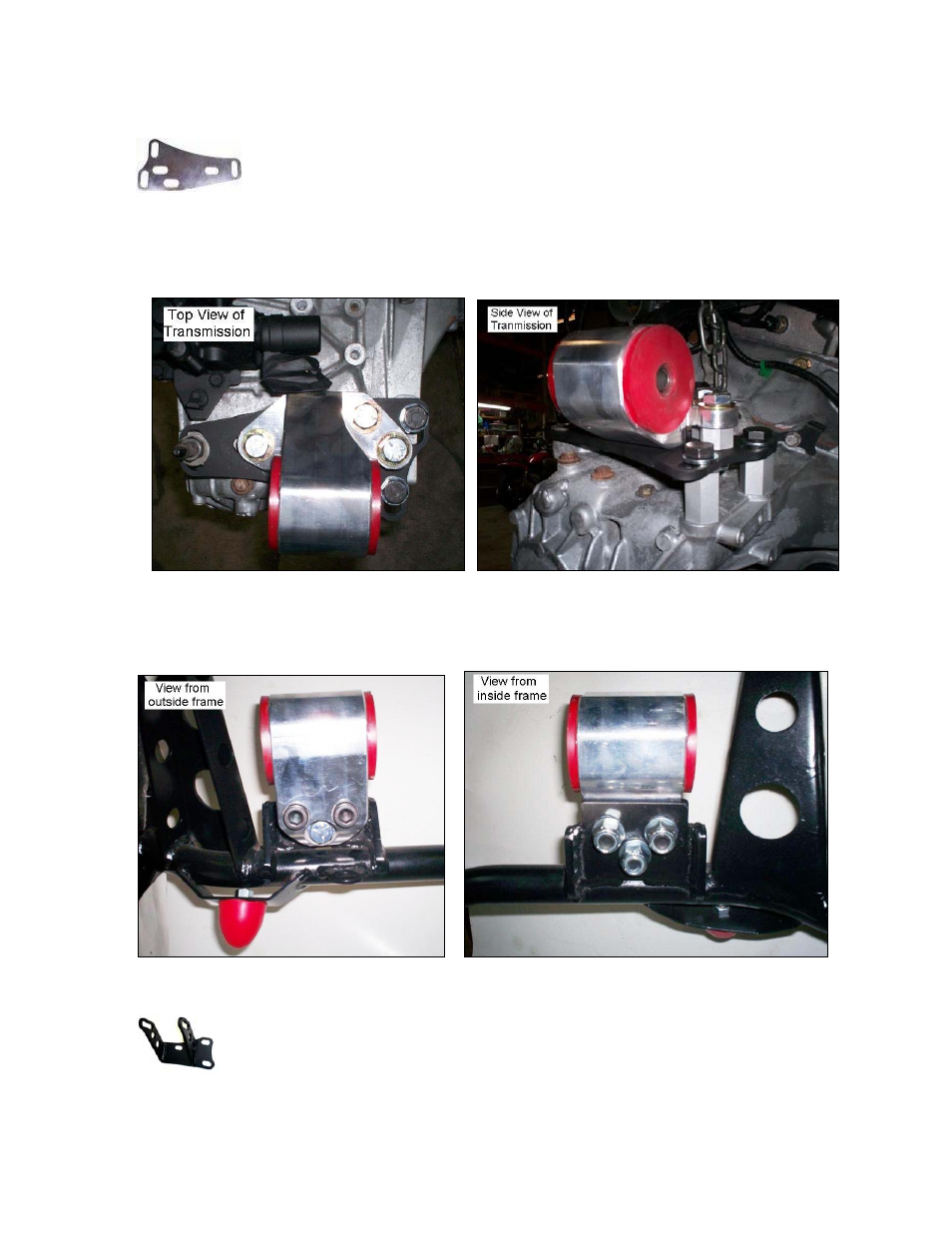

Installing Engine into Subframe:
Step 1: Drill stock B Series Honda engine and transmission mounts to ½”.
Step 2:
Attach supplied transmission mount adaptor plate using the
supplied hardware in the sequence that it is attached to the plate. Then attach Honda
B Series transmission mount to transmission.
Step 3: Attach Honda B Series engine mount (#210280) to MTK frame as shown.
Make sure that your mount is for a Honda DC chassis.
Step 4:
Attach MTK engine mounting bracket to engine block as shown. For
some engines, you will need to use the supplied spacer plates for clearance.
