-11-
BASIC CONNECTION

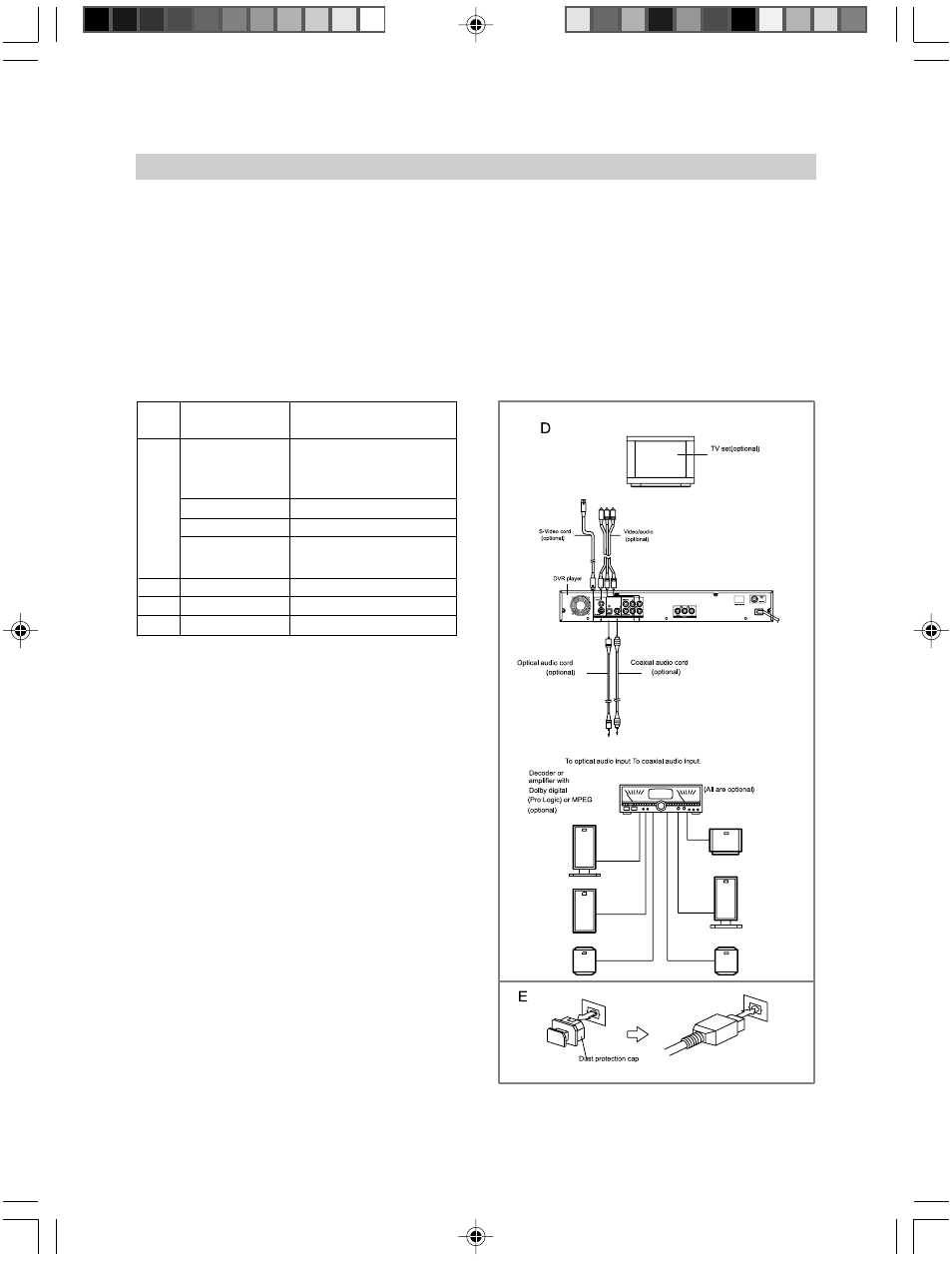

D: Connecting to a decoder with Dolby digital (AC-3)processing or MPEG processing
When DVDs recorded in Dolby digital or MPEG audio are played, Dolby digital bit stream or MPEG audio bit stream is
output from the player’s OPTICAL digital audio output connector or COAXIAL digital audio output connector. When the
player is connected to a Dolby digital decoder or MPEG audio decoder, you can enjoy theater-quality at your home.(see
Graph E)
Take off the protective cap of optical cables and point each end of optical cables at DVD player and the amplifier with
optical input and the locating slot of optical jack, make sure they have been connected firmly. Keep the cap well and put
it into its output jacks again to avoid dust and other sending-out laser which may cause hazard when the jacks not in use.
*1 Sound having 96KHz sampling is converted to 48 kHZ
sampling when it is output from the unit’s coaxial digital
audio output connector
Note: Please refer to the setup operations for set
method.
For your reference:
u Dolby Digital(AC-3) is a digital sound compression tech-
nique developed by the Dolby Laboratories Licensing
Corporation. Supporting 5.1-channel
u Linear PCM is a signal-recording format used in CDs.
While CDs are recorded in 44.1KHz/16bit,DVDs are
48KHz /16 bit up to 96KHz/24 bit.
Caution for the optical/coaxial digital audio output
connector
u Do not connect an amplifier (with an optical/coaxial digi-
tal input connector) which does not contain the Dolby
Digital(AC-3) or MPEG audio decoder otherwise it may
be harmful to your ears and destroy your speakers.
u Choose “RAW” in the digital audio setup to effect Opti-
cal/ Coaxial digital output when playing disc with DTS
output or Dolby digital ouput
DISC SOUND RECORDING DIGITAL OUTPUT SETTING
FORMAT
DVD DOLBY DIGITAL DIGITAL SIGNAL
(AC-3) RAW OR PCM
48KHz/16bit
DTS DTS RAW
LINEAR PCM LINEAR PCM 12
MPEG1/MPEG2 AUDIO BITSTREAM OR PCM(2
CHANNEL (16bit)
VCD MPEG1 PCM(44.1KHz SAMPLING)
CD LINER PCM PCM(44.1KHz SAMPLING)
MP3 MP3 PCM(44.1KHz SAMPLING)
Concerning the audio output from the unit’s co-
axial digital audio output connector
