308996

25

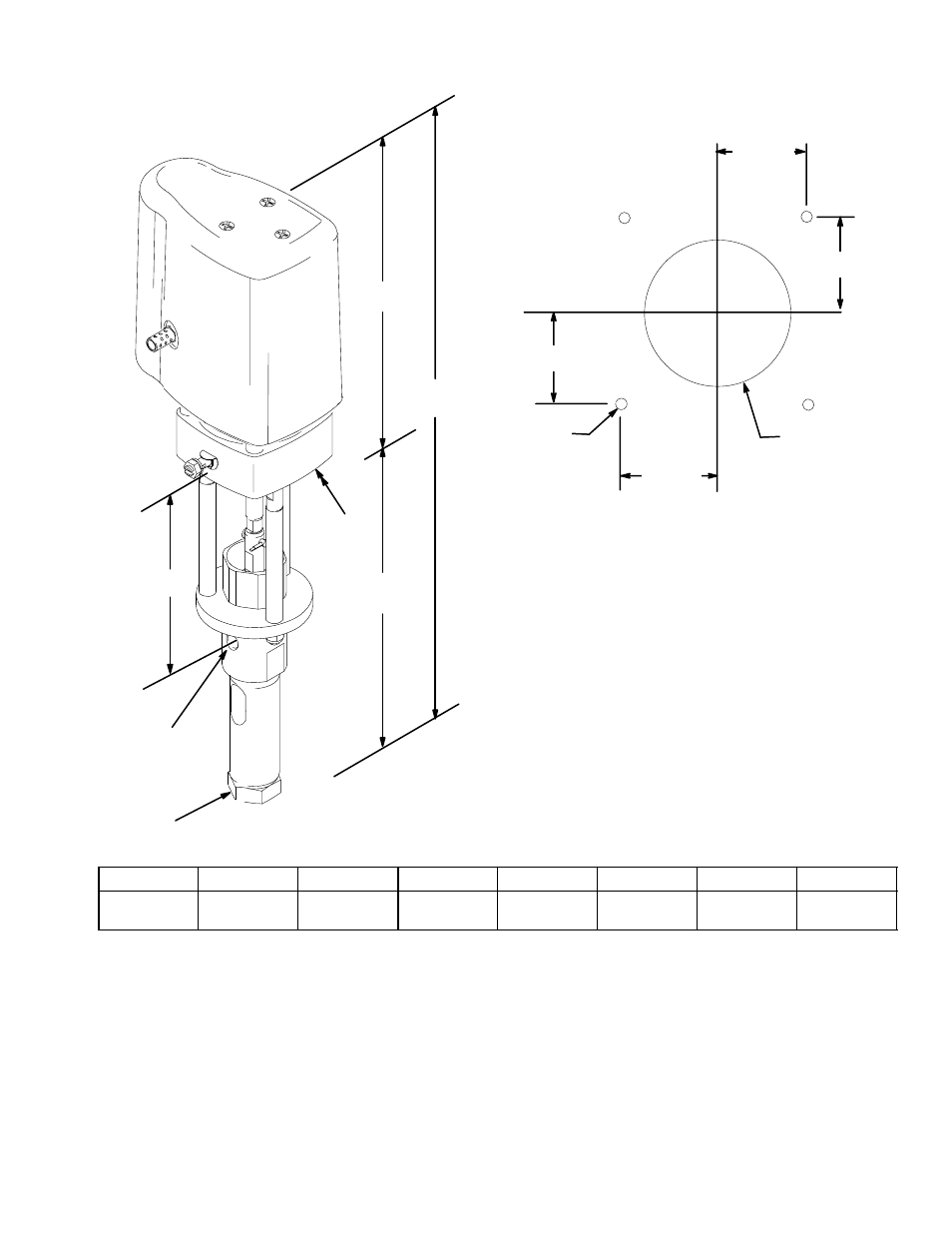

Dimensions

Model 241595 Shown

A

B

C

D

E

F

G

9092B

Mounting Hole

Layout

35.6 mm
(1.40”)

89 mm
(3.50”)
DIA

0653

2x 7mm

0.28”

DIA

35.6 mm
(1.40”)

35.6 mm
(1.40”)

35.6 mm
(1.40”)

Pump Model

A

B

C

D

E

F

G

241594,

241595

513 mm

(20.2 in.)

304 mm

(11.97in.)

209 mm

(8.23 in.)

159 mm

(6.25 in.)

3/8 in. npt(f)

1/4 in. npt(f)

3/8 npt(f)
