Heat-N-Glo Lifestyles • Patio Campfi re • 4004-001 Rev D • 07/05
10
10
Reference Materials
A. Service Parts List

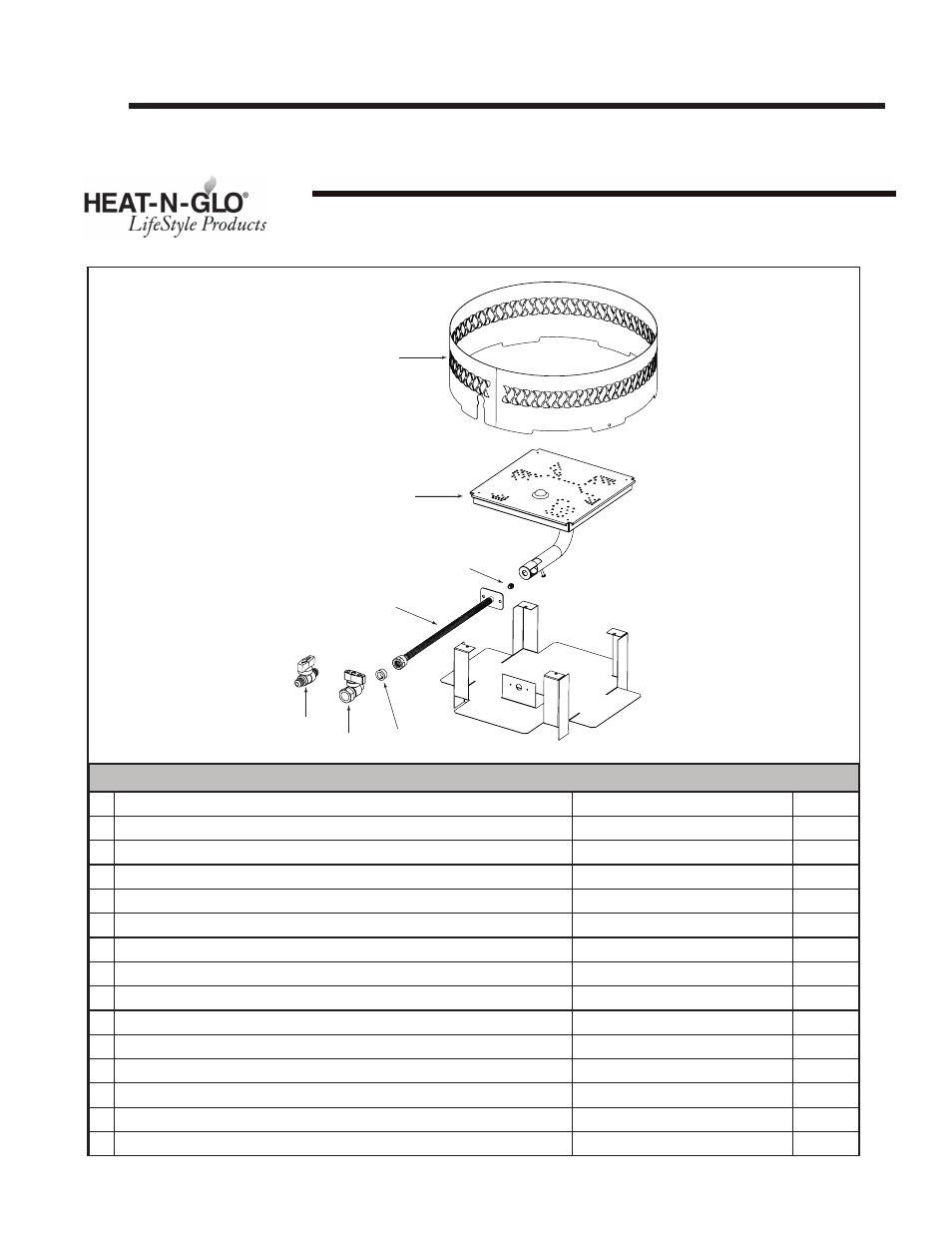

Exploded Parts Diagram
PCF-HNG
PCFL-HNG
Service Parts
PATIO CAMPFIRE
Beginning Manufacturing Date: N/A
Ending Manufacturing Date: Active
1
2
4
3
5
7
6
#
Description of Part
PCF-HNG & PCFL-HNG
Qty.
1
Ring
35272
1
2
Burner Assembly
35323
1
3
Flex Tube
4021-233
1
4
Orifi ce - NG (#27)
582-827
1
4
Orifi ce - LP (803-803)
582-844
1
5
Flex Grommet
35131
1
6
Ball Valve (LP)
477-311
1
7
On/Off Valve (NG)
15697
1
Hose / Regulator Assy (LP)
4004-014
1
