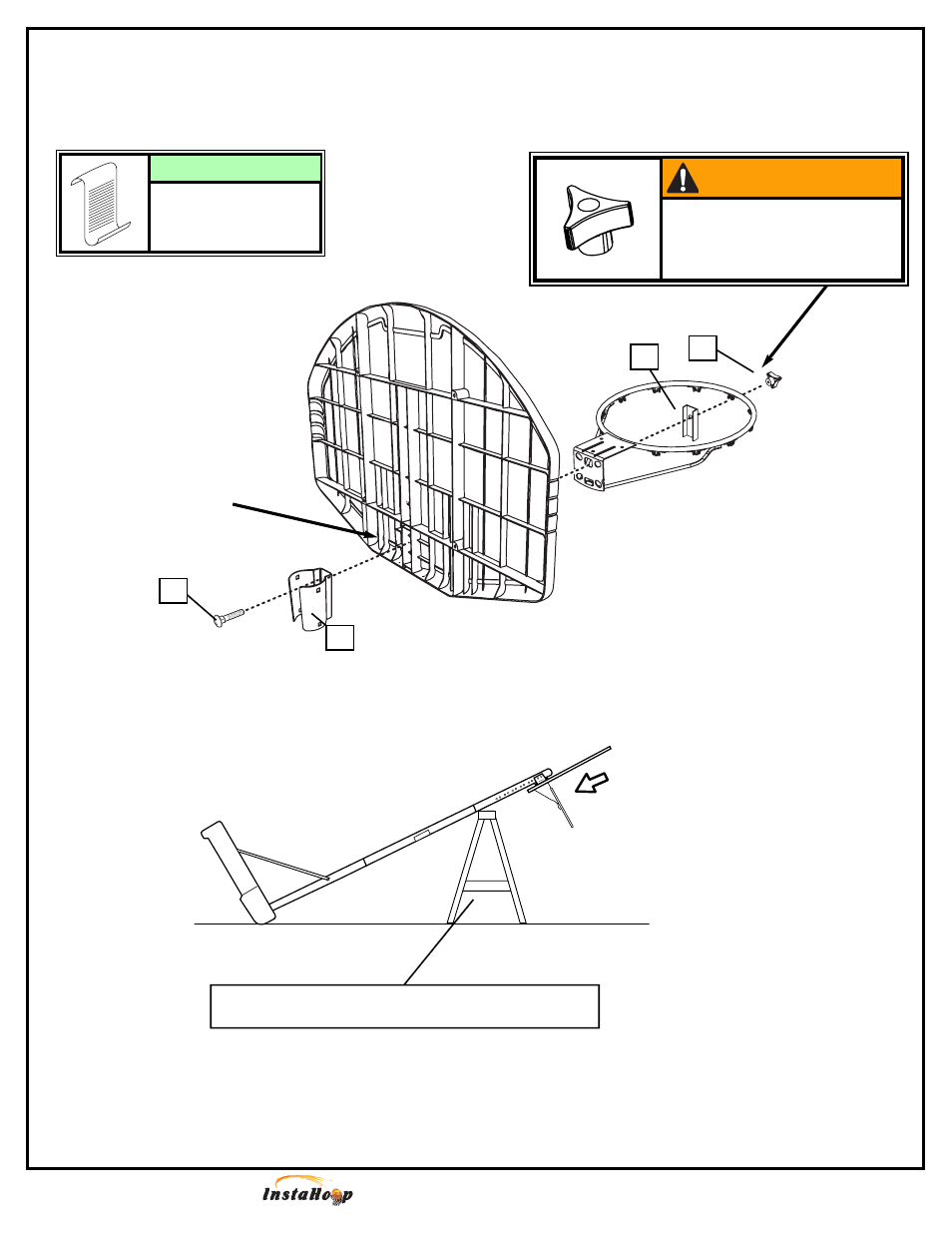

Pole bracket will need to be lightly pressed into backboard ribbing. Be sure to press
completely into place. Attach rim to backboard and pole bracket (20) with knob (17),
reinforcement bracket (24), and carriage bolt (16) as shown. Tighten knob completely.
PRESS BRACKET (20)
INTO PLACE HERE
SAWHORSE OR SUPPORT TABLE
16
17
24
20
7.
Carefully tip unit forward and slide backboard
assembly onto pole as shown.
KNOB MUST BE TIGHTENED
COMPLETELY AND
CHECKED FOR TIGHTNESS
BEFORE EACH USE.
WARNING!
BOARD STYLE
MAY VARY
NOTE:
