13. Make sure that all parts of the elliptical crosstrainer are properly tightened. Note: Some hardware

may be left over after assembly is completed. To protect the floor or carpet from damage, place a mat

under the elliptical crosstrainer.

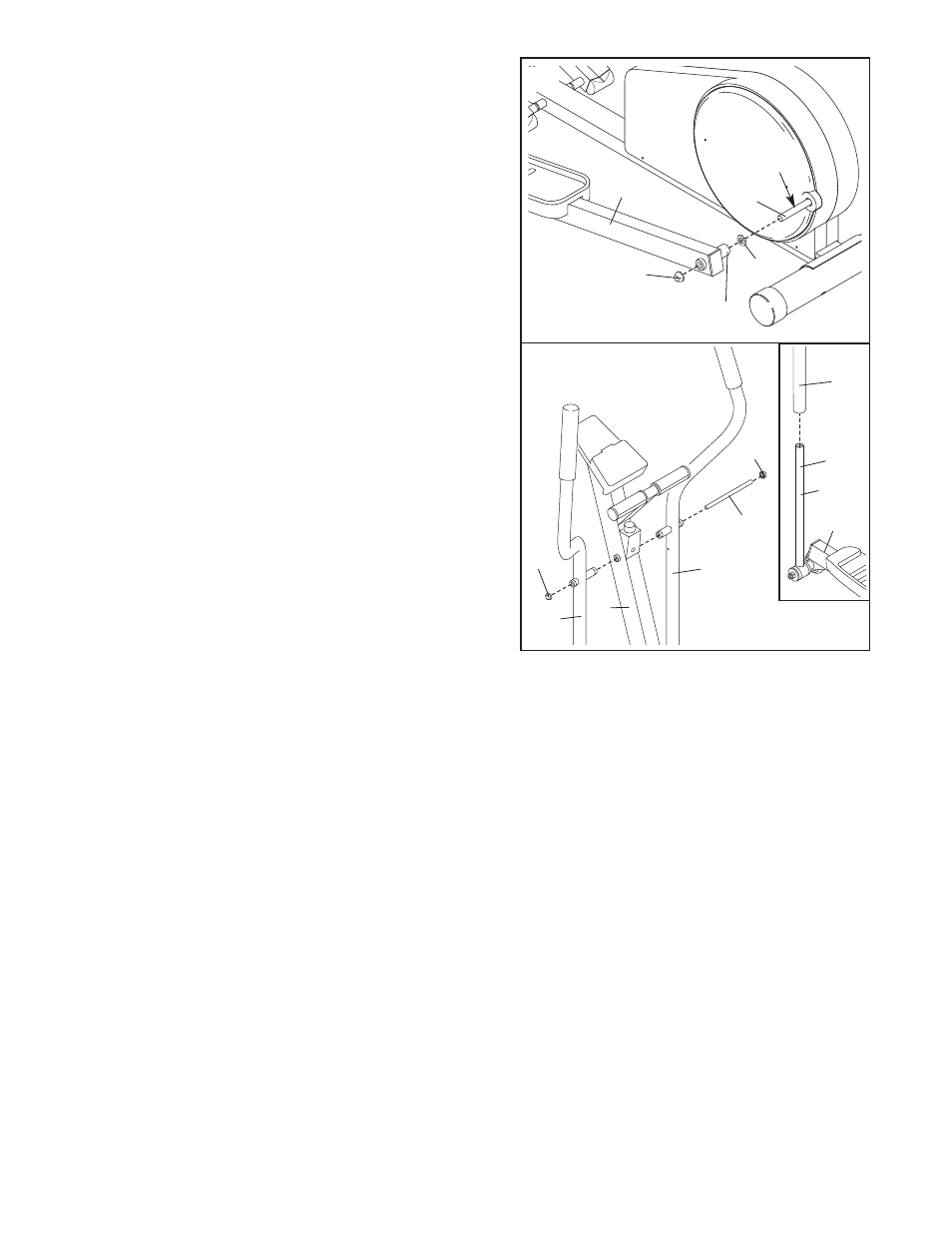

12. Refer to the inset drawing. Apply a small amount of

the included Teflon

®

lubricant to a paper towel; rub a

thin film of the lubricant onto each of the Chrome

Tubes (21). Slide an Upper Body Arm (7) onto each

Chrome Tube. Make sure that the Upper Body Arms

are turned as shown.

Tap a 5/8” Axle Cap (85) onto one end of the Axle

(19). Insert the Axle through one of the Upper Body

Arms (7) and then through the Upright (2). Slide the

other Upper Body Arm (7) onto the Axle. Tap another

5/8” Axle Cap (85) onto the Axle.

19

2

12

21

Lube

4

7

85

7

7

85

11. Apply a small amount of grease to the axle on the left

Crank Arm (6).

Slide a Nylon Washer (11) and the Left Pedal Arm (3)

onto the axle on the left Crank Arm (6). Note: It may be

helpful to use a rubber mallet to tap these parts on. Be

careful not to confuse the Left Pedal Arm with the

Right Pedal Arm (not shown); look at the position

of the round tube to identify the Left Pedal Arm.

Next, tap a 3/4” Axle Cap (61) onto the axle.

Attach the Right Pedal Arm (not shown) in the same way.

6

Grease

11

61

3

11

Round Tube
