5

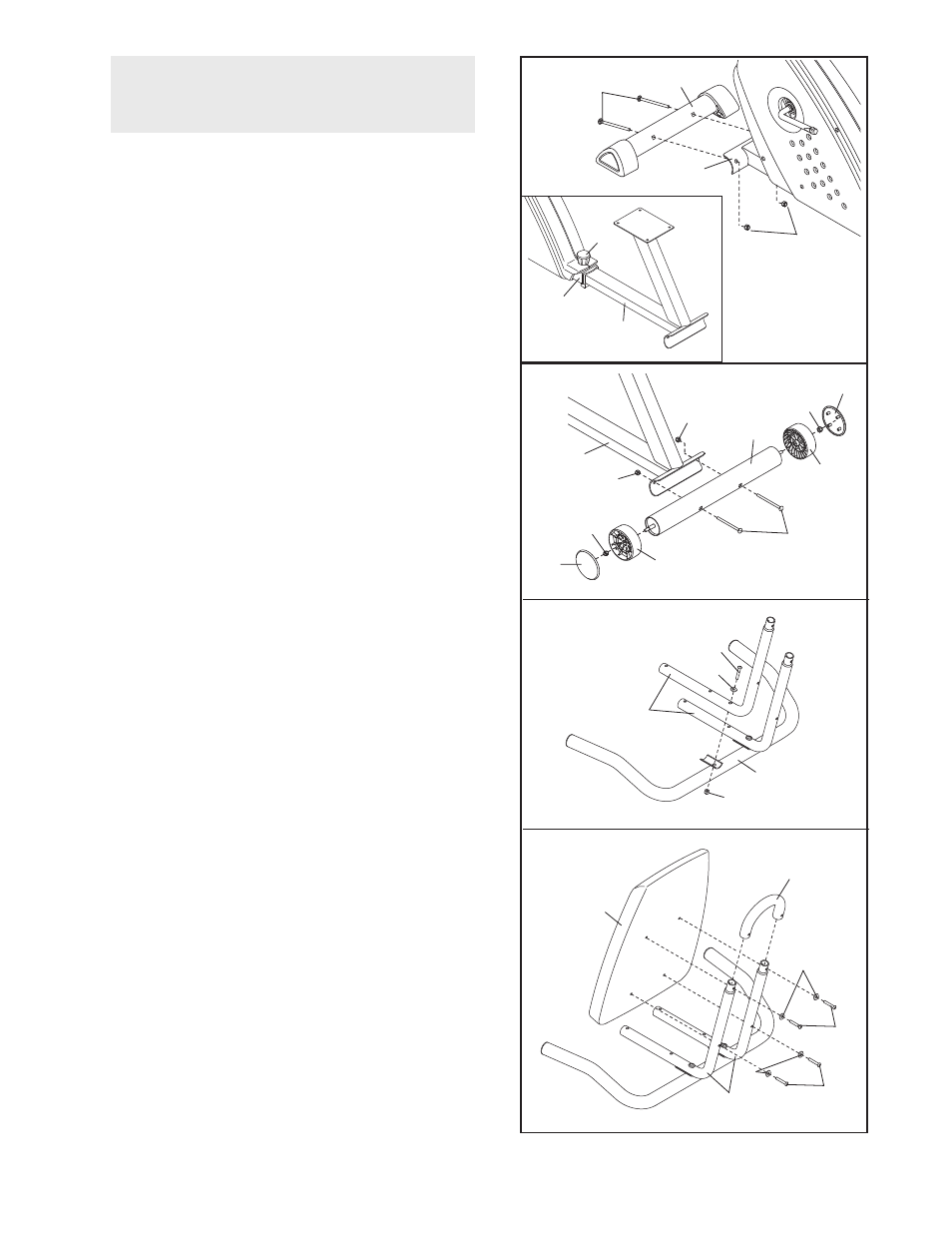

3. Attach a Seat Frame (7) to the Handlebar (6) with an
M8 x 70mm Button Bolt (54), an M8 Split Washer (59),
and an M8 Nylon Locknut (60). Do not tighten the
Button Bolt yet.
Attach the other Seat Frame (7) in the same way.
7
6
60
54
59
4. Slide the Seat Frame Top (8) onto the Seat Frames
(7). Attach the Backrest (5) to the Seat Frames and
the Seat Frame Top with four M6 x 38mm Button
Screws (48) and four M6 Washers (55). Do not tight-
en the Button Screws yet.
4
5
7
55
55
48
48
8
1.
While another person lifts the front of the Frame (1),
attach the Front Stabilizer (3) to the Frame with two
M10 x 75mm Carriage Bolts (51) and two M10 Nylon
Locknuts (63).
See the inset drawing. Loosen the Adjustment Knob
(17), slide the Rear Frame (2) out of the Frame (1),
and then retighten the Adjustment Knob.
3 51
1
1
2. Attach the Wheels (18) to the Rear Stabilizer (4) with
two M8 Nylon Locknuts (60). Press a Wheel Cap (19)
onto each Wheel.
Attach the Rear Stabilizer (4) to the Rear Frame (2)
with two M10 x 75mm Carriage Bolts (51) and two
M10 Nylon Locknuts (63).
51
18
4
19
60
18 19
2
63
63
60
2
3
To make assembly easier, read the information
on page 4 before you begin assembling the
exercise cycle.
63
17
2
1
