Hitachi FCJ 55 - Manual

Representative office in Europe
Hitachi Power Tools Europe GmbH
Siemensring 34, 47877 Willich 1, F. R. Germany
Head office in Japan
Hitachi Koki Co., Ltd.
Shinagawa Intercity Tower A, 15-1, Konan 2-chome,
Minato-ku, Tokyo, Japan
31. 10. 2003
K. Kato
Board Director
Italiano
DICHIARAZIONE DI CONFORMITÀ CE
Si dichiara sotto nostra responsabilità che questo
prodotto è conforme agli standard o ai documenti
standardizzati EN50144, EN55014 e EN61000-3
conforme alle direttive 73/23/CEE, 89/336/CEE e 98/37/
CE del concilio.
Questa dichiarazione è applicabile ai prodotti cui sono
applicati i marchi CE.
Nederlands
EC VERKLARING VAN CONFORMITEIT
Wij verklaren onder eigen verantwoordelijkheid dat dit
produkt conform de richtlijnen of gestandardiseerde
documenten EN50144, EN55014 en EN61000-3 voldoet
aan de eisen van EEG Bepalingen 73/23/EEG, 89/336/
EEG en 98/37/EC.
Deze verklaring is van toepassing op produkten
voorzien van de CE-markeringen.
Español
DECLARACIÓN DE CONFORMIDAD DE LA CE
Declaramos bajo nuestra única responsabilidad que
este producto está de acuerdo con las normas o con
los documentos de normalización EN50144, EN55014
y EN61000-3, según indican las Directrices del Consejo
73/23/CEE, 89/336/CEE y 98/37/CE.
Esta declaración se aplica a los productos con marcas
de la CE.
English
EC DECLARATION OF CONFORMITY
We declare under our sole responsibility that this
product is in conformity with standards or standardized
documents EN50144, EN55014 and EN61000-3 in
accordance with Council Directives 73/23/EEC, 89/336/
EEC and 98/37/EC.
This declaration is applicable to the product affixed CE
marking.
Deutsch
ERKLÄRUNG ZUR KONFORMITÄT MIT CE-REGELN
Wir erklären mit alleiniger Verantwortung, daß dieses
Produkt den Standards oder standardisierten
Dokumenten EN50144, EN55014 und EN61000-3 in
Übereinstimmung mit den Direktiven des Europarats
73/23/EWG, 89/336/EWG und 98/37/CE entspricht.
Diese Erklärung gilt für Produkte, die die CE-Markierung
tragen.
Français
DECLARATION DE CONFORMITE CE
Nous déclarons sous notre seule et entière respon-
sabilité que ce produit est conforme aux normes ou
documents normalisés EN50144, EN55014 et EN61000-
3 en accord avec les Directives 73/23/CEE, 89/336/CEE
et 98/37/CE du Conseil.
Cette déclaration s’applique aux produits désignés CE.
402
Code No. C99048473 N
Printed in Japan
Hitachi Koki Co., Ltd.
JIG SAW
STICHSÄGE
SCIE SAUTEUSE
SEGHETTO ALTERNATIVO
DECOUPEERZAAGMACHINE
SIERRA CALADORA
Read through carefully and understand these instructions before use.
Diese Anleitung vor Benutzung des Werkzeugs sorgfältig durchlesen und verstehen.
Lire soigneusement et bien assimiler ces instructions avant usage.
Prima dell’uso leggere attentamente e comprendera queste istruzioni.
Deze gebruiksaanwijzing s.v.p. voor gebruik zorgvuldig doorlezen.
Leer cuidadosamente y comprender estas instrucciones antes del uso.
Handling instructions
Bedienungsanleitung
Mode d’emploi
Istruzioni per l’uso
Gebruiksaanwijzing
Instrucciones de manejo
FCJ 55VA • FCJ 55

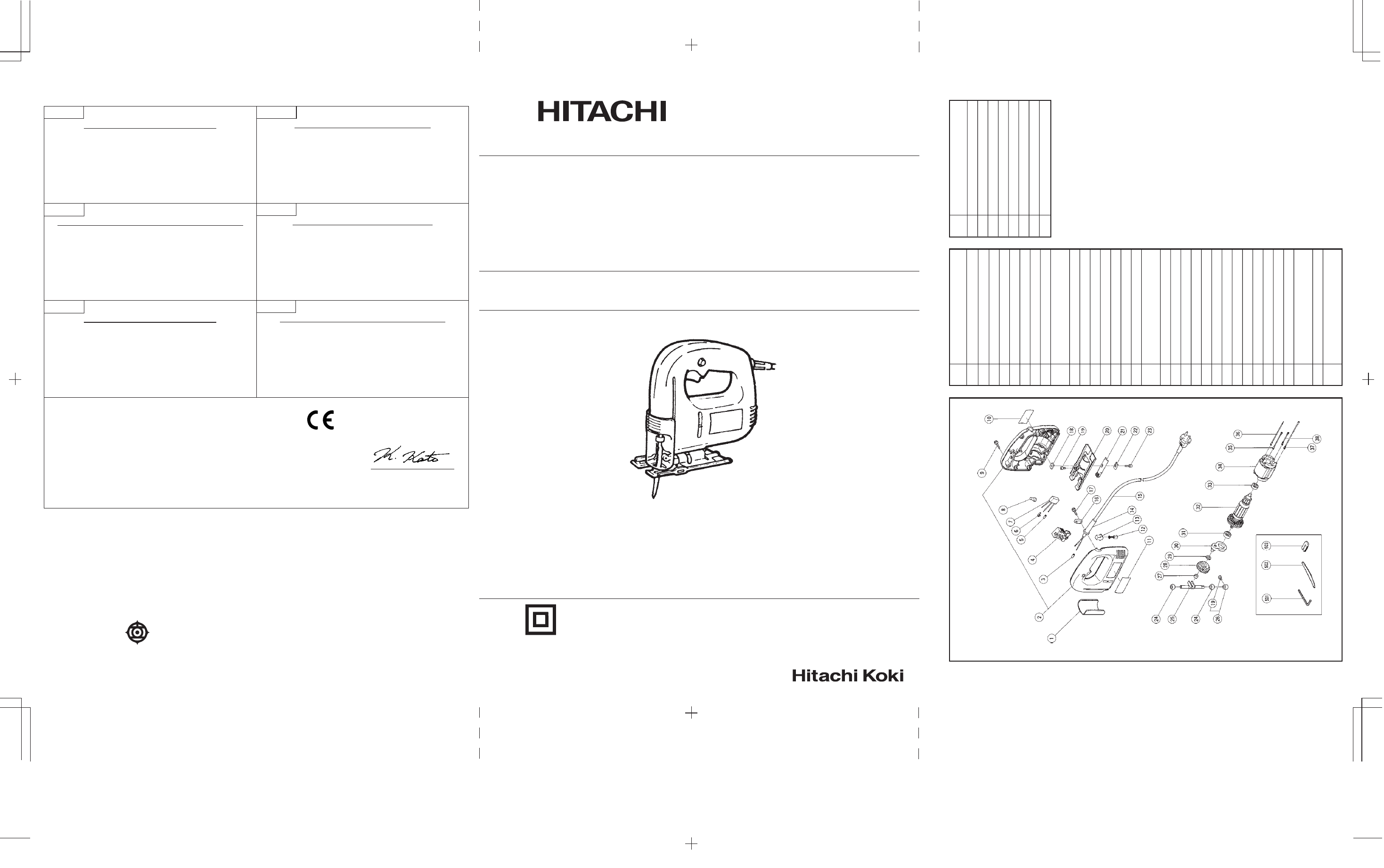

The exploded assembly drawing should be used only for authorized service center.
Item
No.
Part Name
34
Stator
35
Internal Wire (A)
36
Internal Wire
37
Internal Wire
38
Internal Wire (A)
501
Hex. Bar Wrench 3mm
502
Jig Saw Blades No.31
503
Splinter Guard
Parts are subject to possible modification without notice due to improvements. The drawing and the list are parts structural drawing and parts list of model FCJ55VA. For model FCJ55 refer to the drawing and the list.
FCJ55VA
FCJ55VA Item
No.
Part Name
1
Chip Cover
2
Housing (A).(B) Set
3
Tube (D)
4S
w
itch
5
Tube (D)
6
Earth Terminal
7
Noise Suppressor
8
Connector (50091)
9
Tapping Screw (W/Flange)
D4
×
20
10
Name Plate
11
HITACHI Label
12
Carbon Brush
13
Brush Holder
14
Cord Armor
15
Cord
16
Cord Clip
17
Tapping Screw (W/Flange)
D4
×
16
18
Plate Nut
19
Hex. Socket Hd. Bolt M4
×
8
20
Base
21
Guide Roller
22
Base Locker
23
Hex. Socket Hd. Bolt M4
×
16
24
Metal
25
Plunger
26
Set Ring Ass’y
27
Connecting Piece
28
Gear
29
Washer (C)
30
Holder
31
Ball Bearing
(608VVMC2EPS2L)
32
Armature
33
Ball Bearing
(626VVMC2ERPS2S)
FCJ 55
