3-1. INTRODUCTION This section provides explanations of all controls, along
with operating procedures and daily maintenance. Read the
Introduction, Installation and Operation Sections before
operating the unit.
To access the controls, the bottom, front panel must be
removed by pulling out on one corner of the panel and
unsnapping it from the clips.
3-2. OPERATING CONTROLS Refer to control diagrams on next page.

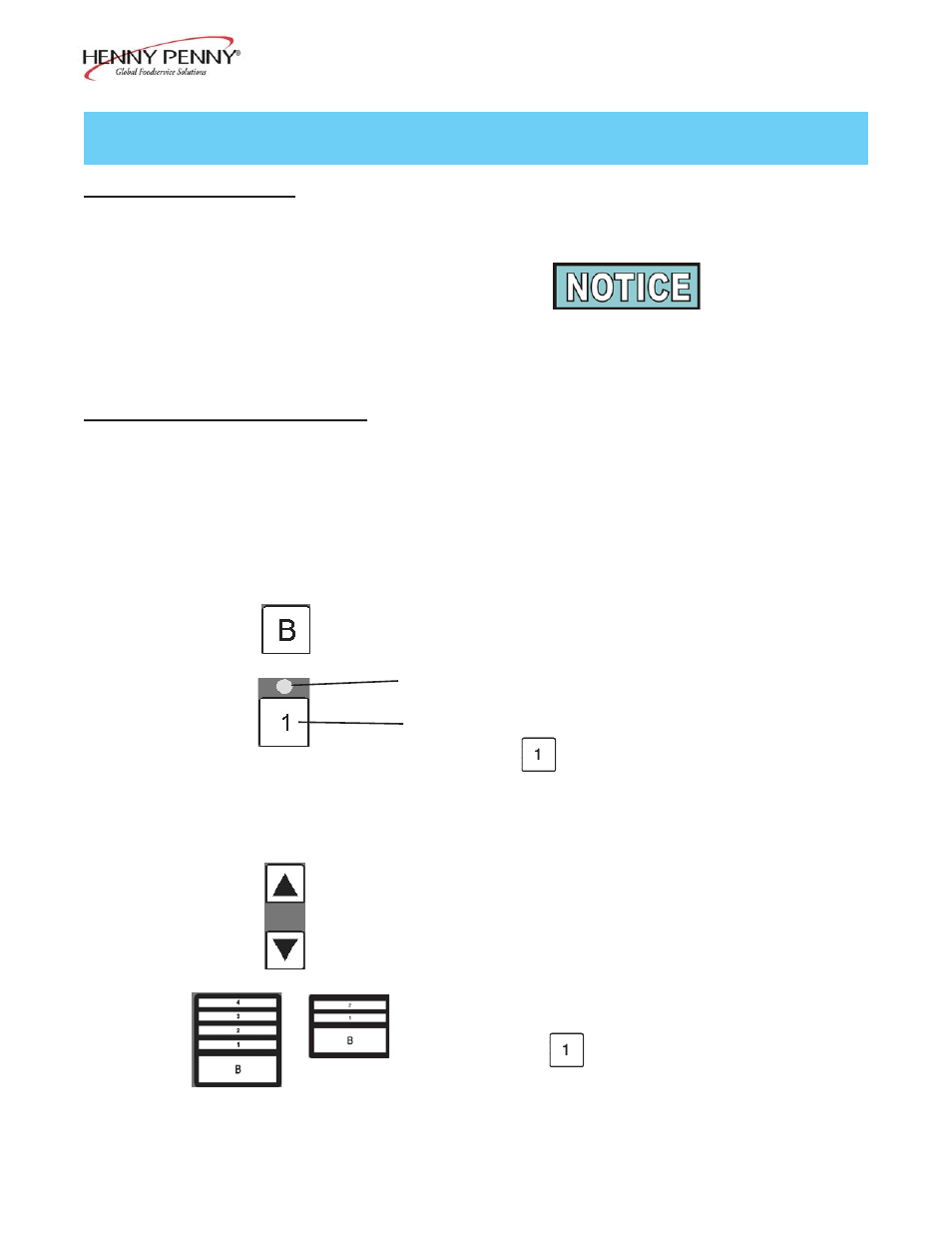

Figure Item Description Function
No No.
not _ Power Switch A rocker switch that sends electrical current to the operating
shown components and lights when turned on
3-1 1 Digital Display Shows the cabinet temperature, error codes and the selections
in the Program Modes
3-1 2 Press to set the base heat value and to toggle through the
Program Mode
3-1 3 Lights when the heat is on for that particular shelf
Press and hold to set the corresponding shelf heat value; ex:
press and hold to set the heat value of the bottom shelf;
the shelf buttons, 1 to 4, are also used in the Special Program
Mode to turn on and off the heat outputs for each shelf
3-1 4 Used to set the heat values of the shelves and base; press and
hold, while turning on power switch to enter the Special Program
Mode; used in Special Program Mode to turn off and on heat
outputs
3-1 5 or A diagram showing which button controls which shelf;
ex: press and hold to set the bottom shelf heat value
SECTION 3. OPERATION
