Heartland 3530 - Manual (Page 10)

Section 1: Set Up and Assembly
7
Clearances
• Minimum distance between the range and a side wall above the cooking top surface is 6” (see dim "O" in Table 2
below)
Electrical requirements:
• Electrical hookup must be done by a licenced electrician
• 240 Volts 60Hz 4.1 kW three prong plug for U.S. and four prong for Canadian installations. (5 ft-1.5 m power cord
included) New installations for the U.S. may require a four prong plug, please confirm prior to ordering.
Gas Requirements:
• Gas hook-up must be done by a licensed gas fitter.
• Pressure requirements: Natural gas: 6” W.C. (min); LP gas: 11” W.C. (min)
• Connection: 1/2” NPT • 5/8” minimum diameter flex line.
• An accessible manual shut off valve must be installed at the appliance.
• Natural Gas/Propane Conversion kits are available - must be done by a licensed gas
fitter
Anti Tip Bracket:
bracket included
with every stove.
When properly in-
stalled, will prevent
stove from tipping
forward if downward
force is applied to
an open door.
Figure 1 Table 1
Ed g es of
coun te r top
m ust b e fin ishe d
G
H
I
J K
O
cupb
m us
26” oard depth
t not exceed
L
M
P
Q
R
S
S
1
N
G as Inle t
A nti-tip
bra cke t
T
Note: If range must stand
beside a refrigerator, it is
important for proper air
circulation.There must be at
least 5” (125 mm) of space
between the two appliances.
Table 2
Figure 2
Dim 30" Legacy
A 1
28 3/4" (73cm)
to front of stove
A 2
31 1/2" (80cm)
to edge of oven door handle
B 36 1/8" (92cm)
C 29 3/4" (76cm)
D 17 1/2" (45cm)
E 1 standard 42 1/8" (106cm)
E 2 low profile: 38" (97cm)
E 3
high back w/shelf:
56 1/8" (143cm)

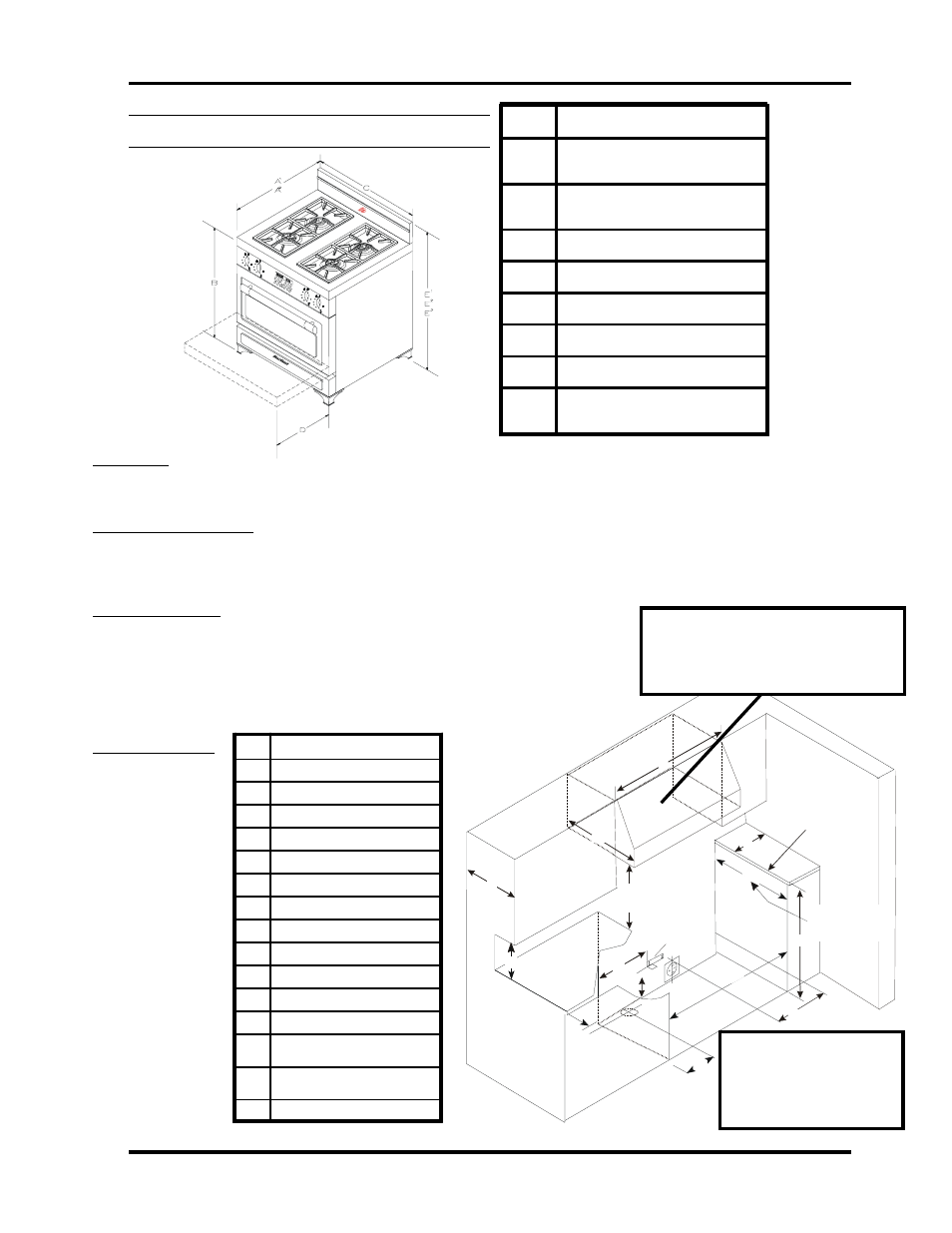

Clearance Diagrams - 30” Legacy
Dim 30" Legacy
G Maximum 26" (66cm)
H 36" (92.5cm)
I 10" (25cm)
J 30 3/4" (78cm)
K 5 5/8"(14.5cm)
L 2" (5cm)
M 15" (38cm)
N 10" (51cm)
O 6" (15cm) min left and right side
P 13" (33cm)
Q SPECIFY WIDTH OF HOOD
R 24" (61 cm)
S
30" min to 36" max (76-92cm)
for standard and high back guard
S 1
30" min to 32" max (76-82cm)
for low profile back guard only
T 18" (45cm)
*
*U.S. models only: J=30 1/4”
For proper performance a 450 CFM vent hood
is required on all 30" Legacy ranges to en-
sure adequate and proper ventilation. For su-
perior ventilation we recommend using a 36”
hood, however a 30” hood is adequate.
