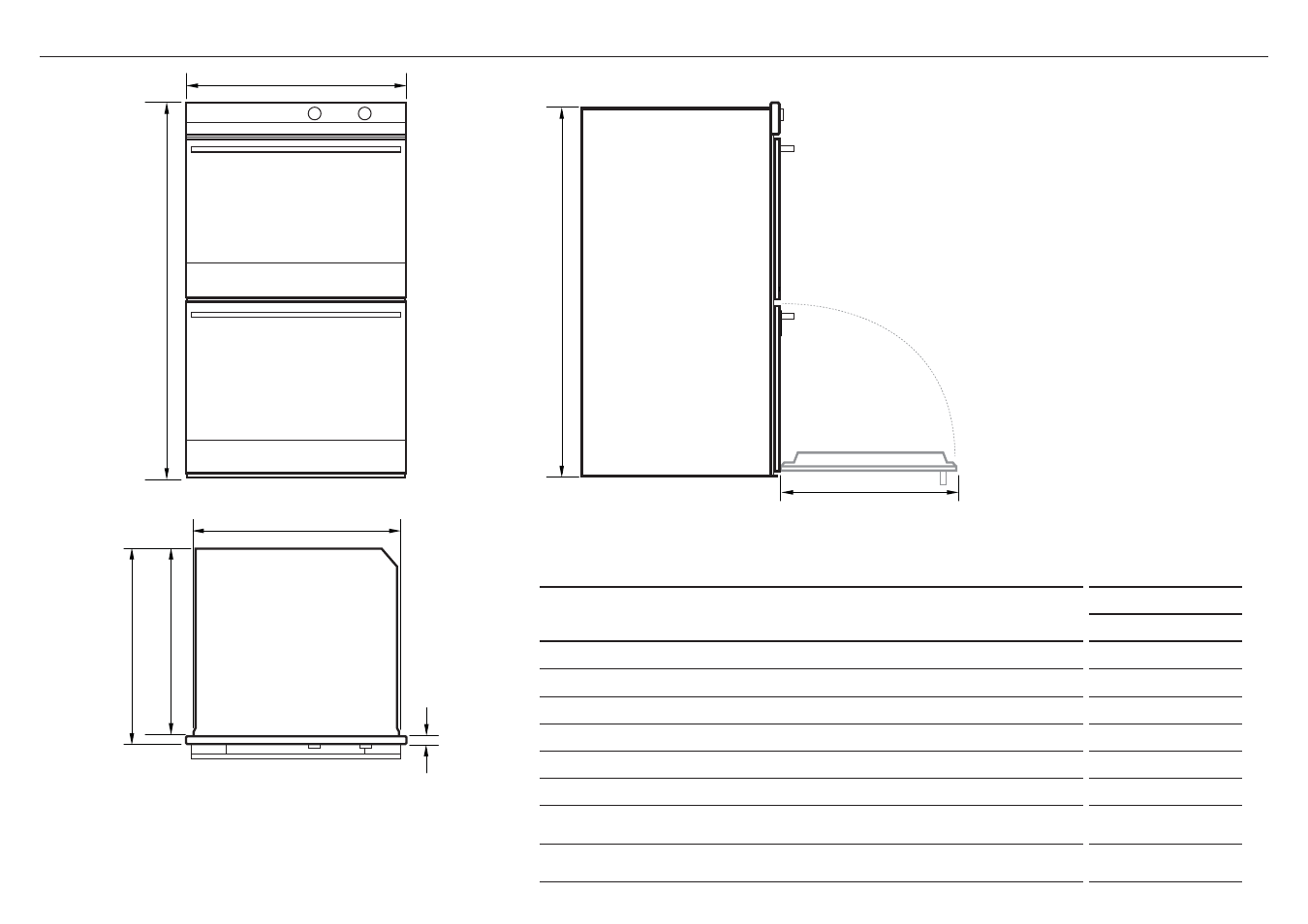

PRODUCT DIMENSIONS - DOUBLE OVENS
FRONT
TOP
SIDE
PRODUCT DIMENSIONS
OB30D MODELS
INCHES (MM)
A Overall height of product 48 1/2” (1232)
B Overall width of product 29 15/16” (760)
C Overall depth of product ( excluding handle and dials) 23 15/16” (608)
D Height of chassis 47 15/16” (1218)
E Width of chassis 28 5/16” (720)
F Depth of chassis 22 3/8” (569)
G Depth of oven frame and control panel
(=distance between front of chassis and front of oven door, excl. knobs) 1 1/2” (39)
H Depth of oven door when fully open
(measured from front of control panel) 20 7/8” (530)
