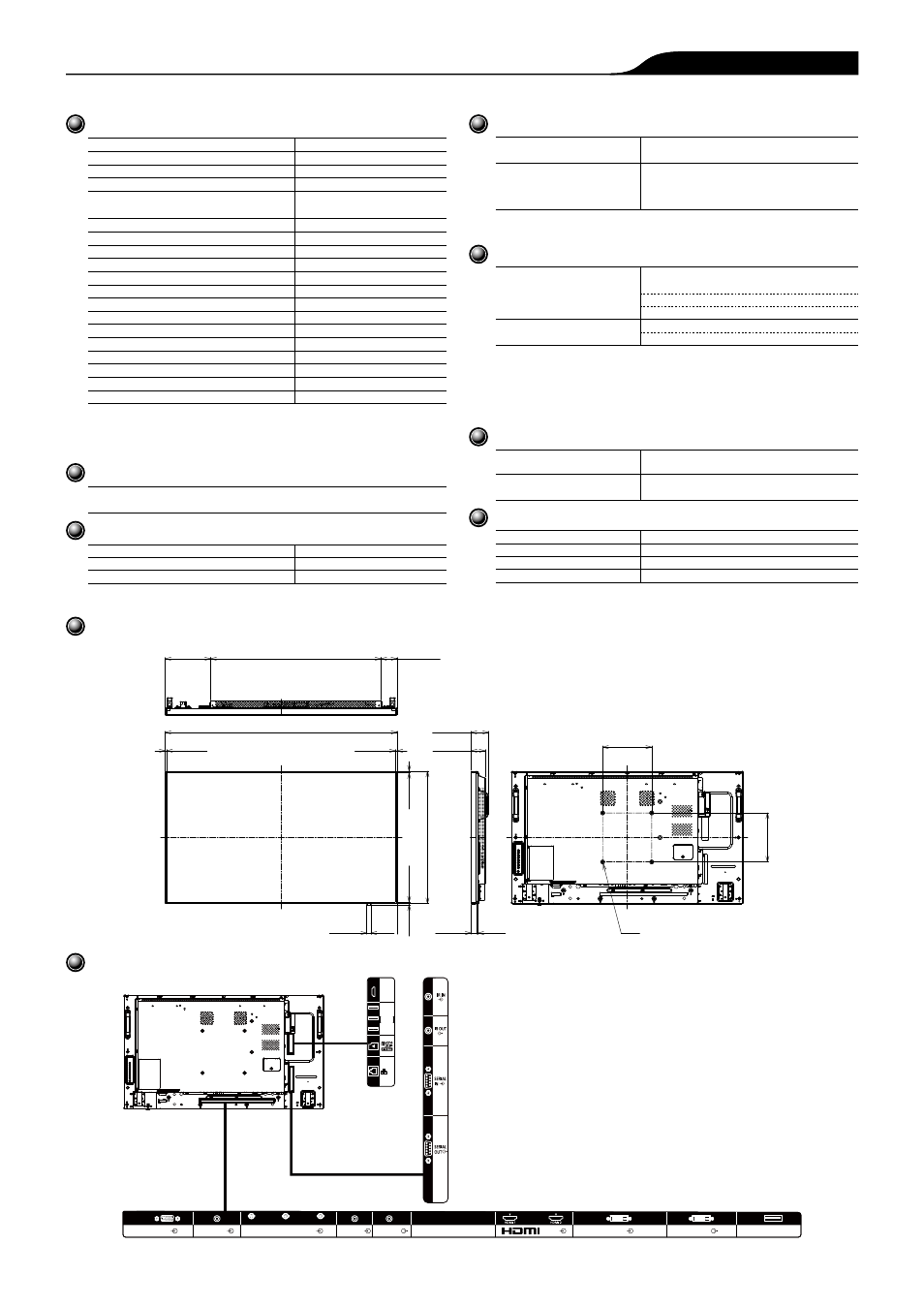

Panasonic TH-42AF1U 42"-Class Full HD Signage Display with Android-Based OpenPort Platform (Black) - Manual (Page 2)

© Panasonic Corporation 2016 2/5 42AF1U_PKH_01_15/02/2016
42-inch Class FULL HD LCD Display
TH-42AF1U
INSTALLATION REQUIREMENT
Orientation Landscape/Portrait (Angle adjustment
0-45 degrees for both left and right)
Tilting Angle 0-45 degrees forward/backward with
landscape/portrait setting
(Angle adjustment is not possible for
forward/backward tilting installation.)
* Please contact your sales representative with regard to the tilt angle
before installation
.
ENVIRONMENTAL
Operating Environment
Temperature
: 32 °F to 104 °F (0 ℃ to 40 ℃ ) *1
: 32 °F to 95 °F (0 ℃ to 35 ℃ ) *2
Humidity : 20% to 80% (No condensation)
Altitude
: 0 to 9186 ft (0 to 2800 m)
Storage Environment Temperature : -4 °F to 140 °F (-20 ℃ to 60 ℃)
Humidity
: 20% to 80% (No condensation)
*1 : for up to 4593 ft (1400 m) altitude
*2 : for between 4593 ft (1400 m) and 9186 ft (2800 m) altitude
Depending on the temperature or humidity conditions, uneven
brightness may be observed. This is not a malfunction.
・ This unevenness will disappear while applying current continuously.
If not, consult the distributor.
STANDARD (CERTIFICATIONS)
SAFETY REGULATIONS UL 60950-1 2nd Edition,
CAN/CSA-C22.2 No. 60950-1-07
RADIATION REGULATIONS FCC 47 CFR, Part 15,
Subpart B Class A,ICES-003
REMOTE CONTROL TRANSMITTER
Power Requirements DC 3 V (2 x AAA Size batteries)
Operating distance approx. 23 ft (7 m)*
Weight approx. 2.2 oz (63 g) including batteries
Dimemsions (W x H x D) 1.7" x 4.1" x 0.8" (44 x 105 x 20.5 mm)
*When operated directly in front of receptor.
MAIN FEATURE
USB Media Player Yes
Fail back ＆ Fail over Yes
Data Cloning Yes
Early Warning Software compatible Yes
Multi Monitoring & Control
Software compatible
Yes
Operating Time 24h / 7d
Digital Zoom Yes
Multi Display Yes
Power ON Screen Delay Yes
1:1 Pixel mode Yes
Auto setup Yes
Screen Saver Yes
HDMI Power Management Yes
PC Power Management Yes
DVI-D Power Management Yes
Input Lock Yes
Button Lock Yes
Remote-control User Level Yes
Input Search Yes
In case of running for a long time, the moving image is recommended
to be displayed. If you display a still picture for an extended period,
the image retention might remain on the screen. However, image
retention can gradually disappear by displaying a moving images.
INCLUDED ACCESSORIES
- AC cord (79" (2.0 m)) - Remote Control - Batteries (AAA size) x 2
- Clamper x 3 - CD-ROM / User Manual - Operating instruction book
OPTIONAL ACCESSORIES
Pedestal Stand TY-ST43PE8
Early Warning Software* 1 ET-SWA100 series
Auto Display Adjustment Upgrade Kit* 2 TY-VUK10
*1 The symbol at the end of item number differs depending on the type of license.
*2 This kit responds to Ver.1.2 and later versions.
* Specifications and appearance are subject to change without notice.
DIMENSIONS Cautions: This drawing is not a scale
Units : inches (mm)
37.3(947)
0.3(6.3) 0.3(6.3)
21.3(
541)
0.3(
6.3)
0.3(
6.3)
27.4(695.3) 7.4(186) 2.6(65.7)
2.3(57)
2.9(72)
7.9(
200)
M6
7.9(200)
0.2(
4)
4.2
(106)
0.7(17) 1.0(25) 0.1(3)
CONNECTION TERMINAL
AUDIO1 IN AUDIO2 IN COMPONENT/RGB/VIDEO IN
G/Y/VIDEO B/P B /C B R/P R /C R
DVI-D IN DVI-D OUT AUDIO OUT USB PC IN AV IN
Micro-USB
USB
OpenPort
PLATFORM
LAN
