Emotiva LPA-1 Seven Channel Amplifi er
Professional 750 Watt Amplifier Features
• Audiophile quality seven channel multi-channel power amplifi er.
• Six 125 watt channels of amplifi cation (one channel is confi gurable for two channel operation)
• Low noise 1.2 KVA torrid power transformer
• Complementary, discrete power amplifi er design incorporating high current, high speed, Toshiba
power devices
• Channel status indicators for standby, operate, and fault
• Confi gurable power output as follows: 125 watts/8 ohms x 6 channels or 125 watts/8 ohms x 5
channels plus 2 x 50 watts/8 ohms x 2 channels
• Completely stable into 4 ohm loads
• Signal to Noise Ratio is greater than 100dB, unweighted ref. full output
• THD .03% at rated power, 20Hz – 20kHz
• Fully protected from all fault conditions
• Soft start circuitry
• External trigger turn on
• Soft touch power switch
• 4RU chassis w/ solid milled aluminum faceplate
• IEC power inlet, 120/230 VAC confi gurable

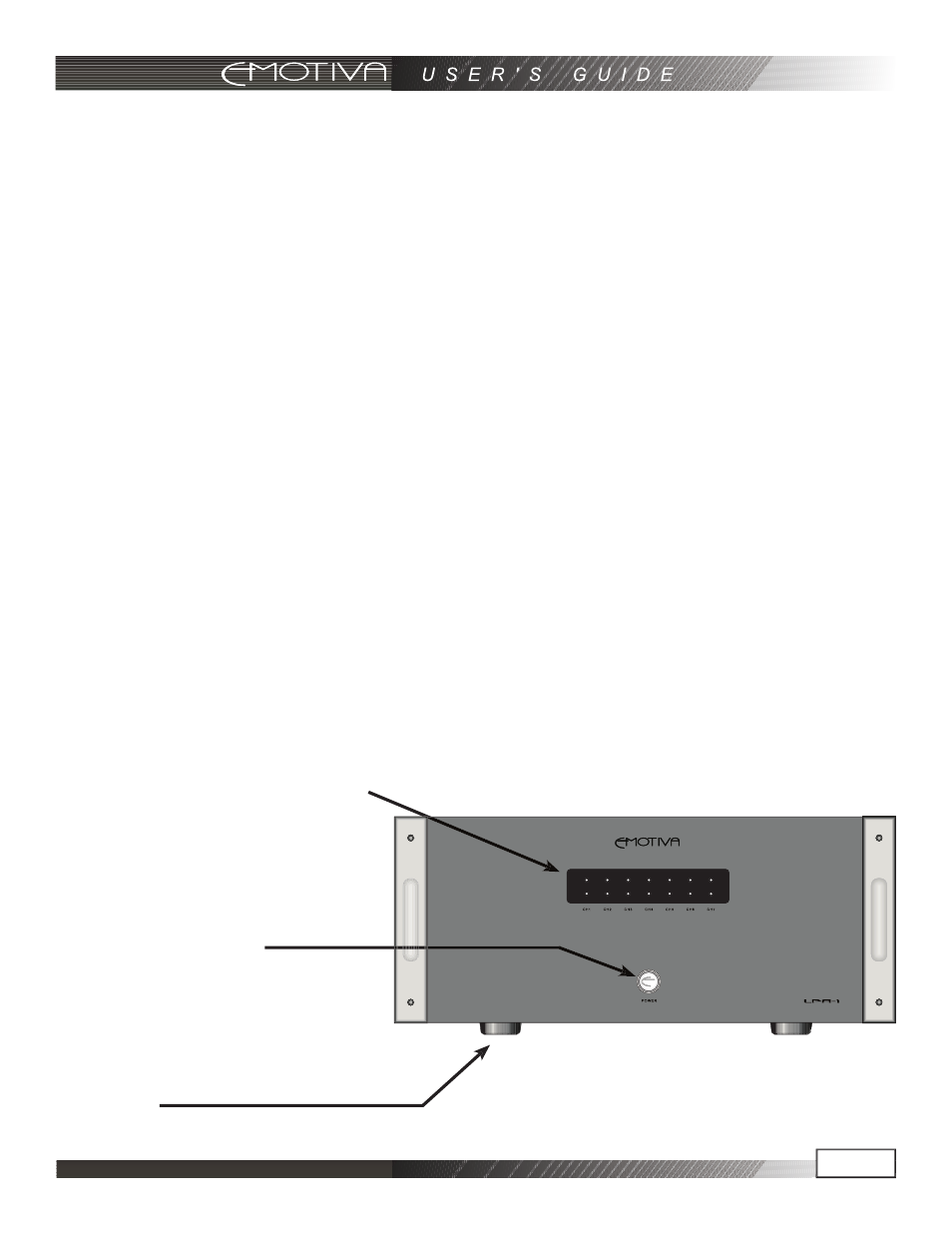

Front Panel Layout
Front Panel LED Display
The front panel display contains informative LED lighting to indicate the condition of the LPA-1.
NO LED = Amplifier is OFF
BLUE LED = Normal Operation
FLASHING RED LED = Fault Condition
See “Troubleshooting” section for details.
Front Panel Power Switch
This switch provides the ON/OFF control of the
LPA-1 from the front panel. When the unit is
off and in standby mode, the switch illuminates
yellow. Automatic switching is accomplished
with the 3.5mm trigger input on the back panel
using a 3-12VDC control signal.
Rubber Feet
These rubber feet keep the LPA-1 elevated for bottom ventilation as well as for vibration isolation.
