Setting Up the BoomBox

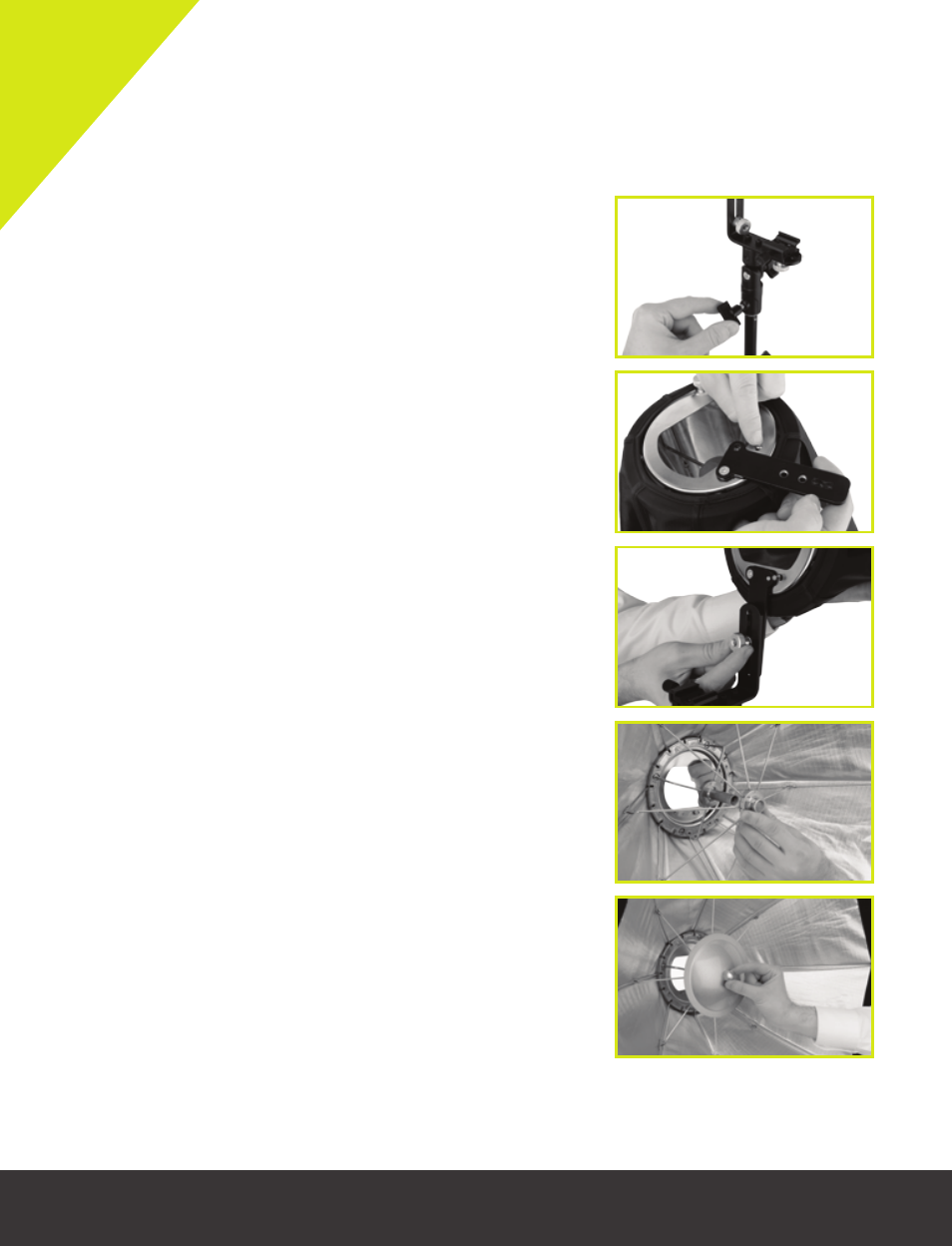

1. Place the stand mount onto a light stand’s
5/8-inch stud. Tighten the locking knob
until secure.
2. Press down the locking button, and swing
the mounting bracket into position until it
snaps into place.
3. Attach the BoomBox to the stand mount
by aligning the thumbscrew with one of
the mounting bracket holes. Tighten until
secure.
4. Open the BoomBox, and push the center
ring over the shaft until it’s it’s all the
way in, just like an umbrella. A slight
counterclockwise turn of the center ring
locks it into place.
5. Optional: Attach the deflector plate
to the shaft with the thumbscrew. The
deflector plate minimizes the hot spot at
the center of the box and diffuses the light
for beauty dish-style wraparound light.
Note: For a creative lighting option, the
deflector plate can also be mounted in reverse.
