3

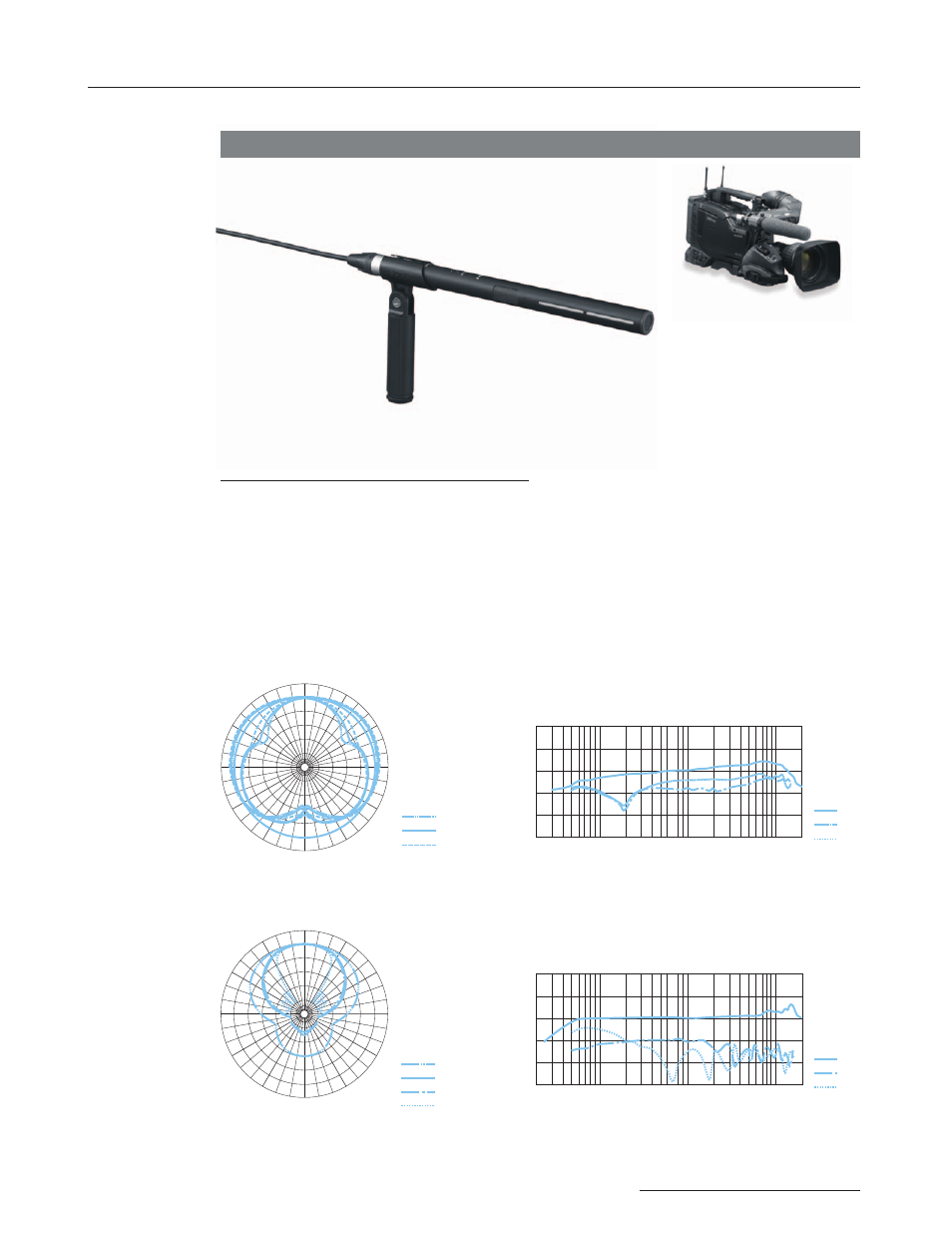

ECM-680S Stereo Shotgun
Microphone
The ECM-680S incorporates two large-diaphragm
bi-directional capsules, in Mid Side (MS)
configuration. The two signals are matrixed to
create Left and Right channels for a spacious,
natural soundstage. Or switch the mic into
Monaural mode, for highly directional pickup.
The mic can output both channels on a single
XLR-5-pin cable, convenient for either camcorder or boom pole mounting. For visual confirmation,
Stereo mode is indicated by an LED on the camera
body. Stereo/Mono mode can also be selected
from compatible Sony camcorders, including
the HDW-F900R or 790 HDCAM
® camcorders and
PDW-F800, 700, F355, F350, F335 or F330 XDCAM ® HD
camcorders.
LINEUP
Stereo / Monaural switchable, with high sensitivity and excellent sound quality
ECM-680S
The ECM-680S attached to a Sony
PDW-F800 XDCAM ® HD422
camcorder.
ECM-680S Stereo
Directivity Characteristics Frequency Responce Characteristics
0°
0dB
-20
-40
30°
60°
90°
120°
150°
180°
120°
90°
60°
30°
2 kHz
1 kHz
500 Hz
-30
-20
-10
0
10
20 100 1k 10k 20k
20
Response (dB)
Frequency (Hz)
0°
90°
180°
ECM-680S Monaural
Directivity Characteristics Frequency Responce Characteristics
1 kHz
500 Hz
4 kHz
10 kHz
-10
-20
0dB
0°
60°
90°
120°
150°
180°
150°
120°
90°
60°
30° 30°
-30
-20
-10
0
10
20 100 1k 10k 20k
20
Response (dB)
Frequency (Hz)
0°
90°
180°
