Liebert XD Cooling Modules—Liebert XDO, Liebert XDV, Liebert XDH and Liebert XDCF
31

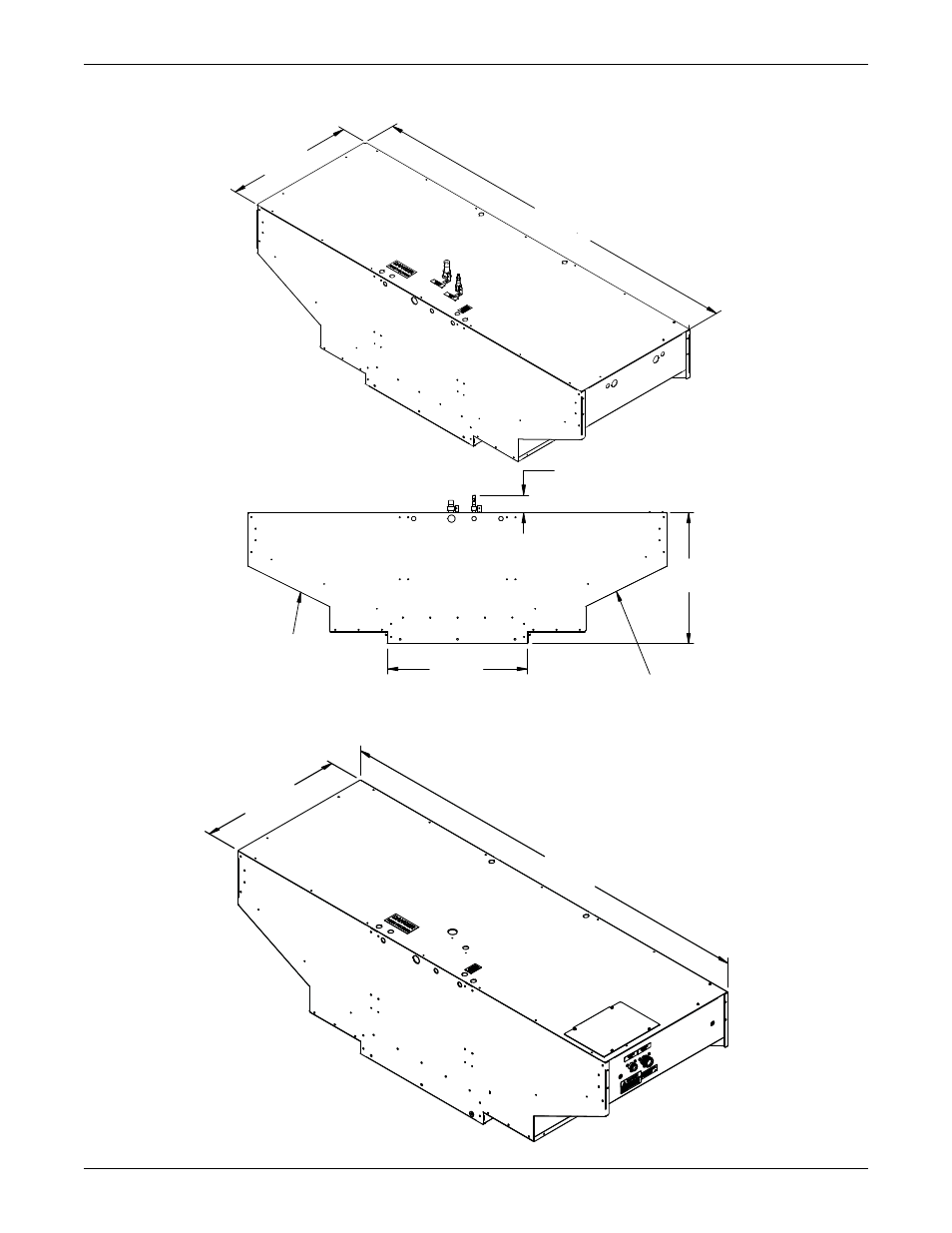

Figure 28 Dimensional data—Liebert XDO hard-piped units
Figure 29 Dimensional data—Liebert XDO with pre-charged option
24-1/8"
(613mm)
72-1/4"
(1835mm)
BACK
LEFT SIDE
OF XDO
FRONT OF XDO
Do Not Lift Here
Do Not Lift Here
FRONT OF XDO
RIGHT SIDE
OF XDO
24-1/4"
(616mm)
3"
(76mm)
22-1/2"
(572mm)
Rear of XDO
Left Side
of XDO
72-1/4"
(1835mm)
24-1/8"
(613mm)
Front of XDO
Right Side of XDO
