Tters (see figure a-9) – Emerson Network Router User Manual

Page 76

ProLink

II Software for Micro Motion

Transmitters

Transmitter Terminal Reference

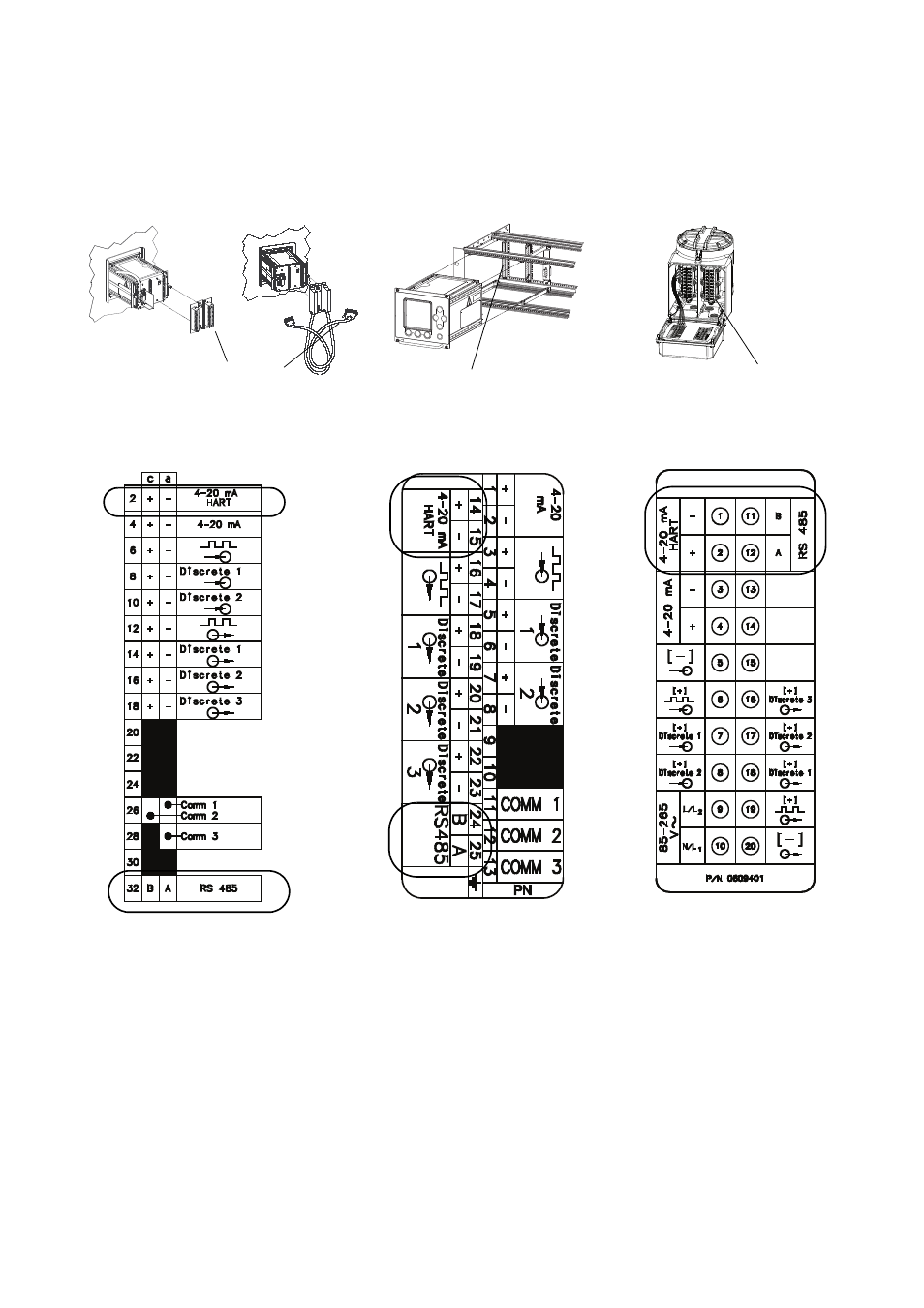

Figure A-9

Series 3000 transmitters

Series 3000 panel-mount

Series 3000 rack-mount

Series 3000 field-mount

Input/output wiring terminals

Card for Model 3300 or 3500 with

screw-type or solder-tail terminals

Label for Model 3300 or 3500

with I/O cables

Label for Model 3350

or 3700
