- 2 -

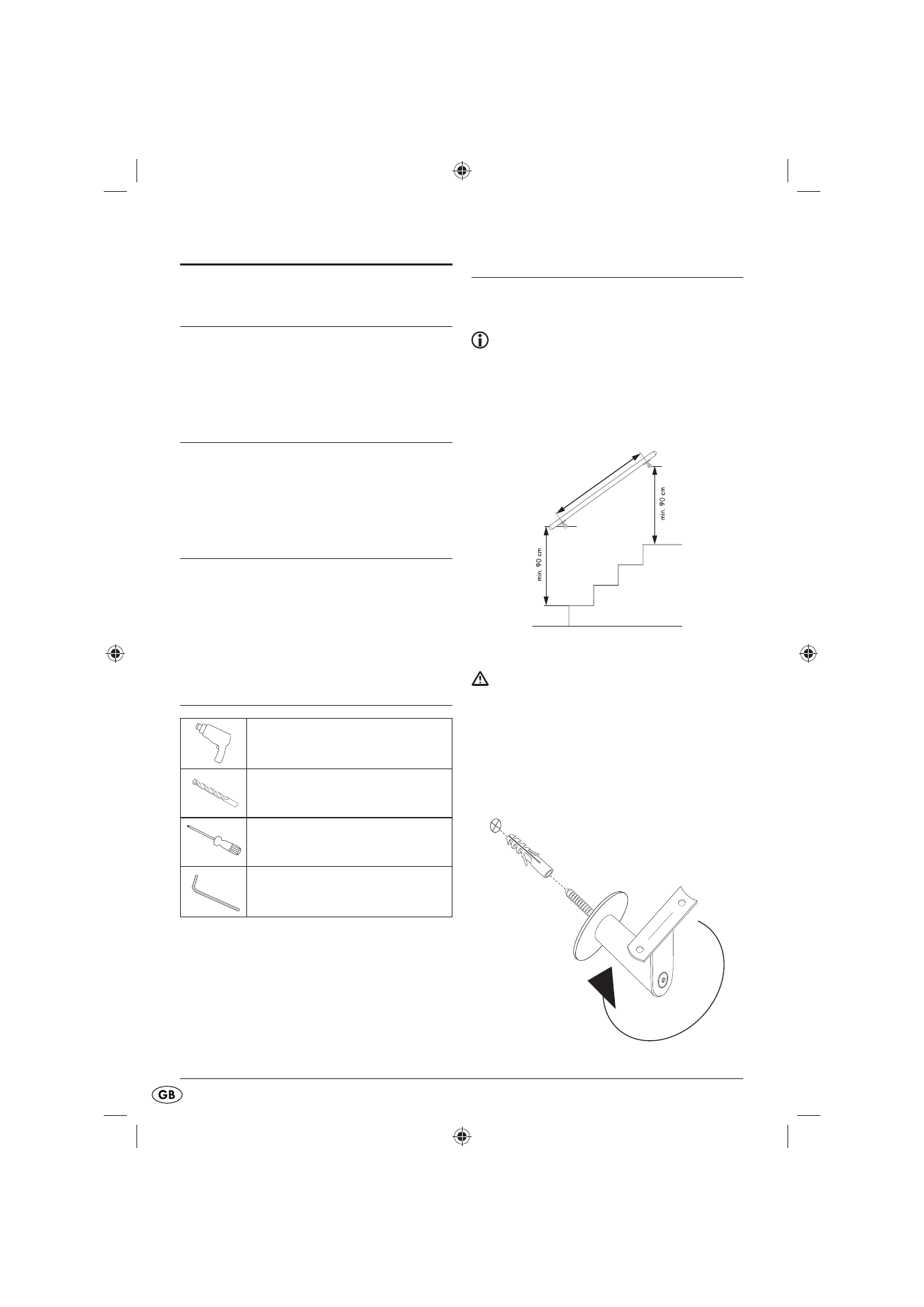

HANDRAIL SET LHE 150 A1
Intended use
This handrail serves as a holding and guiding
opportunity when climbing stairs.
Assembly in commercially or publicly used buildings
is considered to be improper use.
Technical Data
Length: approx. 155 cm
(with fi tted end caps)
Diameter: approx. 4.2 cm
Weight : approx. 2 kg
Items supplied
1 x Handrail
2 x End caps (pre-assembled)
2 x Ball ring holders
2 x S12 Wall plugs
2 x Hanger bolts M8 x 70
4 x Sunken-head screws M5 x 8
Assembly material required
Drill
Drill bit 12 mm
Crosshead screwdriver
Allen key SW4
Assembly
Unpack the individual items, check that all items as
listed are available and they are undamaged.
Note:
As per DIN 18065, a handrail must be
at least 90 cm high.
The measurement is taken at the step front edge.
1. Measure the minimum height for the handrail
from the step front edge and mark the two
boreholes.
ca. 125 cm
Fig. Handrail minimum height
Attention:
The supplied wallplugs are suitable
only for an attachment being made to a concrete or
brick wall. Please be sure to check your masonry for
its suitability for the wallplugs before carrying out the
attachment. If in doubt, consult a specialist.
2. Drill the holes with a 12 mm drill and insert the
plugs into them.
3. Screw the ball ring holders to the wall.
Fig. Assembly of the ball ring holders
