Connecting an Amplifier (ZONE 2)

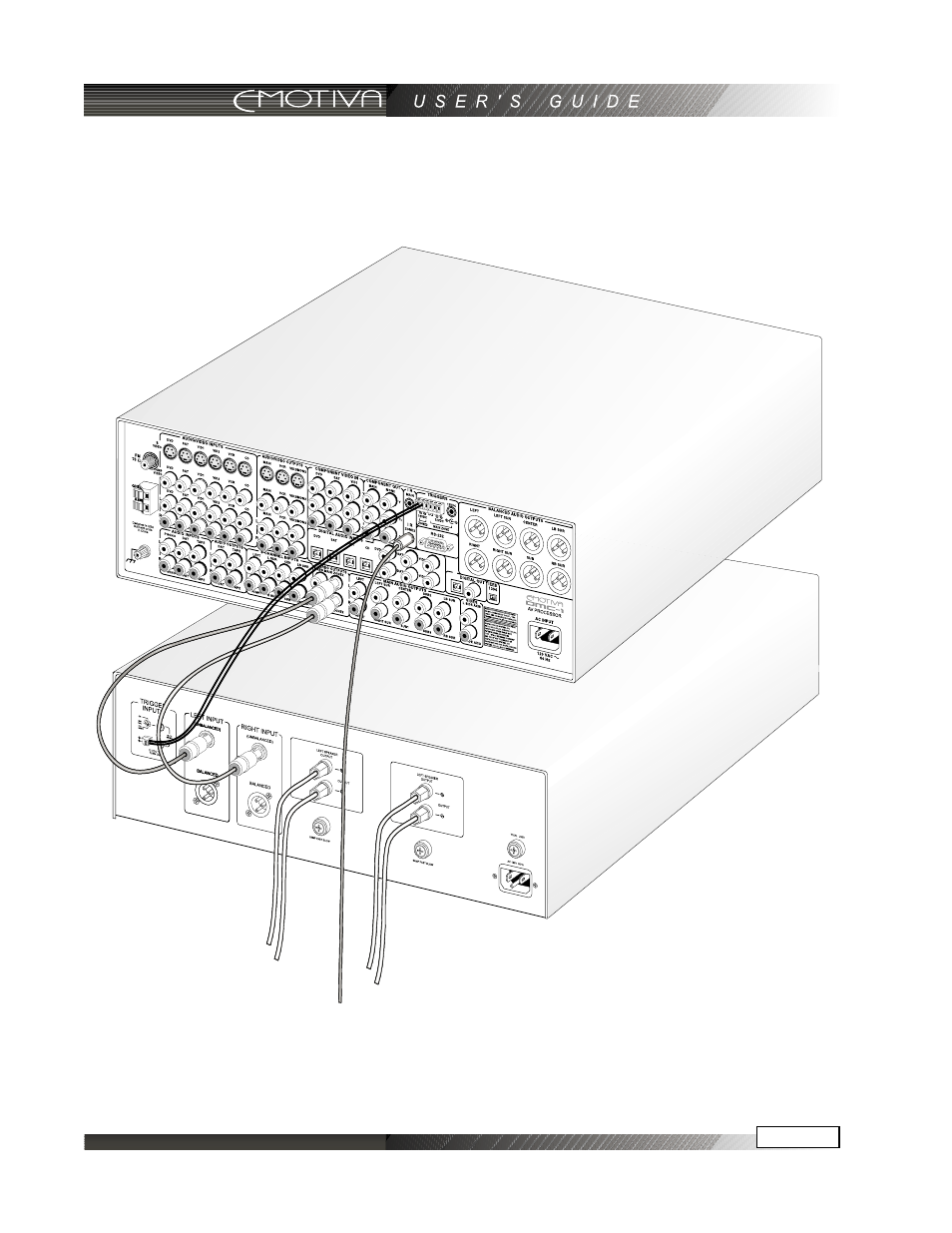

This configuration shows the ZONE 2 connections to a 2-channel amplifier. The output is a left and
right RCA connection. Zone 2 does not have the option of balanced XLR connections. Also note the
connection of the 12 VDC trigger to turn the amplifier on.
