31-DVIE33
17
Instructions for use with Archgard vertical termination cap. Part # 999-INS-TK
Install the termination cap being sure to provide sufficient space (around and on top) so as not to impede the flow of air, both
into and out of the cap. This cap is only to be used for non combustible installations. Do not recess into the top of the chim-
ney.
1. Mark each end of one liner with “Air Intake”.
2. Mark each end of the second liner with “Exhaust”.
3. Pull the liner through the chimney.
4. Install the flashing.
5. Seal and attach the liner marked “Air Intake” to the vent terminal pipe marked “Air Intake” with the collar clamp provided.
6. Seal and attach the liner marked “Exhaust” to the vent terminal pipe marked “Exhaust” with the collar clamp provided.
7. Seal and attach the end of the flex marked “Air Intake” to the collar marked “Air Intake” on the appliance with the collar clamp
provided with the unit.
8. Install exhaust vent restrictors provided with the unit if required. Seal and attach the end of the flex marked “Exhaust” to
the collar marked “Exhaust” on the appliance.
9. Caulk all joints using a high temperature sealant such as milpac. DO NOT USE SILICONE SEALANTS. Use of silicon sealants
voids the warranty of the pilot assembly.
NOTE: The vertical termination cap must be sealed to the liner with suitable high temperature sealant, such as milpac and with the hose
clamps fasteners provided. DO NOT USE SILICONE SEALANTS (Use of silicon sealants voids the warranty of the pilot assem-
bly) The liners must form a complete connection from the appliance flue collars to the vertical termination cap.

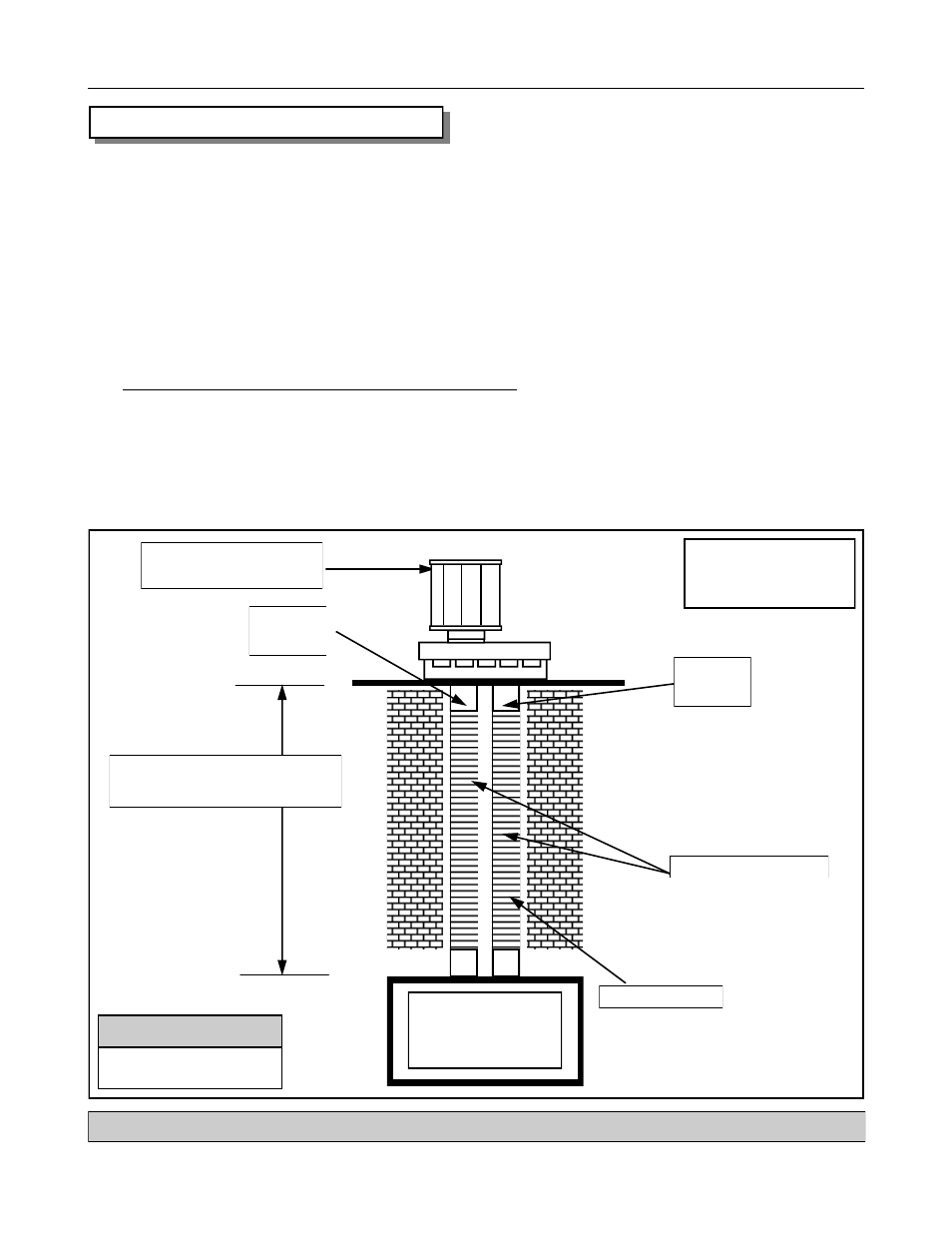

VENTING INSTRUCTIONS 999-INS-TK
The minimum flue (chimney) size required to run the two 3” (76 mm) is 4” x7” (100 mm X 178 mm)
Front view of
DV Insert
Exhaust
Collar
Air Intake
Collar
3” (76 mm) Flex Liner
Fresh Air Intake
Min. vent height 10’(2.54 M)
Max. vent height 40’ (12.2 M)
Vertical Termination cap
Part # 999-INS-TK
N O T E
Seal and secure liners on unit
and at roof termination
Vent Restrictor may be
needed when operating
with a vent over 18’ (5.5m)
See next page
