Delta Electronics FFB0612UHE - Manual

89
60 x 60 x 38 MM SERIES
PFB

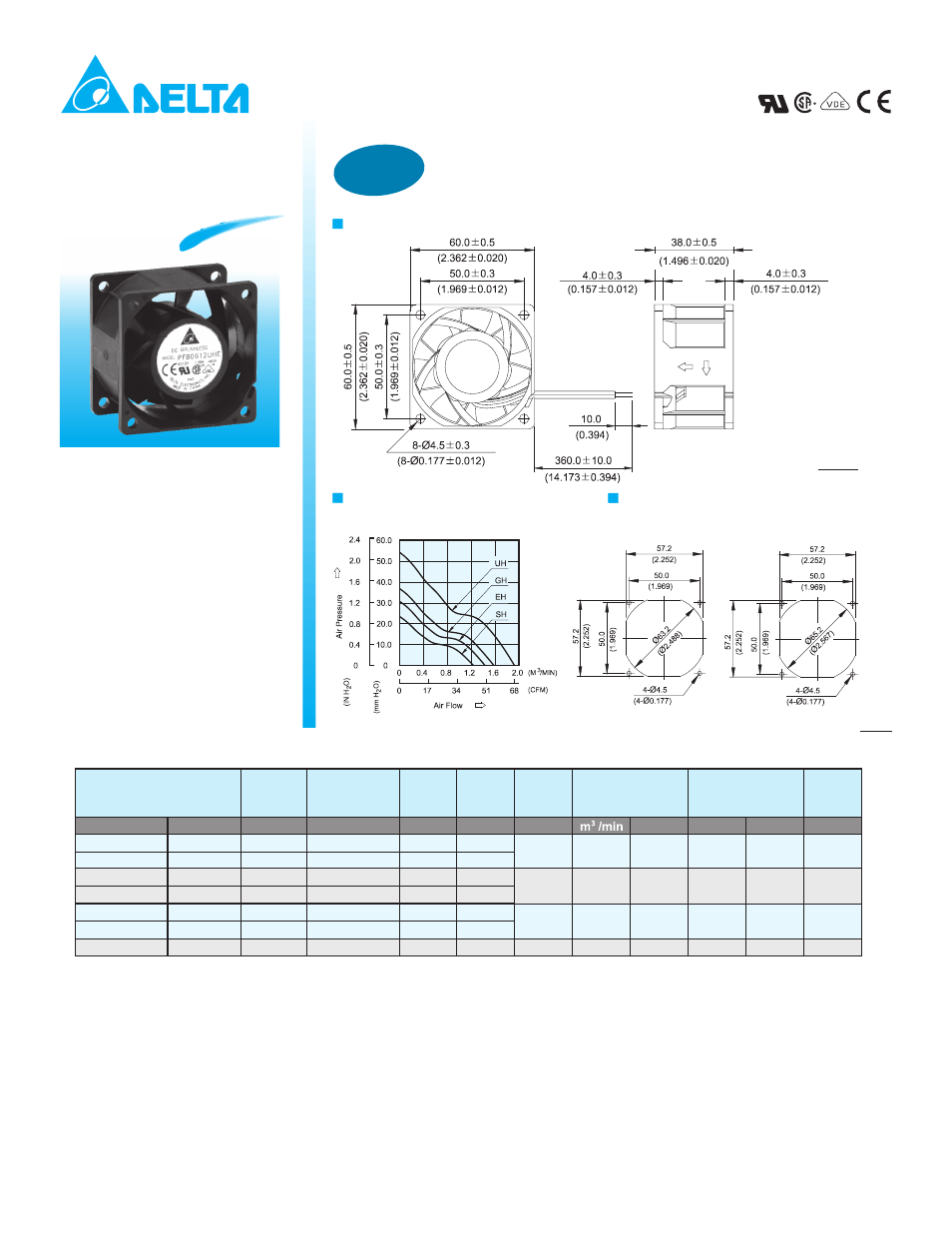

DIMENSIONS DRAWING
P & Q CURVE (AT RATED VOLTAGE) MOUNTING PANEL CUTOUT Bearing Type
Ball Bearings
Material
Impeller & Frame : Plastic (UL 94V-0)
Lead Wires :
UL 1007 AWG #24 OR Equivalent
Red Wire Positive (+)
Black Wire Negative (-)
Weight : 130g (4.59 oz) *
*
*
UNIT:
(INCH)
mm
mm
(INCH)
UNIT:
http://www.deltaww.com
*
OUTLET SIDE INLET SIDE
* Function type is optional.
The max. air flow and the speed are measured in free air ; max. air pressure is measured at zero air flow.
Noise is measured in anechoic chamber in free air, one meter from intake side.
All readings are typical values at rated voltage.
Specifications are subject to change without notice. *
*
*
*
LABEL
New
PFB0612/24XE
Operating
Voltage
Range
MODEL
Rated
Voltage
Maximum
Air Flow
Speed
Maximum
Air Pressure
Noise
PART NO. FUNCTION VDC VDC Amp Watt R.P.M. CFM mmH O IN H O dB-A
2 2
PFB0612SHE -R00 / -F00 12 7.0 to 13.2 0.48 5.76
8000 1.234 43.57 23.32 0.918 50.5
PFB0624SHE -R00 / -F00 24 14.0 to 26.4 0.28 6.72
PFB0612EHE -R00 / -F00 12 7.0 to 13.2 0.63 7.56
9000 1.428 50.43 30.56 1.203 54.0
PFB0624EHE -R00 / -F00 24 14.0 to 26.4 0.36 8.64
PFB0612GHE -R00 / -F00 12 7.0 to 13.2 0.85 10.20
10000 1.575 55.62 36.68 1.444 57.5
PFB0624GHE -R00 / -F00 24 14.0 to 26.4 0.48 11.52
PFB0612UHE -R00 / -F00 12 7.0 to 13.2 1.40 16.80 12000 1.922 67.85 54.10 2.129 61.5
Input
Power
Input
Current
