13
SETUPS
To set a Master
monitor as
System Controller
the TC Link
button on rear
panel MUST be in
out-position.
5.3 Digital Setup

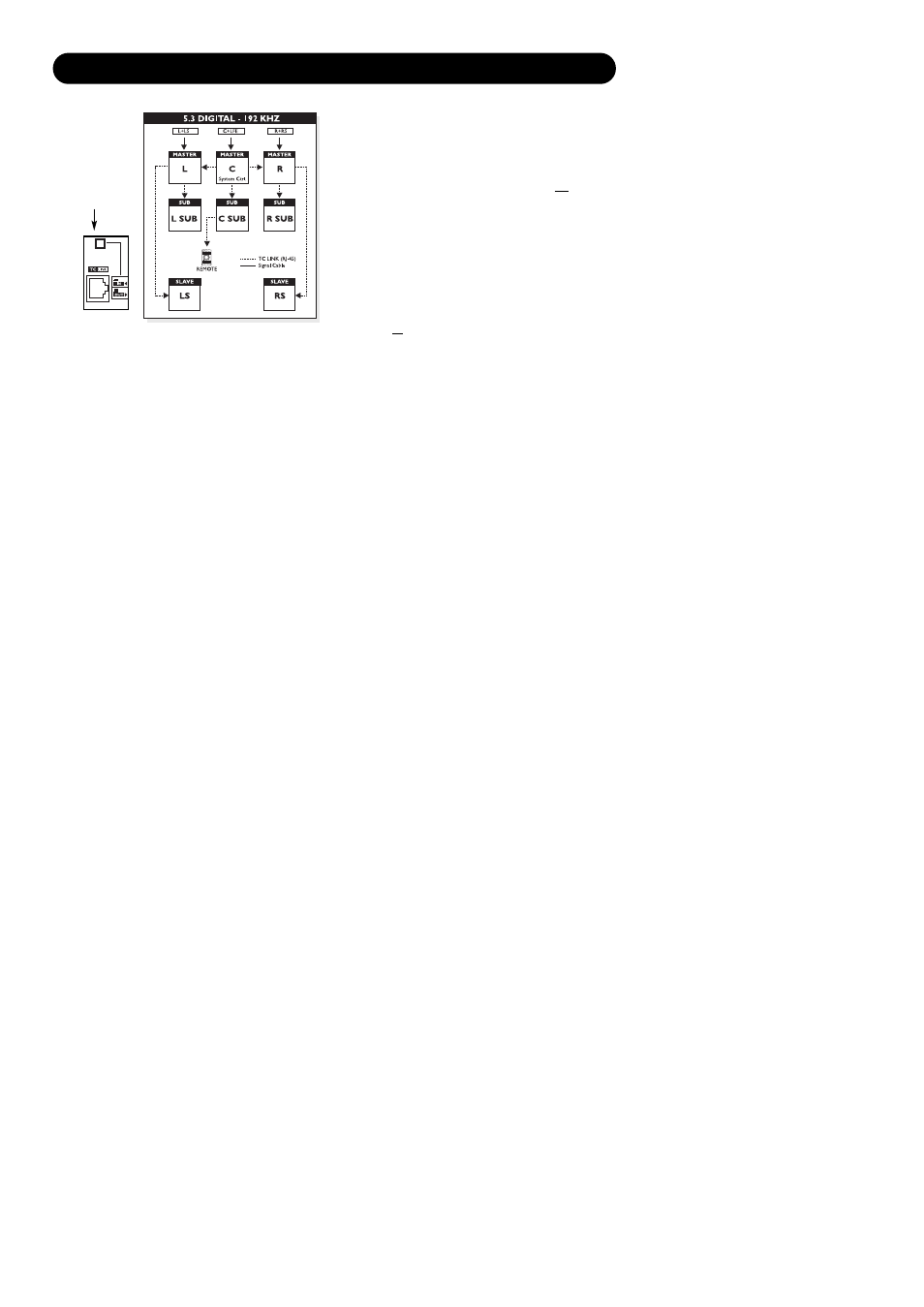

This illustration shows how to connect a 5.3 Digital
setup with Bass management as an option. The setup
requires three Master monitors with the optional Digital
AES/EBU I/O card installed, two Slave monitors (or
Masters set as Slave) and three Subs.
• Center is set as System Controller by leaving out the TC
Link button on the rear panel.
• Left monitor receives both Left and Left Surround signal.
The LS monitor is fed via the TC LINK RJ-45 connection
from Left to LS.
• Center monitor receives both Center and LFE signal. The
LFE monitor is fed via the TC LINK RJ-45 connection
from Center to LFE.
• Right monitor receives both Right and Right Surround
signal. The RS monitor is fed via the TC LINK RJ-45
connection from Right to RS.
• With Bass-management “off” Left and Right Subs
receives no signal.
• With Bass management “on”:
- Low frequency information from Left and LS is
extracted and fed to Left Sub.
- Low frequency information from Right and RS is
extracted and fed to Right Sub.
- Low frequency information from Center is extracted,
summed with the LFE channel and fed to Center Sub.
• The Remote, AIR Soft and AIR PC-IP can be connected
to any available TC LINK Out connection.
